Connections (1/2)
NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external
equipment’s power as this may result in a loss of image.
NOTE: Do not use an attenuating (built-in resistor) audio cable. Use an audio cable without a built-in resistor.
Using an audio cable with a built-in resistor will lower the sound level.
Before making connections:
• Turn off the device’s power before connecting it to the monitor.
• Refer to the device’s user manual for available connection types and instructions for the device.
• We recommend turning off the monitor’s main power before connecting or disconnecting a USB storage
device or a microSD memory card to avoid data corruption.
Orientation of Displays
• ME431 IR, ME501 IR & ME551 IR support landscape and portrait orientation.
NOTE: Face-up and face-down installation is not supported by ME431 IR, ME501 IR & ME551 IR.

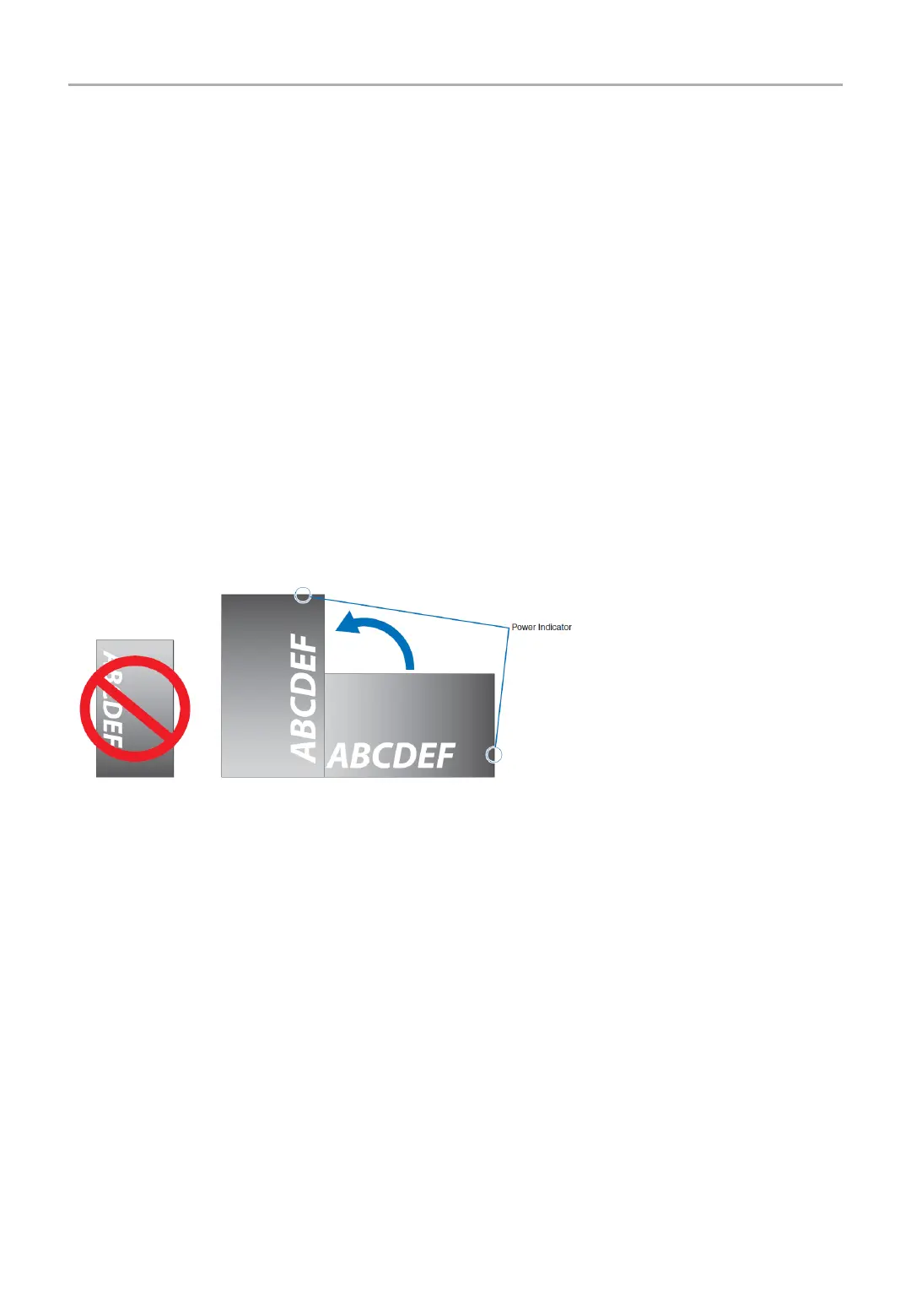

• When using the monitor in the portrait position, it should be rotated counter-clockwise so that the right side is
moved to the top and the left side is moved to the bottom. Improper ventilation may shorten the lifetime of the
monitor.
For further instructions on connections, please refer to standard user’s manual of the base model
monitor ME431, ME501 & ME551.
