CONTROL PWB ASSY
Spindle Revolving
Cabinet Bottom
Power Line Filter
Signal Cable

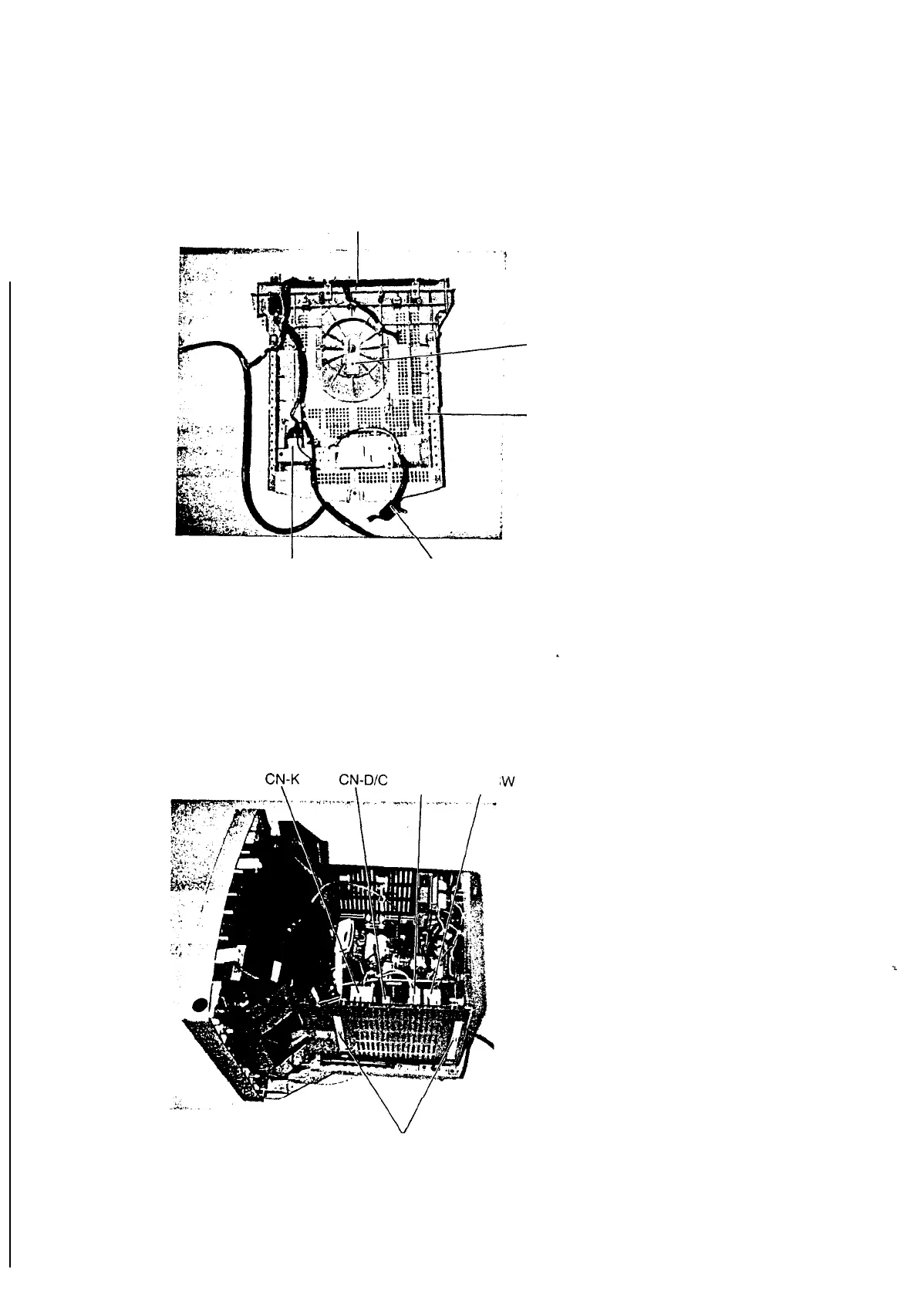

SW REG UNIT DISASSEMBLY
CN-K
Cf’fD/C CN-Z
CN-S
1.
2.
Disconnect the connectors TN-K”,
“CN-Z”, "CN-D/C"" and "CN-SW”
Remove the two screws “e” and lift up
the SW REG UNIT.
Screw “e”
