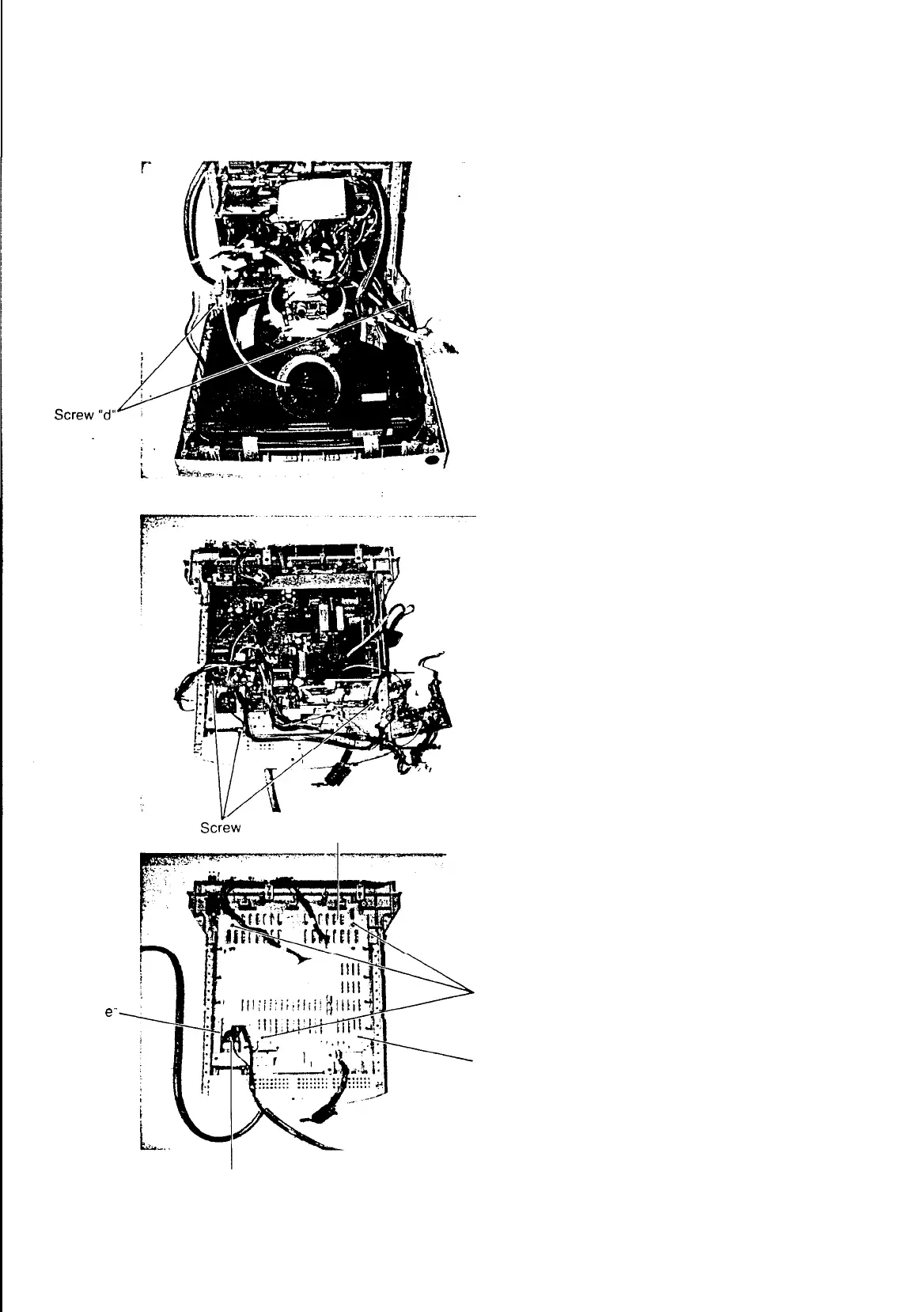

8. Turn the monitor CRT face down as
shown.
Remove the two screws “d”.
Remove the Anode cap from CRT.
Disconnect the CRT PWB ASSY.
Disconnect the connectors “CN-E”,
“CN-F”, “CN-VDY”, “CN-HDY” and
“CN-K”.
NOTE:
Carefully discharge the CRT anode
cap by shorting it to ground before
removing the anode cap.
9.
Remove the three screws
“g”.
Remove the MAIN PWB ASSY.
Screw
"
"
e,
Screw
“g”
BRACKET (BOTTOM)
10.
Screw
“k”
Screw
“i”
Remove the three screws “k”.
Remove the screw “e”.
Remove the screw
"i".
Remove the BRACKET (BOTTOM).
To Next Page
