THE METHOD FOR REMOVING THE TILT SWIVEL BASE
Spindle Revolving
Screw “a”
with Washer
1.
2.
l
FRONT

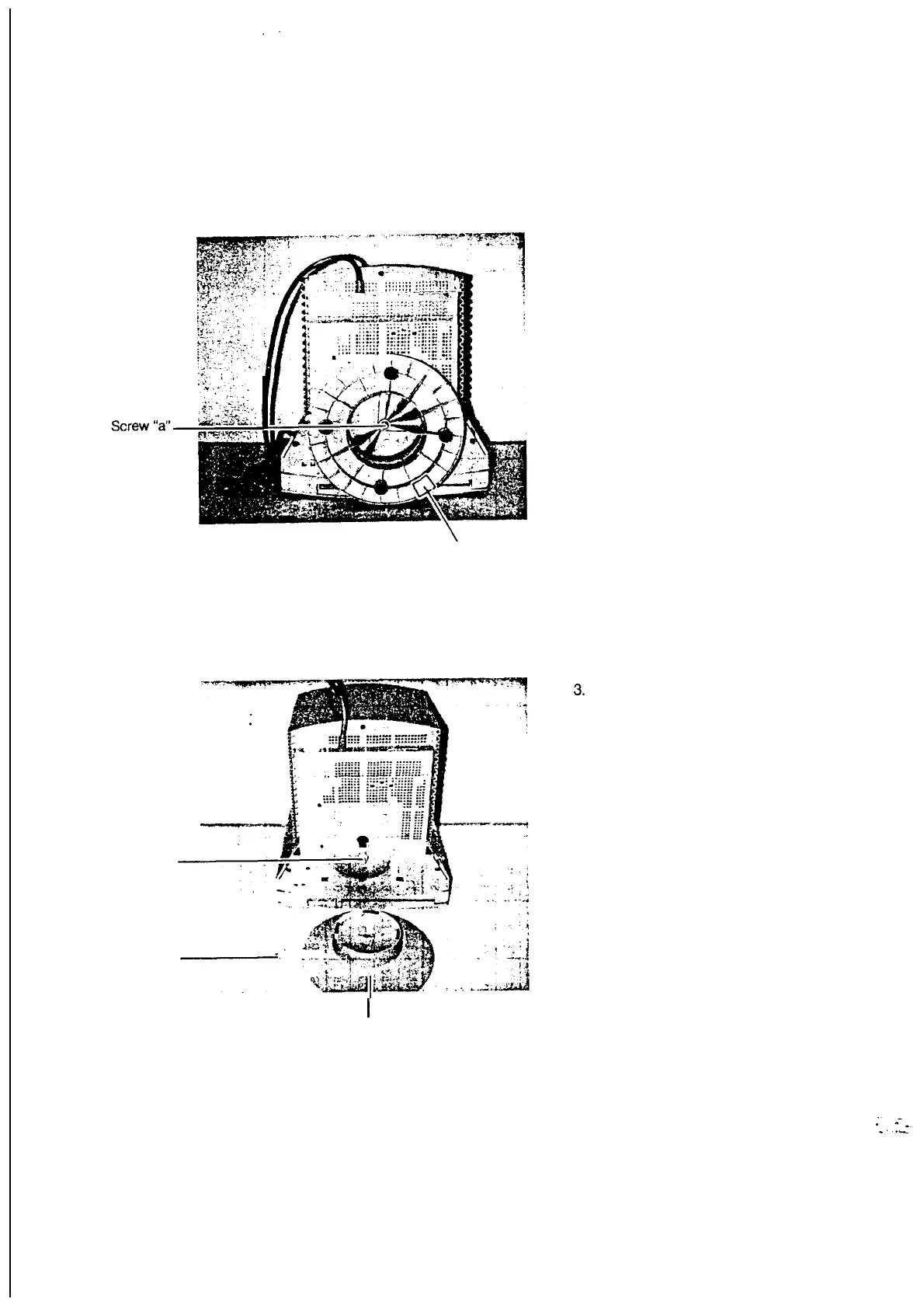

Turn the monitor CRT face down as
shown. (Top VIEW)
Remove the screw “a” with washer,
then remove the revolving stand from
the display.
Move the revolving stand so that the
“FRONT’ mark is aligned with the
cabinet side.
The removable parts consist of a dis-
play, revolving stand, spindle revolv-
ing, and screw “a” with washer as
shown.
I
Revolving stand
To Next Page
