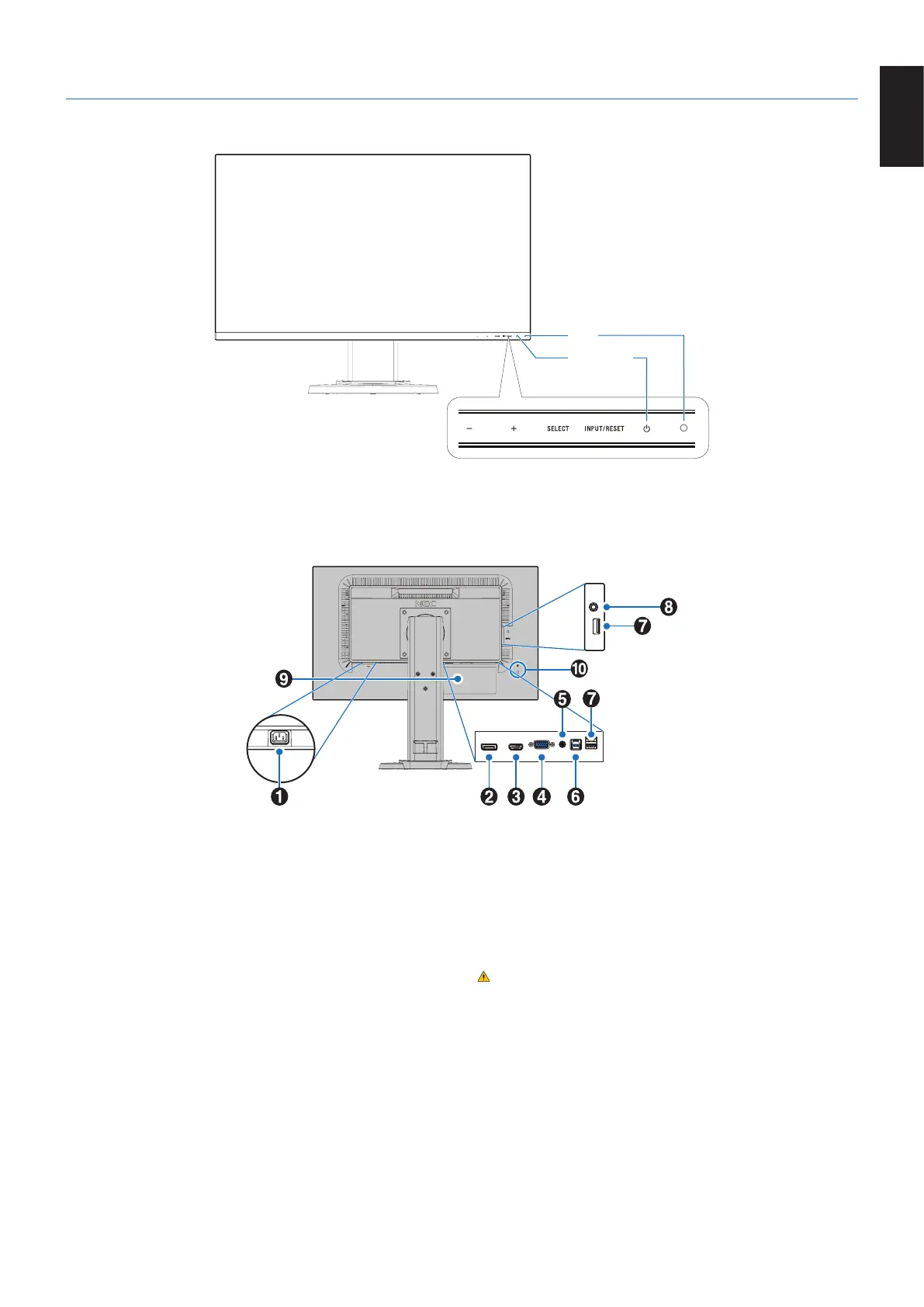

Parts Name and Functions
Control Panel
LED
Power Key
Control Keys
Refer to the Controls section. See page 15.
A AC IN Connector
Connects with the supplied power cord.
B DisplayPort IN
DisplayPort signals input.
C HDMI IN
HDMI signals input.
D VGA IN (mini D-Sub 15-pin)
Analog RGB signals input.
E Audio IN
Audio signal input from external equipment such as a
computer or player.
F USB Upstream Port (Type-B)
Connects with external equipment such as a computer.
Please use this port to control the monitor from connected
external equipment.
G USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
H Headphone Jack
Connects with headphones.
CAUTION: Do not connect headphones to the monitor
while you are wearing them. Depending on
the volume level, it may damage your ears
and cause loss of hearing.
I Rating Label
J Security Slot
Security and theft protection lock slot compatible with
Kensington cables/equipment.
For products visit Kensington’s website.
