English-10

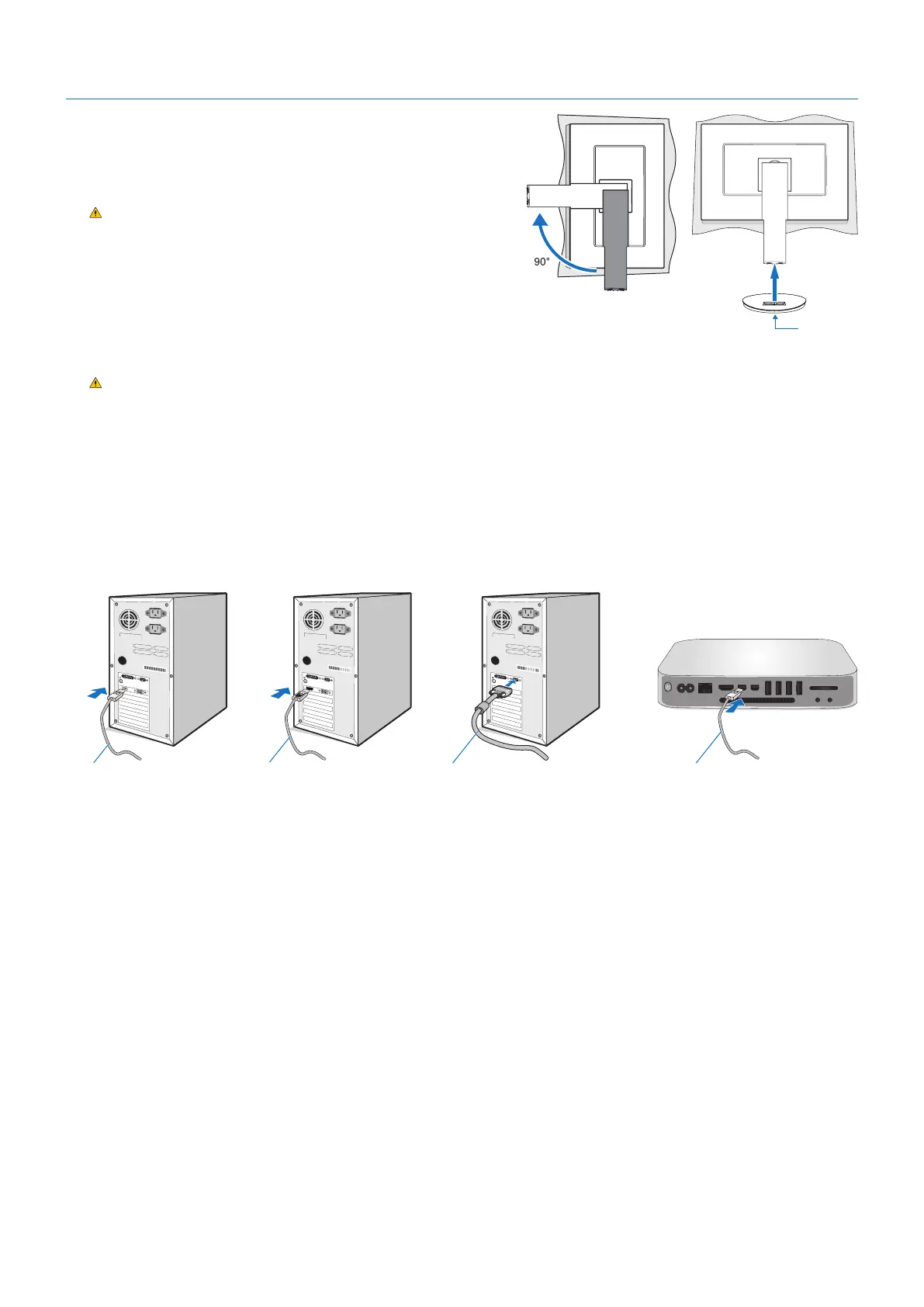

Figure 1
Figure 2
Screw
Quick Start
For box contents, please refer the printed contents sheet provided in the box.
To attach the base to the monitor stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Please rotate the monitor stand 90 degrees as shown in Figure 1.
CAUTION: Handle with care when pulling the monitor stand.
It may pinch your fingers.
3. Attach the base to the monitor stand, then tighten the screw at the
base’s bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 4) before installation.
CAUTION: Please tighten all screws.
NOTE: The accessories included will depend on the location where the LCD monitor was shipped.
1. Turn off the power for your computer.
2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.1).
For a PC with HDMI output: Connect the HDMI cable to the connector of the display card in your system (Figure A.2).
For a PC with Analog output: Connect a 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.3). Tighten all screws.
For a Mac or PC with Thunderbolt or Mini DisplayPort output: Connect a Mini DisplayPort to DisplayPort cable to the
video output connector on your system (Figure A.4).
Mini DisplayPort to DisplayPort cable
Figure A.1 Figure A.3Figure A.2
DisplayPort cable HDMI cable Mini D-Sub 15-pin signal cable
Figure A.4
NOTE: • When removing the DisplayPort cable, hold down the top button to release the lock.
• PleaseuseaHighSpeedHDMIcablewithHDMIlogo.
• PleaseuseaCertiedDisplayPortcable.
CAUTION: Use the provided specified cables with this monitor so as not to interfere with radio and television reception.
For mini D-Sub 15-pin, please use a shielded signal cable with ferrite core.
For HDMI, DisplayPort, USB and AUDIO, please use a shielded signal cable. Use of other cables and adapters
may cause interference with radio and television reception.
