English - 28

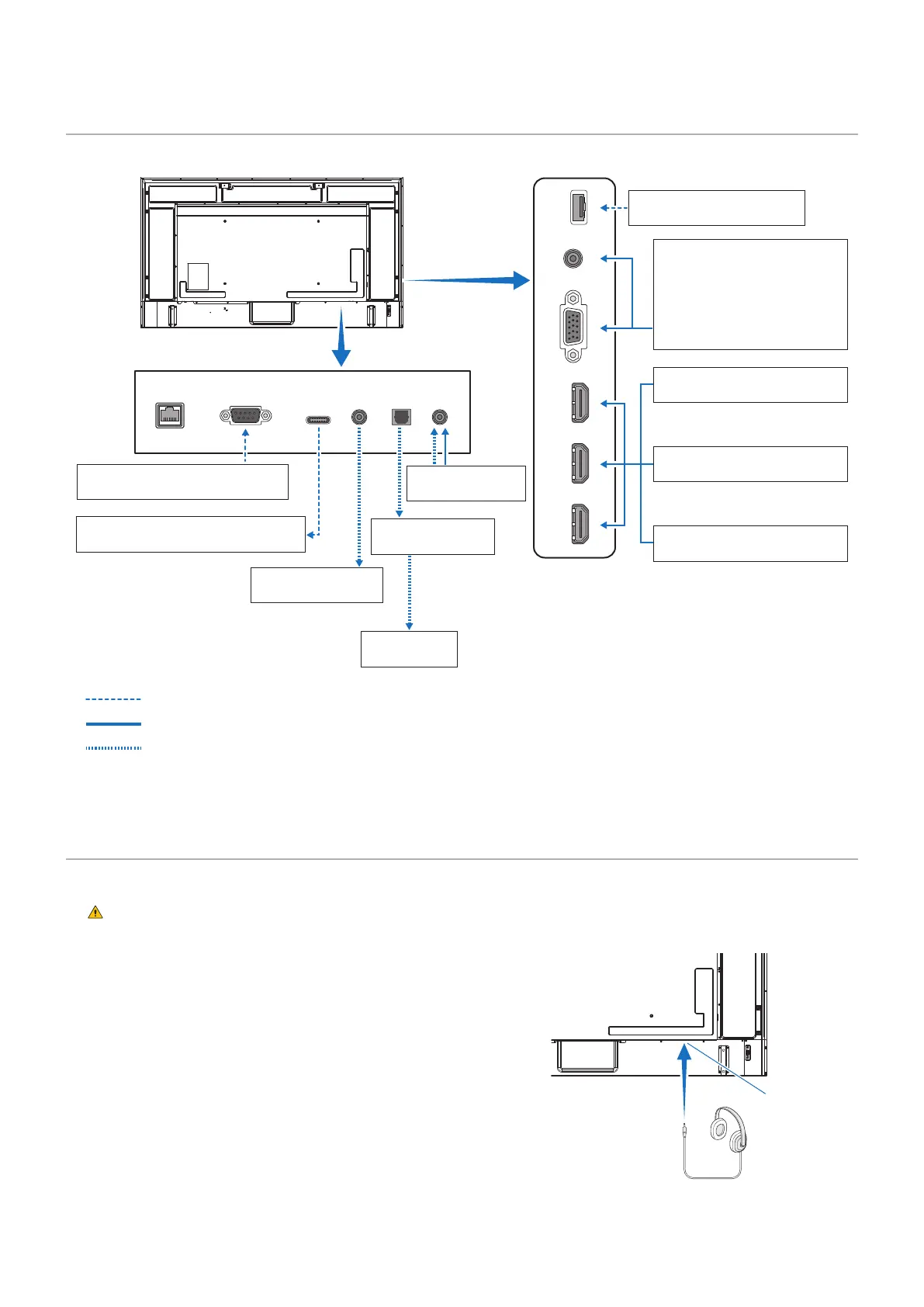

Wiring Diagram
LAN
HDMI 1 HDMI 2 HDMI 3
VGA
AUDIO IN
USB
RS-232C
HEADPHONE SPDIF OUT AV IN
POWER
SUPPLY
OUT
Computer (RS-232C)
Video player
(composite)
Computer (HDMI)
Computer (stereo mini jack)
Computer (D-sub)
Video player (stereo mini-jack)
Video player (component)
USB storage device
Video player (HDMI)
Blu-ray or DVD player (HDMI)
AV amplier
External
speakers
Headphones
Power supply to external equipment:
5 V/3 A (max)
: Other signals
: Video signal
: Audio signal
Headphones Connection
When using headphones, connect them to the HEADPHONE terminal of the monitor.
CAUTION Do not connect the headphones while wearing them.
Otherwise, your ears may be injured depending on the sound volume.
NOTE • Headphones with a stereo mini jack plug can be connected
to the monitor. If the plug of your headphones is too large
to enter the connector, buy a 6.35 mm stereo jack plug to
stereo mini jack plug adapter in your audio store.
• The sound from the speakers is muted when headphones
are connected.
• Adjustment of the volume control as well as the equalizer
to other settings than the center position may increase the
ear-/headphones output voltage and therefore the sound
pressure level.
NOTE When connecting the product to the video
output connector (component) of a video player
or another device, go to [Setup] in the OSD
menu -> [VGA Options] -> [VGA Mode], and
select [YPbPr].
HEADPHONE
terminal
To Next Page
