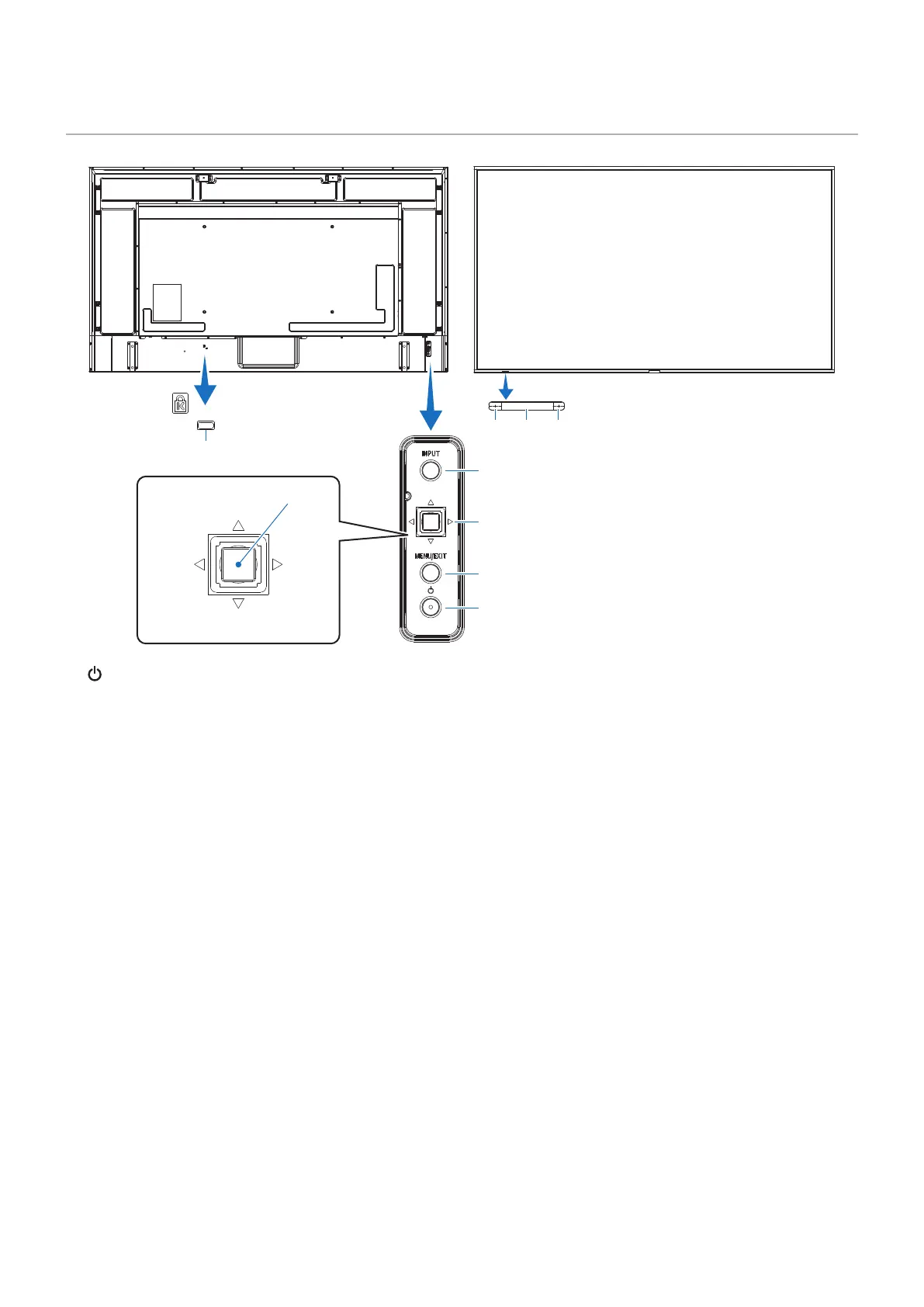

Control Panel
5
6
7 8
4
3
2
1
Down
Up
Right
Central
Left
1
Button (power button)
Switches between power on and standby. See page 35.
2
MENU/EXIT Button
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
3
Multi-direction Key/Central Button*
1
v/w: Left/Right control.
• Navigates to the left or right through the OSD Control
menus.
• Increases or decreases adjustments for individual OSD
settings.
• Directly adjusts the VOLUME when the OSD menu is
closed.
s/r: Up/Down control.
• Navigates up or down through the OSD Control menus.
OSD Control menus.
Central: (button press)
• Selects, or sets the setting for, the highlighted function in
the OSD menu.
*1: The v, w, r and s functions change according to the monitor orientation
(landscape/portrait).
4
INPUT Button
INPUT: Cycles through the available inputs when the OSD
menu is closed.
[HDMI1], [HDMI2], [HDMI3], [VGA(RGB)]/[VGA(YPbPr)],
[AV], [Media Player]. Input names are shown as their factory
preset name.
5
Security Slot
Security and theft protection lock slot compatible with
Kensington security cables/equipment.
NOTE For products, visit Kensington’s website.
6
Power Indicator
• Normal operation (On mode): Lit blue*
2
• Auto power save mode: Blinking red
• Auto standby mode: Lit red
• Turn off the monitor by the remote control: Glowing red
*2: If [Off] is selected under the [LED indicator] in the [Other settings] of the
[Setup] menu, the LED will not glow when the monitor is in active mode.
See page 74.
7
Remote Control Sensor
Receives the signal from the remote control (when using the
wireless remote control). See page 36.
8
Ambient light sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See page 71.
