Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.

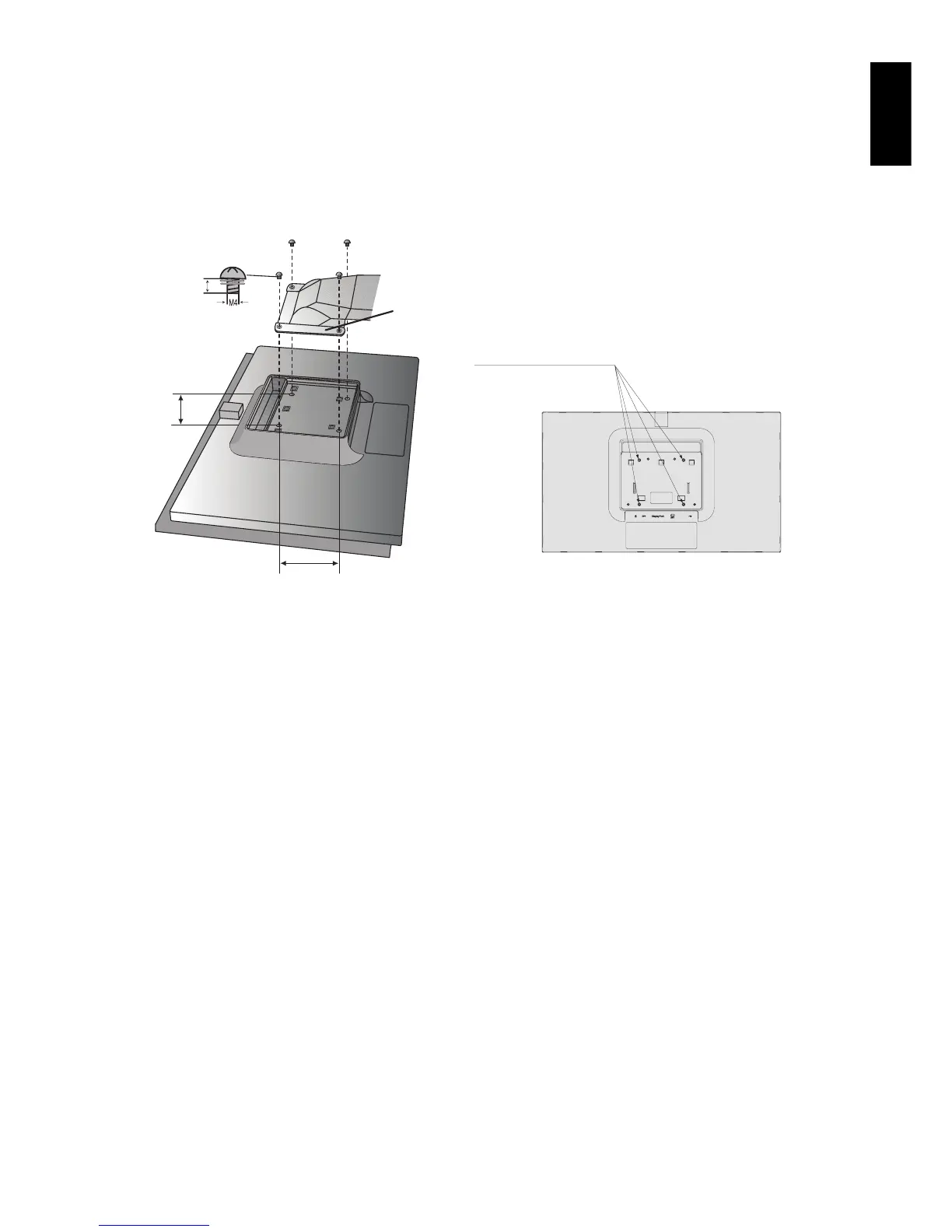

2. Using 4 screws attach the arm to the monitor (Figure F.1).

NOTE: 1. The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements,

the monitor must be mounted to an arm, which ensures the necessary stability under consideration of the

weight of the monitor.

2. The mounting stand must be able to sustain at least 12 kg and be UL certified.

Thickness of Bracket (Arm)

2.0~3.2 mm

Weight of LCD assembly: 3.0 kg MAX

100 mm

Figure F.1

4 Screws (M4)

(Max Depth: 9.5 mm)

100 mm

12 mm

4 x 12 mm with lock

washer and flat washer

Questions and Answers:

Need help?

Do you have a question about the NEC MultiSync EX231Wp and is the answer not in the manual?

NEC MultiSync EX231Wp Specifications

General

3D	No
Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:9
Response time	25 ms
Composite sync	Yes
Display diagonal	23 \
Video input impedance	75 Ω
Contrast ratio (dynamic)	-
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
VGA (D-Sub) ports quantity	0
Intelligent mode	IPM
Certification	Energy Star 5.0 TCO 5.2 EPEAT Gold RoHS
Product color	Black
Height adjustment	110 mm
Panel mounting interface	100 x 100 mm
Power consumption (typical)	27 W
Power consumption (PowerSave)	0.37 W
Cables included	DVI, USB, VGA
Bundled software	NaViSet
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
