Quick Start

To attach the MultiSync

LCD monitor to your system,

follow these instructions:

1. Turn off the power to your computer.

2. For use with the PC or MAC with DVI digital output: Connect the DVI

signal cable to the connector of the display card in your system

(Figure A.1). Tighten all screws.

For a PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A

signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the

computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync

Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a

Macintosh cable adapter.

NOTE: To obtain the MultiSync Macintosh cable adapter call

NEC Display Solutions of America, Inc. (800) 632-4662.

3. Place hands on each side of the monitor. Tilt the LCD panel backwards to a

30-degree angle and lift up to the highest position. Connect all cables to

appropriate connectors (Figure 4).

4. To keep the cables neatly organized, place them into the cable

management system that is built into the stand.

Place the D-Sub cable and the power cable into the

speciﬁc hooks as indicated (Figure 5).

Place the DVI cable and the 15-pin mini D-Sub to DVI-A cable into the

hooks as indicated (Figure 6).

When using the monitor in Portrait mode, place the DVI cable and the 15-

pin mini D-Sub to DVI-A cable into the hooks as indicated (Figure 7).

5. Cables should rest ﬂat against the stand.

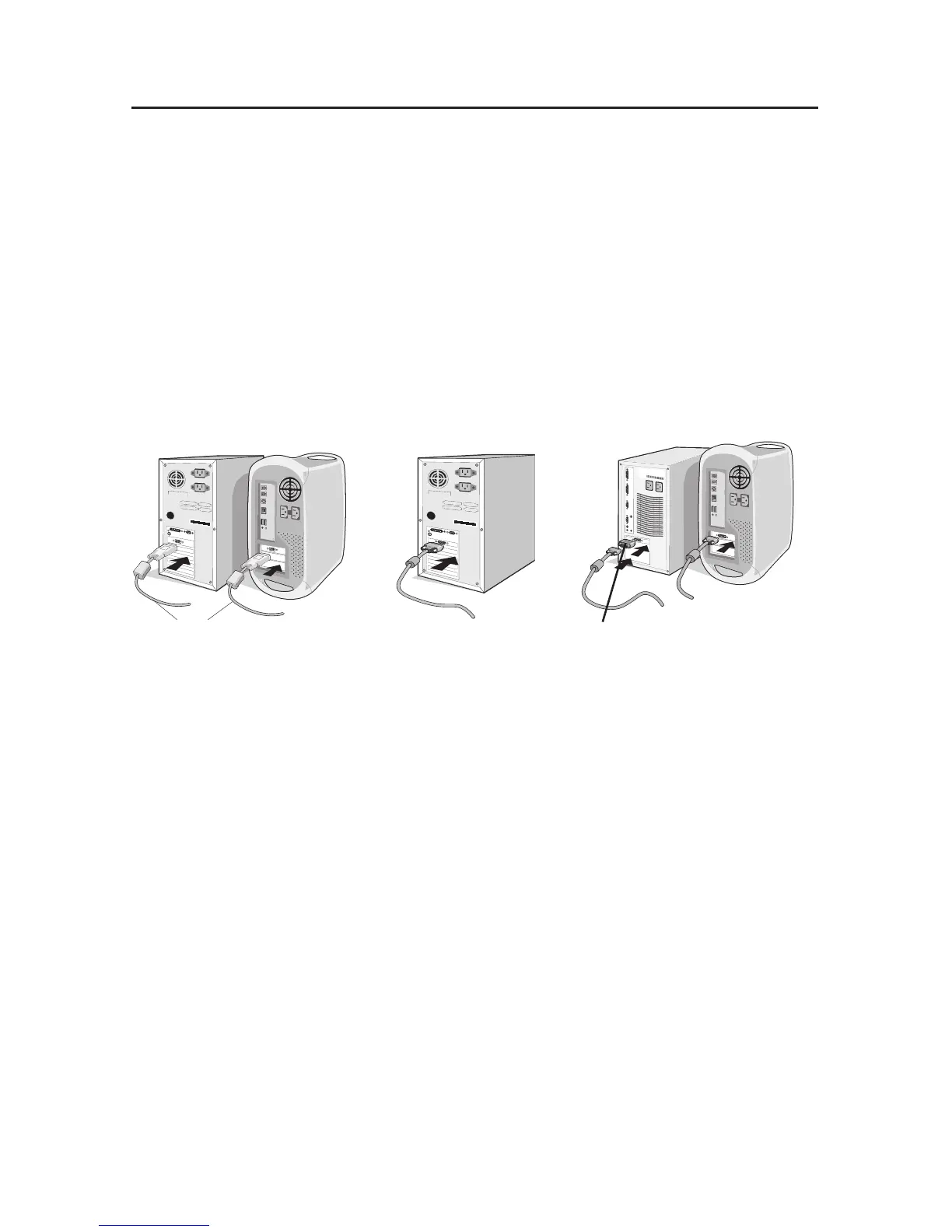

Figure A.1

Figure A.2

Figure B.1

Macintosh Adapter

(not included)

Other manuals for NEC MultiSync LCD2490WUXi

Questions and Answers:

Need help?

Do you have a question about the NEC MultiSync LCD2490WUXi and is the answer not in the manual?

General

3D	No
HD type	-
Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:10
Response time	8 ms
Display surface	Matt
Display diagonal	24 \
Separate H/V sync	Yes
Display resolution	1920 x 1200 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 93.8 kHz
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Digital horizontal frequency	31.5 - 119.2 kHz
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	720 x 400, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
HDMI ports quantity	0
Product color	Black
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (standby)	1 W
Power consumption (typical)	83 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	30 - 80 %
Cables included	AC
