Connect the LCD Monitor to a Stereo Amplifier
•Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use a stereo Mini-RCA cable to connect the AUDIO OUT connector (Stereo Mini Jack) on the LCD monitor to the audio
input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.

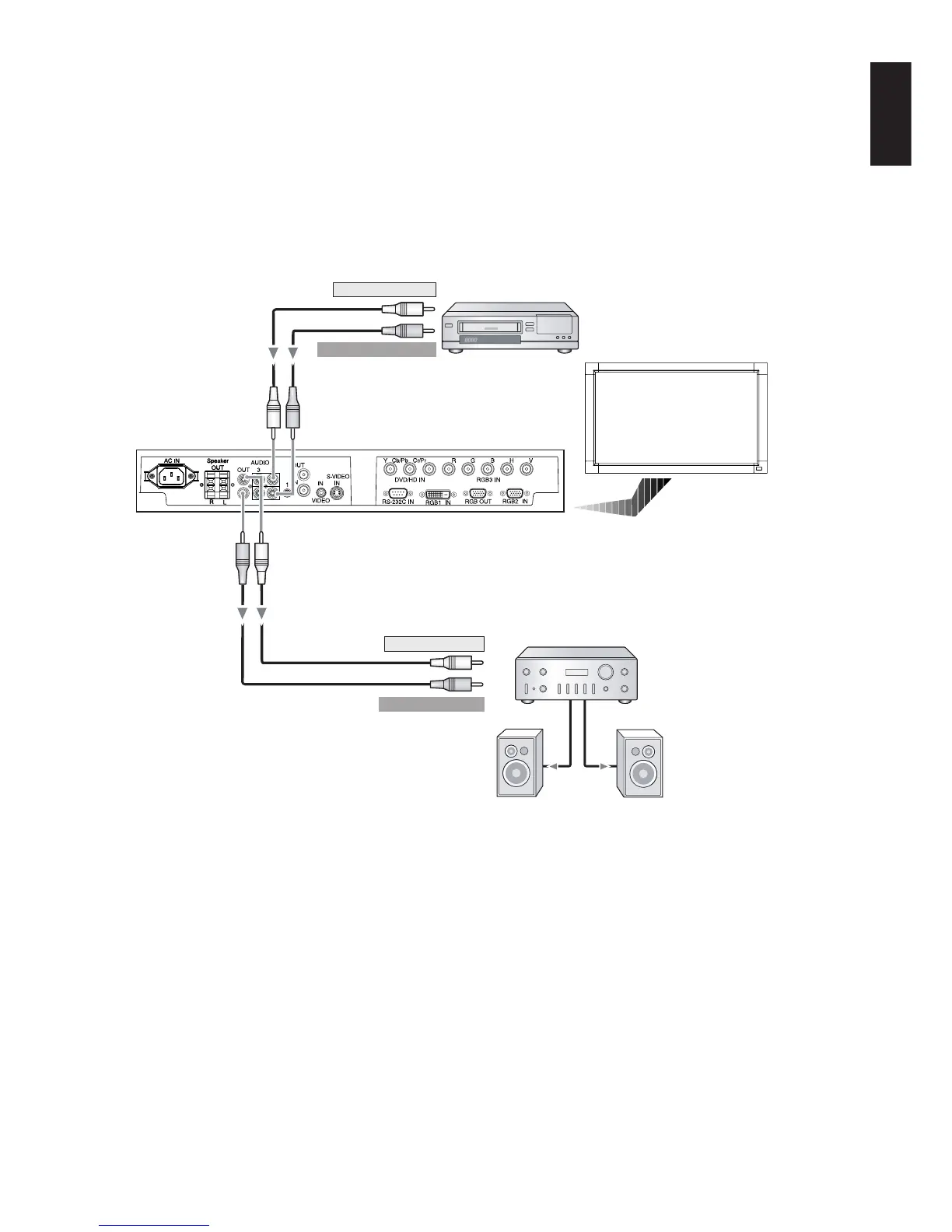

Connecting to a Stereo Amplifier
You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
LCD monitor
RCA
To audio right output
To audio left output
VCR or Laser disc player
To audio right input
To audio left input
Amplifier
External speaker External speaker
RCA
