NEC MultiSync PA242W User Manual

English-10

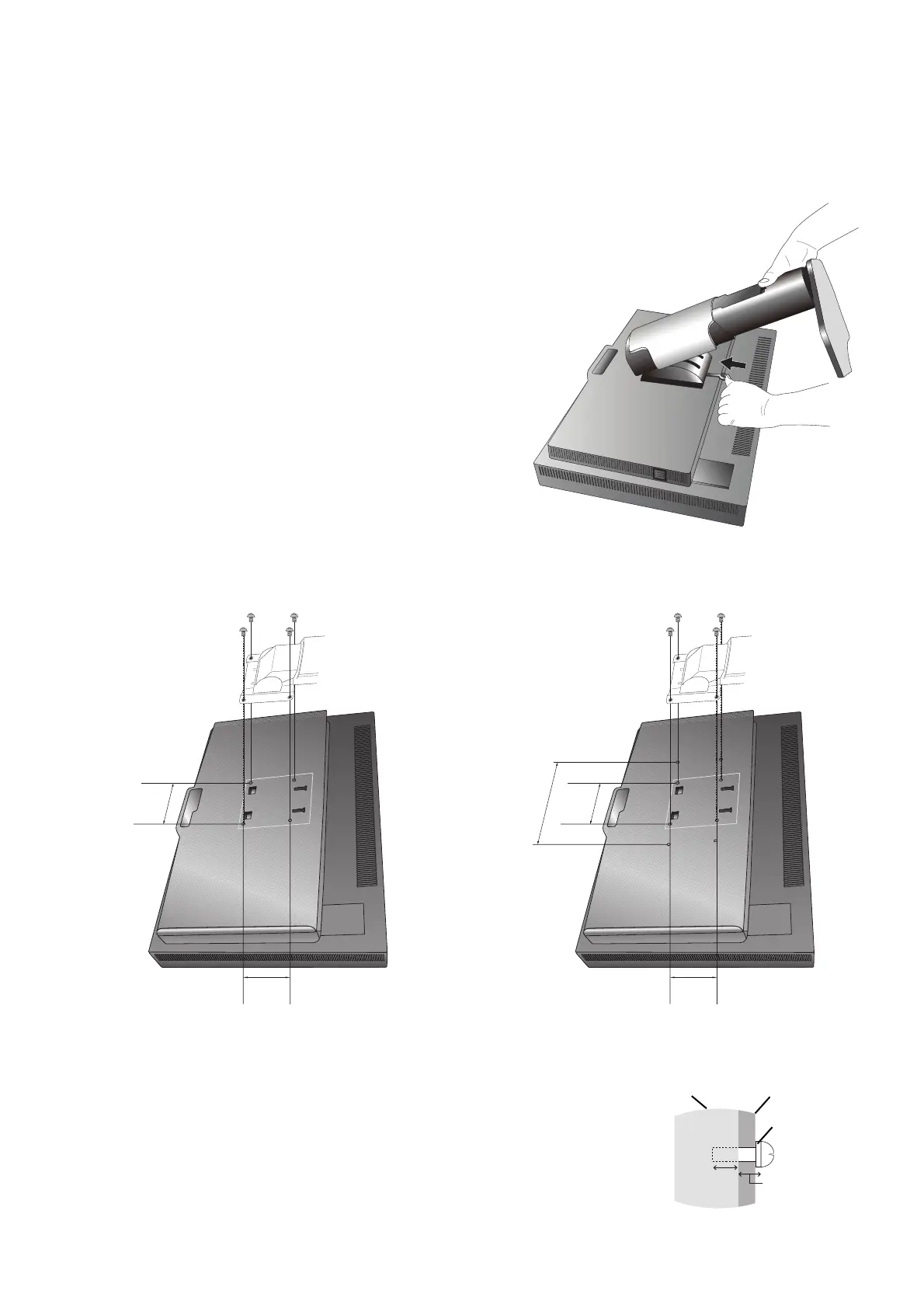

Figure S.1
Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm.
To prepare the monitor for alternate mounting purposes:
NOTE: For PA302W, the monitor must be installed or moved by two or more people.
• Follow the instructions provided by the manufacturer of the display mount.
• To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor.
See page 26-27-28 for details. Remove the monitor stand before mounting.
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
4. Place one hand around the base and one hand on the Quick Release Lever.
Push and hold the Quick Release Lever in the direction indicated by the
arrows (Figure S.1).
5. Lift up the stand to unhook it from the monitor (Figure S.1).
The monitor can now be mounted using an alternate method.
Reverse process to reattach stand.
NOTE: Handle with care when removing monitor stand.
Mount Flexible arm
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Using the 4 screws from the stand removal and attach the arm to the monitor (Figure F.1).
Figure F.1
100 mm
100 mm
Weight of LCD assembly: 7.4 kg (PA242W)
100 mm
100 mm
Weight of LCD assembly: 8.9 kg (PA272W)
10.7 kg (PA302W)
200 mm
Caution: Use ONLY the screws (4 pcs) that are included or M4 sized screws (Length: thickness
of bracket and washer + 10-12 mm) when mounting to avoid damage to the monitor
and stand. To fulfi l the safety requirements the monitor must be mounted to an arm
which guaranties the necessary stability under consideration of the weight of the
monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).
NOTE: Tighten all screws.
(recommended Fasten Force: 98 - 137N•cm)
Mounting
Bracket
Screw
Washer
Unit
10-12 mm
Thickness
of bracket
and washer

NEC MultiSync PA242W Specifications

General

3D	No
DDC/CI	Yes
Panel type	AH-IPS
Aspect ratio	16:10
Screen shape	Flat
Response time	8 ms
Backlight type	RGB LED
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Digital vertical frequency	50 - 85 Hz
Digital horizontal frequency	31.5 - 91.1 kHz
Display brightness (typical)	340 cd/m²
Supported graphics resolutions	720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Power consumption (economy mode)	28 W
DVI-I ports quantity	0
Number of upstream ports	2
USB Type-A downstream ports quantity	3
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100, 200 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	56 W
Annual energy consumption	54 kWh
Power consumption (standby)	- W
Power consumption (typical)	37 W
Power consumption (PowerSave)	2 W
Certification	C-tick; CCC; CE; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PCT/Gost; PSB; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
Cables included	DVI, Mini DisplayPort
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Windows operating systems supported	Windows 8

Weight and Dimensions

Bezel width (side)	18.2 mm
Depth (with stand)	227.6 mm
Height (with stand)	378 mm
Weight (with stand)	10600 g
Depth (without stand)	85 mm
Width (without stand)	556.8 mm
Height (without stand)	362.4 mm
Weight (without stand)	7400 g
