NEC MultiSync PA242W User Manual

English-5
English
Product Features
• DisplayPort and HDMI, which support 10-bit color depth.
• 5-setting, easy-to-switch picture mode (see page 13).
• Accurate color reproduction for high-end graphic design (see page 17).
• Quick warmup time.
• Picture-in-picture/picture-by-picture dual-screen mode includes real-time preview (see page 14).
• USB hub with two upstream ports (see page 14).
• MultiProfi ler extends color management feature, including automatic ICC profi le updates (ICC profi le Emulation, Printer
Emulation) (see page 17).
• Low power consumption via ECO MODE (see page 12).
• Small footprint design.
• Self calibration with optional sensor (PA302W only).
Contents

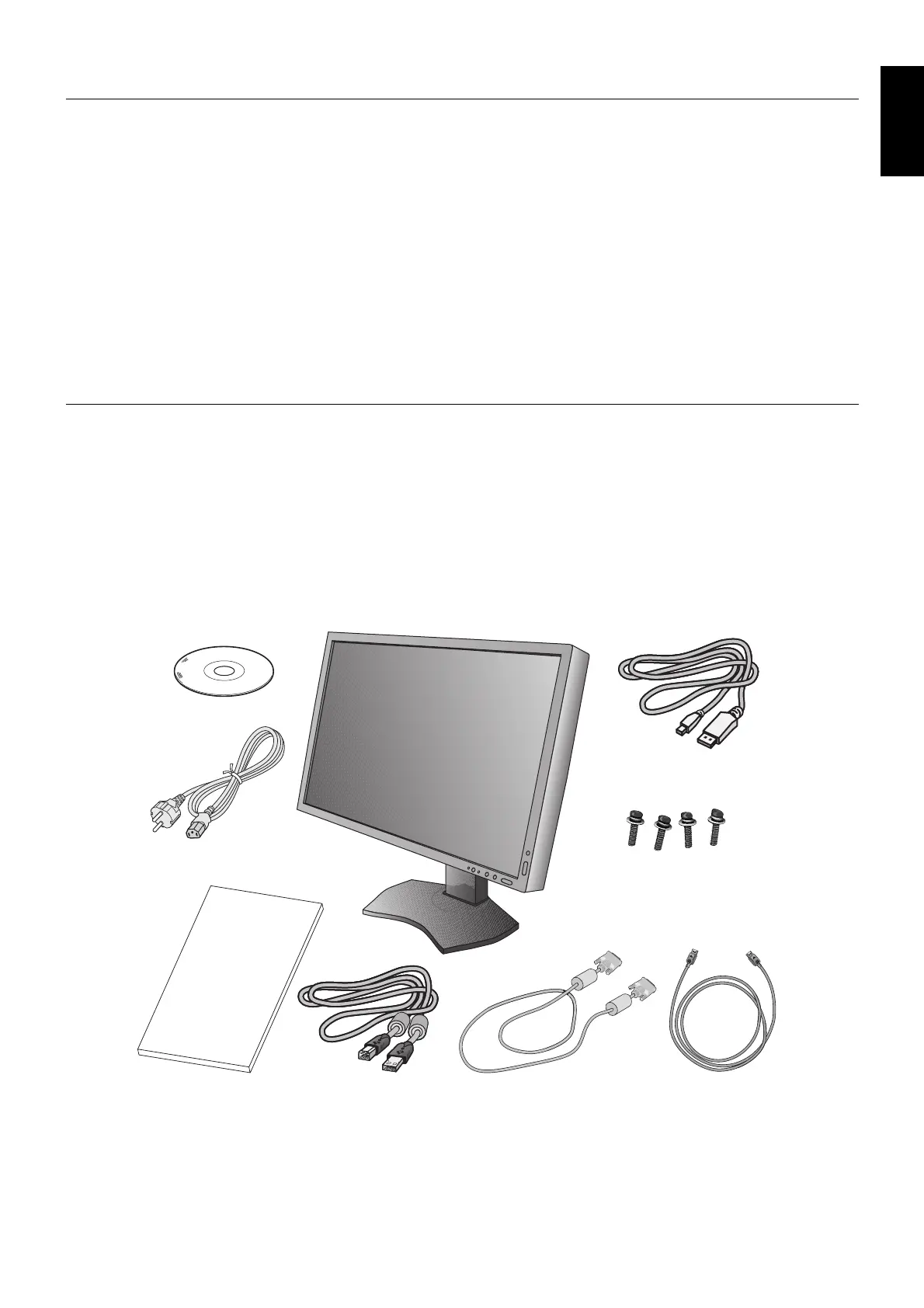

Your new NEC monitor box* should contain the following:
• MultiSync monitor with tilt/swivel/pivot/height adjust stand
• Power Cord*
1
• Video Signal Cable (DVI-D to DVI-D cable)*
2
• Video Signal Cable (DisplayPort cable)*
3
• Video Signal Cable (Mini DisplayPort to DisplayPort cable)*
4
• USB Cable
• Setup Manual
• CD-ROM*
3
• Screw (x 4) (to mount the monitor to a fl exible arm (page 10))
Setup Manual DVI-D to DVI-D cable*
2
DisplayPort cable*
3
CD-ROM*
3
Screws
Power Cord*
1
Setup Manual
USB Cable
Mini-DisplayPort to
DisplayPort cable*
4
NOTE: This monitor can be equipped with optional “MultiSync Soundbar Pro”.
Please ask your dealer or check our website.
* Remember to save your original box and packing material to transport or ship the monitor.
*
1
Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one power cord is included, please use
a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
*
2
Dual link DVI cable for PA272W/PA302W.
*
3
Only for PA242W.
*
4
Type and number of cables included will depend on the where the LCD monitor is to be shipped.

NEC MultiSync PA242W Specifications

General

3D	No
DDC/CI	Yes
Panel type	AH-IPS
Aspect ratio	16:10
Screen shape	Flat
Response time	8 ms
Backlight type	RGB LED
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Digital vertical frequency	50 - 85 Hz
Digital horizontal frequency	31.5 - 91.1 kHz
Display brightness (typical)	340 cd/m²
Supported graphics resolutions	720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Power consumption (economy mode)	28 W
DVI-I ports quantity	0
Number of upstream ports	2
USB Type-A downstream ports quantity	3
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100, 200 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	56 W
Annual energy consumption	54 kWh
Power consumption (standby)	- W
Power consumption (typical)	37 W
Power consumption (PowerSave)	2 W
Certification	C-tick; CCC; CE; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PCT/Gost; PSB; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
Cables included	DVI, Mini DisplayPort
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Windows operating systems supported	Windows 8

Weight and Dimensions

Bezel width (side)	18.2 mm
Depth (with stand)	227.6 mm
Height (with stand)	378 mm
Weight (with stand)	10600 g
Depth (without stand)	85 mm
Width (without stand)	556.8 mm
Height (without stand)	362.4 mm
Weight (without stand)	7400 g
