NEC MultiSync PA242W User Manual

English-7
English

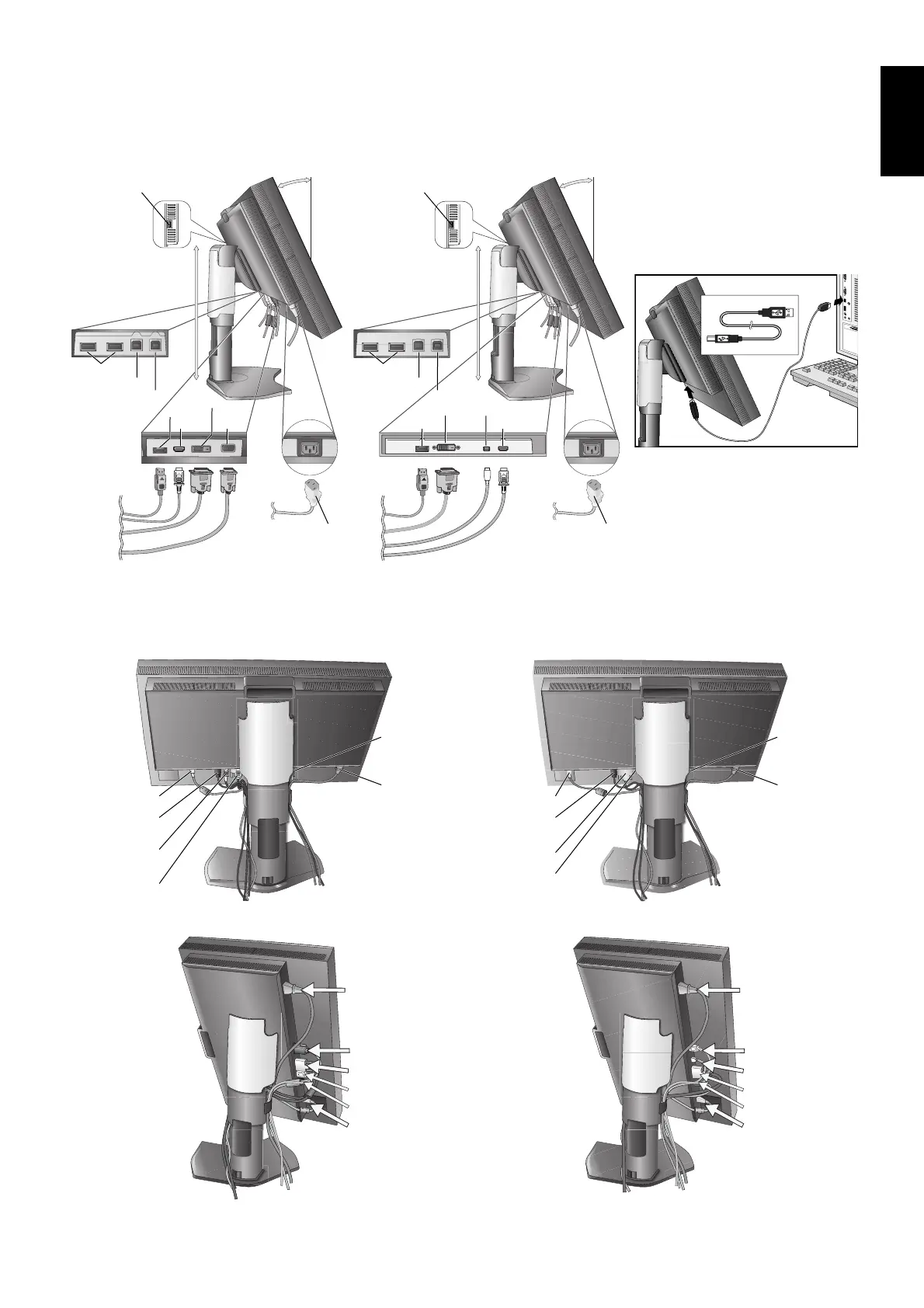

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into one of the downstream ports of the monitor.
NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module
and/or shorten the module’s life.
(PA272W/PA302W)
DVI-D
HDMI
Highest
Stand
Position
DisplayPort
Mini DisplayPort
USB downstream
USB upstream1
USB upstream2
USB upstream2
Power cord
USB downstream*
2
30° Tilt
Figure C.1a
A Type
B Type
A Type
B Type
(PA242W only)
Power cord
30° Tilt
DVI-D
DisplayPort
USB downstream
USB upstream1
USB upstream2
D-SUB
Highest
Stand
Position
USB downstream
HDMI
Figure C.1
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
6. Please check that you can still rotate, raise and lower the monitor screen when you have installed the cables.
Figure C.2
(PA242W only) (PA272W/PA302W)
USB Cable
Power Cord
DVI Cable
D-SUB Cable*
1
DisplayPort
Cable
HDMI Cable*
1
USB Cable*
2
Power Cord
Mini DisplayPort
Cable
HDMI Cable*
1
DisplayPort
Cable*
1
DVI Cable
Figure C.3
Power Cord
DVI Cable
D-SUB Cable*
1
USB Cable
DisplayPort Cable
HDMI Cable*
1
Power Cord
Mini DisplayPort
Cable
HDMI Cable*
1
USB Cable*
2
DisplayPort Cable*
1
DVI Cable
(PA242W only) (PA272W/PA302W)
*
1
: Cable not included.
*
2
: Connect sensor to this port for self calibration (PA302W only).

NEC MultiSync PA242W Specifications

General

3D	No
DDC/CI	Yes
Panel type	AH-IPS
Aspect ratio	16:10
Screen shape	Flat
Response time	8 ms
Backlight type	RGB LED
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Digital vertical frequency	50 - 85 Hz
Digital horizontal frequency	31.5 - 91.1 kHz
Display brightness (typical)	340 cd/m²
Supported graphics resolutions	720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Power consumption (economy mode)	28 W
DVI-I ports quantity	0
Number of upstream ports	2
USB Type-A downstream ports quantity	3
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100, 200 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	56 W
Annual energy consumption	54 kWh
Power consumption (standby)	- W
Power consumption (typical)	37 W
Power consumption (PowerSave)	2 W
Certification	C-tick; CCC; CE; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PCT/Gost; PSB; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
Cables included	DVI, Mini DisplayPort
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Windows operating systems supported	Windows 8

Weight and Dimensions

Bezel width (side)	18.2 mm
Depth (with stand)	227.6 mm
Height (with stand)	378 mm
Weight (with stand)	10600 g
Depth (without stand)	85 mm
Width (without stand)	556.8 mm
Height (without stand)	362.4 mm
Weight (without stand)	7400 g
