NEC MultiSync V422 Control Guide

(6/71)
4. Communication Format
The command packet consists of four parts, Header, Message, Check code and Delimiter.
Recommended sequence of a typical procedure to control a monitor is as follows,

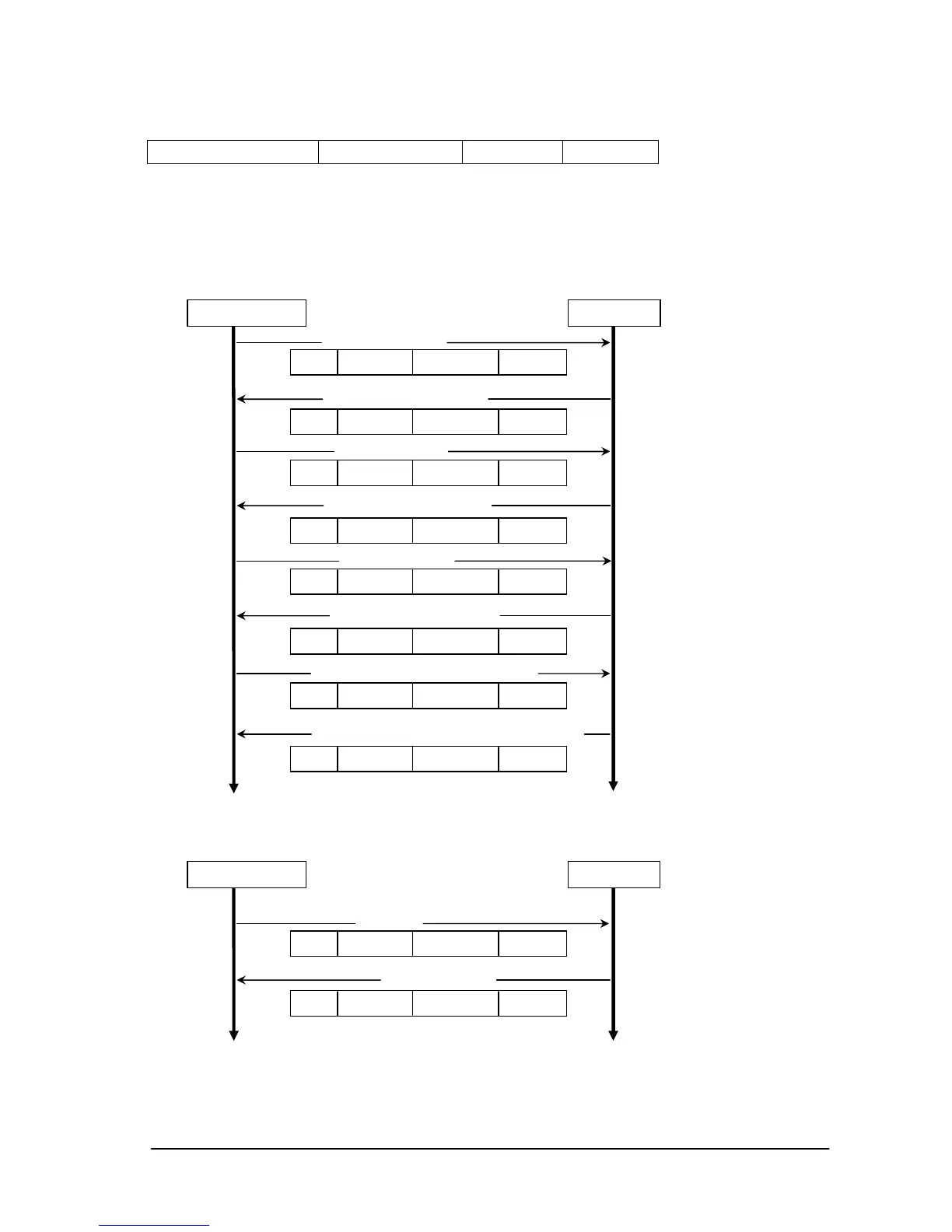

[A controller and a monitor, two-way communication composition figure]
■ For the general command (see the part "6.3. Operation Code (OP code) Table”)
■ For the special command (see the part 7 to 14. and 5.5.2)
Header Message Check Code Delimiter
Monitor Controller
Header
Message
Check Code
Delimiter
Get Parameter
Get Parameter Reply
Set Parameter
Set Parameter Reply
Get Parameter Reply
Save Current Setting Command
Get Parameter
The controller sends command to
get a value from the monitor that
you want to change.
The monitor replies a current value
of the requested item.
The controller sends commands to
set an adjusted value.
The monitor replies to the
controller for confirmation.
The controller sends command to
get a value for confirmation.
The monitor replies an adjusted
value.
The controller requests to store
the adjusted value to the monitor.
Command
Command Reply
The control does not suitable for
above fixed protocol; use the
proper command for each control.
Please refer section 5.5 and
section 7 to 13.
The monitor replies a proper
message defined for each control.
Save Current Setting Command Reply
The monitor replies to the
controller for confirmation.
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter
Monitor Controller
Header
Message
Check Code
Delimiter
Header
Message
Check Code
Delimiter

NEC MultiSync V422 Specifications

General

Pixel pitch	0.48 x 0.48 mm
Response time	10 ms
Display diagonal	42 \
Display brightness	370 cd/m²
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1300:1
Display number of colors	16.78 million colors
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
3D	No
Separate H/V sync	Yes
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Viewable size, vertical	523.3 mm
Viewable size, horizontal	930.2 mm
DVI-D ports quantity	2
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	44 mm
Bezel width (bottom)	43 mm
Panel mounting interface	300 x 300 mm
RMS rated power	10 W
Cables included	VGA
Remote control type	IR
Power consumption (standby)	2 W
Power consumption (typical)	155 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	206 mm
Package width	1142 mm
Package height	703 mm
Package weight	27000 g

Weight and Dimensions

Depth	105.6 mm
Width	1022.9 mm
Height	613.5 mm
Weight	22000 g
Depth (with stand)	330 mm
Height (with stand)	651.2 mm
Weight (with stand)	23800 g
