Multisync
PROCEED VIDEO 1
EXIT
VIDEO 2 RGB 1 RGB 2
POWER
/STANDBY
¥
¥
|
{

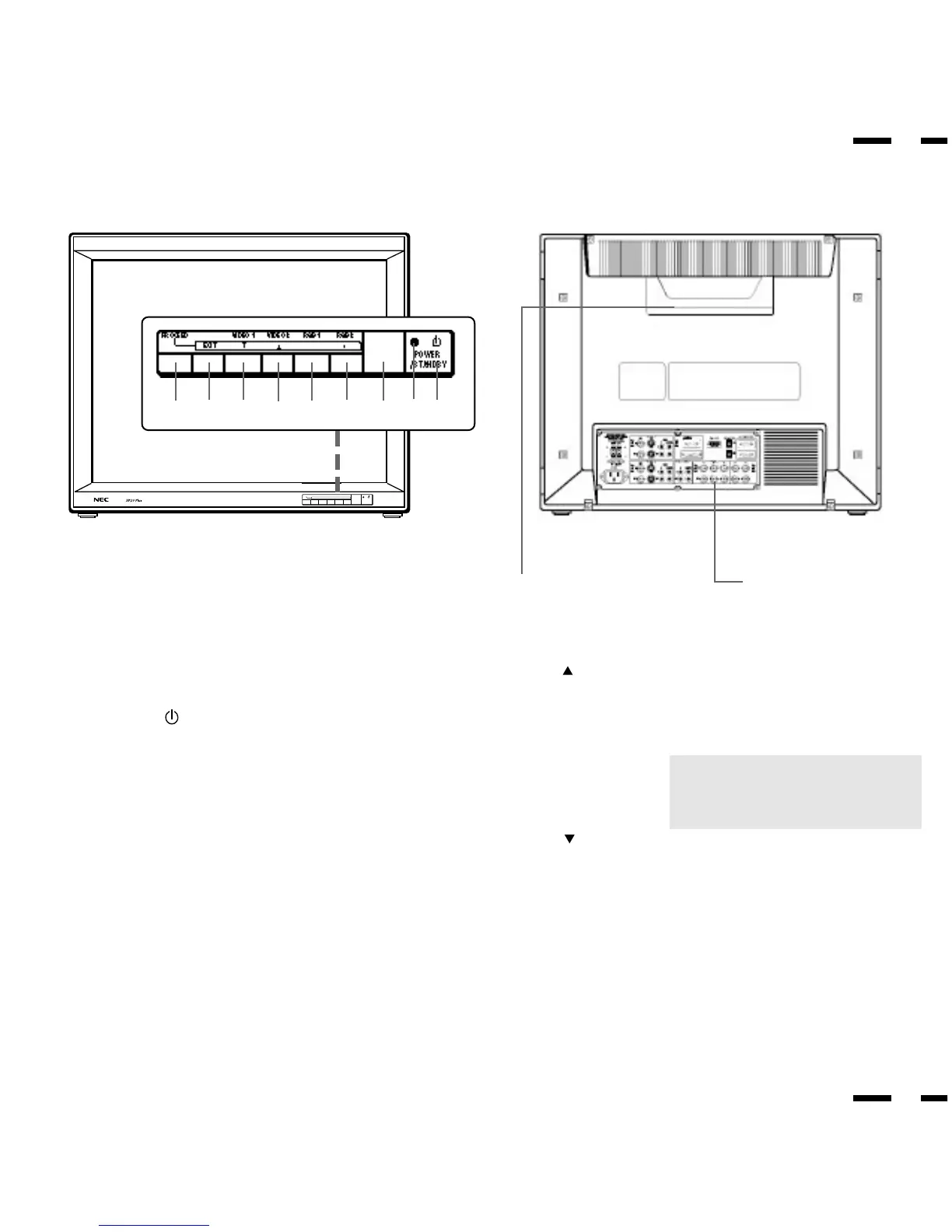

Part Names and Functions
4
Rear View
Front View
3
2
1
3
4
Terminal Board
1 POWER .............................. Press to turn the main power on and off when
the AC power is supplied.
2 STANDBY/POWER
........
When this indicator is green, the monitor is
on; when the indicator is red, it is in standing
by.
3 Remote Sensor Window ... Receives infrared signal from the handheld
remote control.
4 RGB 2/+ .............................. Press to select an RGB video source that is
connected to the RGB 2 input terminals (BNC
type). When you are in the OSM mode, this
button works as the plus button.
5 RGB 1/- ............................... Press to select an RGB video source that is
connected to the RGB 1 input terminal (D-
SUB 15 pin type).
When you are in the OSM mode, this button
works as the minus button.
6 VIDEO 2/
.......................... Press to select an NTSC, PAL, SECAM or M-
NTSC compatible video source that is
connected to the VIDEO 2 input terminal (BNC
type or S-VIDEO 2 IN). When you are in the
OSM mode, this button works as the up button.
NOTE: S-VIDEO IN terminals will take
preference over VIDEO IN terminals when
the video source is connected to each
terminal and VIDEO 1 or 2 selected.
7 VIDEO 1/ ......................... Press to select an NTSC, PAL, SECAM or M-
NTSC compatible video source that is
connected to the VIDEO 1 input terminal (BNC
type or S-VIDEO 1 IN). When you are in the
OSM mode, this button works as the down
button.
8 EXIT .................................... Press to exit the OSM mode. The OSM screen
disappears.
9 PROCEED .......................... Press to access OSM. The OSM screen is
displayed.
0 Remote Control Holder..... Place remote control unit here when not in
use.
56789
0
