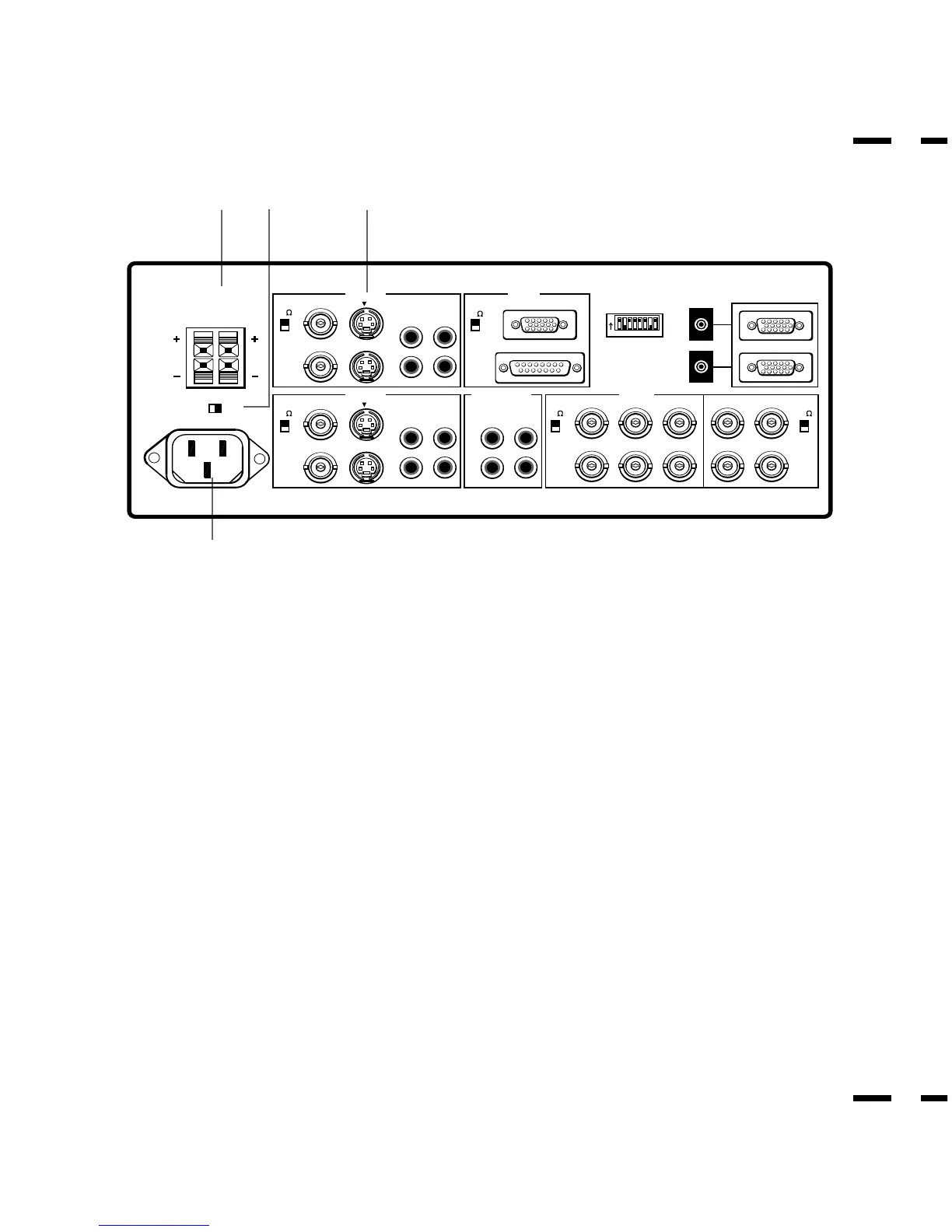

Terminal Board
5
6
AB
DIP SW REMOTE
EXT SPEAKERS
SPEAKERS MUST HAVE
MORE THAN 5WATT RATING
IMPEDANCE 8 OHM
AC IN
SPEAKER SELECT
RIGHT LEFT
75
HIGH
INT EXT
BNC
IN
OUT
IN
R L(MONO)
AUDIO
THROUGHPUT
VIDEO 1
OUT
S
1 2 3 4 5 6 7 8
ON
75
HIGH
RGB1
PC / EXT CTL
75
HIGH
BNC
IN
OUT
IN
R L(MONO)
AUDIO
VIDEO 2
OUT
S
IN
R
RGB
IN
OUT
HV
L(MONO)
OUT
IN
OUT
75
HIGH
75
HIGH
RGB AUDIO RGB 2
D
C
A Speakers
RIGHT + ..... Connect RIGHT speaker positive wire here.
RIGHT - ..... Connect RIGHT speaker negative wire here.
LEFT - ....... Connect LEFT speaker negative wire here.
LEFT +....... Connect LEFT speaker positive wire here.
B SPEAKER SELECT INT/EXT Select Switch
Set to the INT position for built-in monitor speakers. Set to the EXT position
for speakers connected to EXT SPEAKERS terminals.
C AC Input
Connect the supplied power cord’ s three-pin plug here.
D VIDEO 1
VIDEO 1 IN (BNC type).... Connect a VCR or laser disk player here to
display the video.
S-VIDEO 1 IN ..... Here is where you connect S-Video input from an external
source like a VCR.
THROUGH OUT (BNC type) ..... Connect to a second monitor’ s video input to
relay the video signal input at VIDEO 1 IN.
THROUGH OUT (S-VIDEO) ..... Connect to a second monitor’ s S-connector
input to relay the video signal input at S-VIDEO 1 IN.
75 Ω/HIGH Impedance Select Switch for BNC type ... Set to 75 Ω” during
normal operation. In multiple connections using VIDEO 1 IN and THROUGH
OUT (BNC type) terminals, set to “HIGH” on all but the last monitor. Set to
“75 Ω” on the last monitor only.
AUDIO R IN .... This is your right channel audio input for stereo sound.
AUDIO L IN (MONO) .... This is your left channel audio input for stereo sound
coming from video equipment or audio system. It also serves as the mono
audio input.
AUDIO R THROUGH OUT ..... Connect to a second monitor’ s right channel
audio input.
AUDIO L THROUGH OUT ..... Connect to a second monitor’ s left channel
audio input.
