ISSUED: 04-11-06 SHEET #: 055-9458-1
Visit the NEC Web Site at www.necsam.com
4 of 9
For customer care call 1-800-729-0307 or 708-865-8870.
Generic Screw
L
Mounting
hole
*
Generic Projector

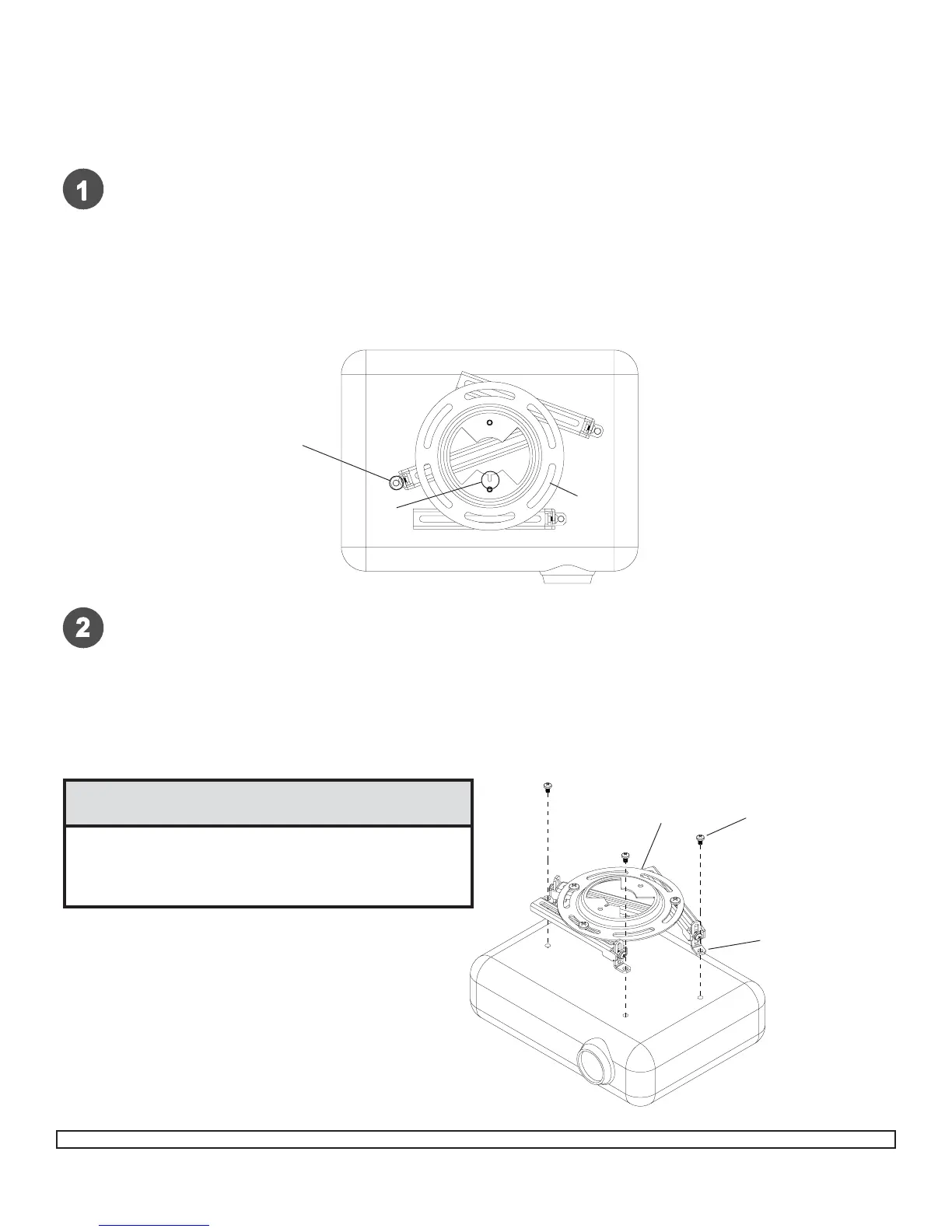

Place projector upside down. Locate adapter plate (L) with notch facing forward as close to projector center of
gravity as possible without covering any mounting holes. Loosen channels, and if there are only three mounting
holes remove fourth channel. Using one channel for each mounting hole, position feet of channels over mounting
holes as shown below. Important: If projector does not have at least three mounting holes, do not use this
adapter plate.
Note: Some projectors have feet which can be removed and the corresponding threaded insert can be used for a
mounting hole.
Note: Once channels are in position retighten fasteners.
*Notch indicates front of projector.
Note: The projector you are installing may differ in appearance from the sample illustrated below.
Attach adapter plate (L) to projector using one screw (M, N, O, or P) for each channel as shown below. Tighten
all screws, while keeping the center of gravity. Be sure that adapter plate (L) is straight. Adjust the feet of the
channels to keep the adapter plate level. Tighten all screws with 4 mm security allen wrench (B) or wrench
provided with projector mount, while keeping the center of gravity. If M3 screws are used, tighten using 2 mm
security allen wrench (Q).
Note: Projectors will require different size screws for mounting. Use a combination of screws (M, N, O, or P) and
foot adjustment that will result in channels of adapter plate (L) fitting tightly against projector. Important: In order
to properly engage the threads in the mounting holes, the screw must be turned at least 3 full turns.
Note: If using screw (M), place washer (R) between screw (M) and foot of channel.
Foot of Channel
L
• It is the responsibility of the installer to ensure that the
projector is properly ventilated. Feet of channels are
used to raise the mount off the projector surface.
CAUTION
Installation and assembly - Universal Adapter Plate
