NEC NP1150 - Cabinet Dimensions

NEC Display Solutions Europe GmbH
NP1150/NP2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.6
www.nec-display-solutions.com NP1150/NP2150/NP3150 Page 5 of 9

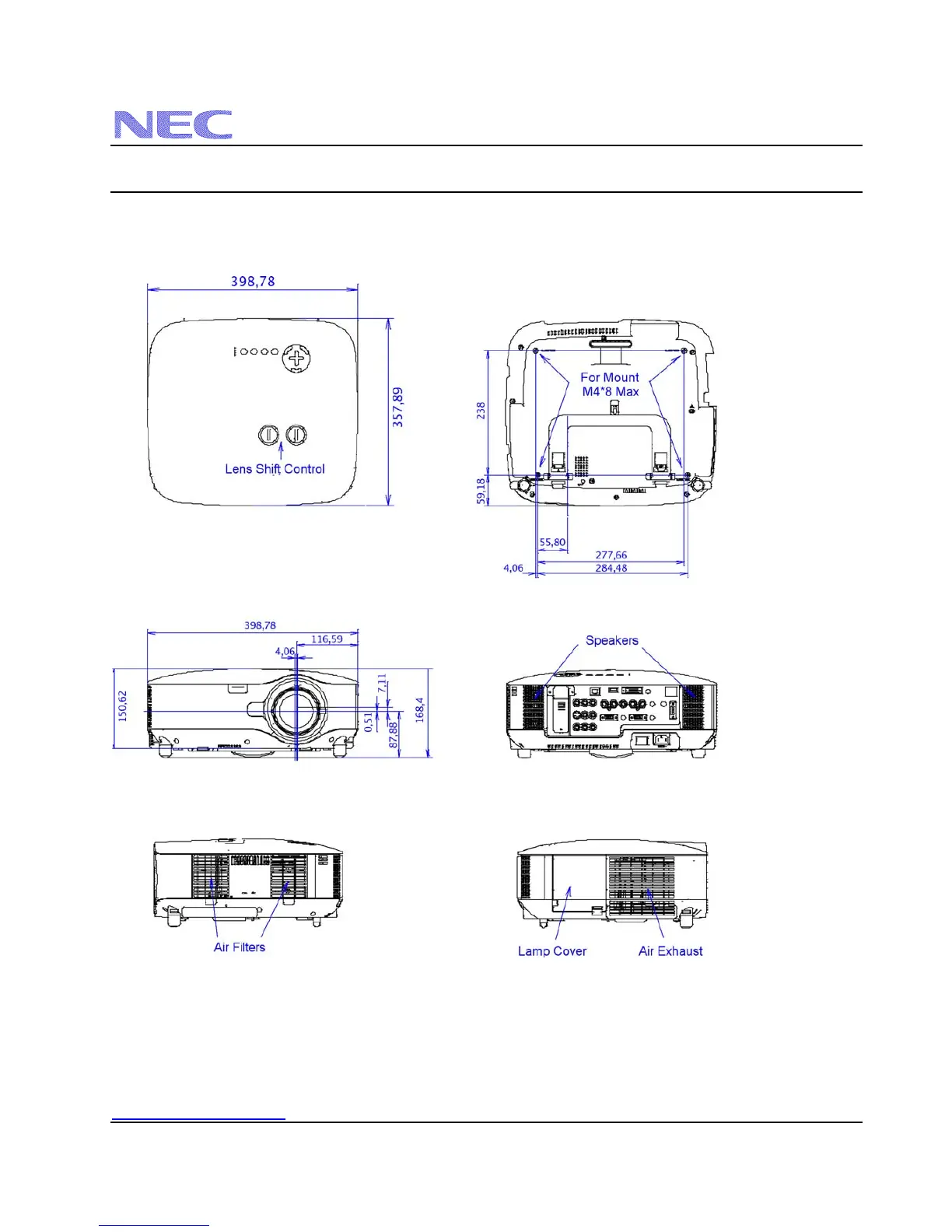

Cabinet Dimensions
The following diagrams show the cabinet dimensions for the NP3150.
Dimensions are in mm.
