1. Introduction


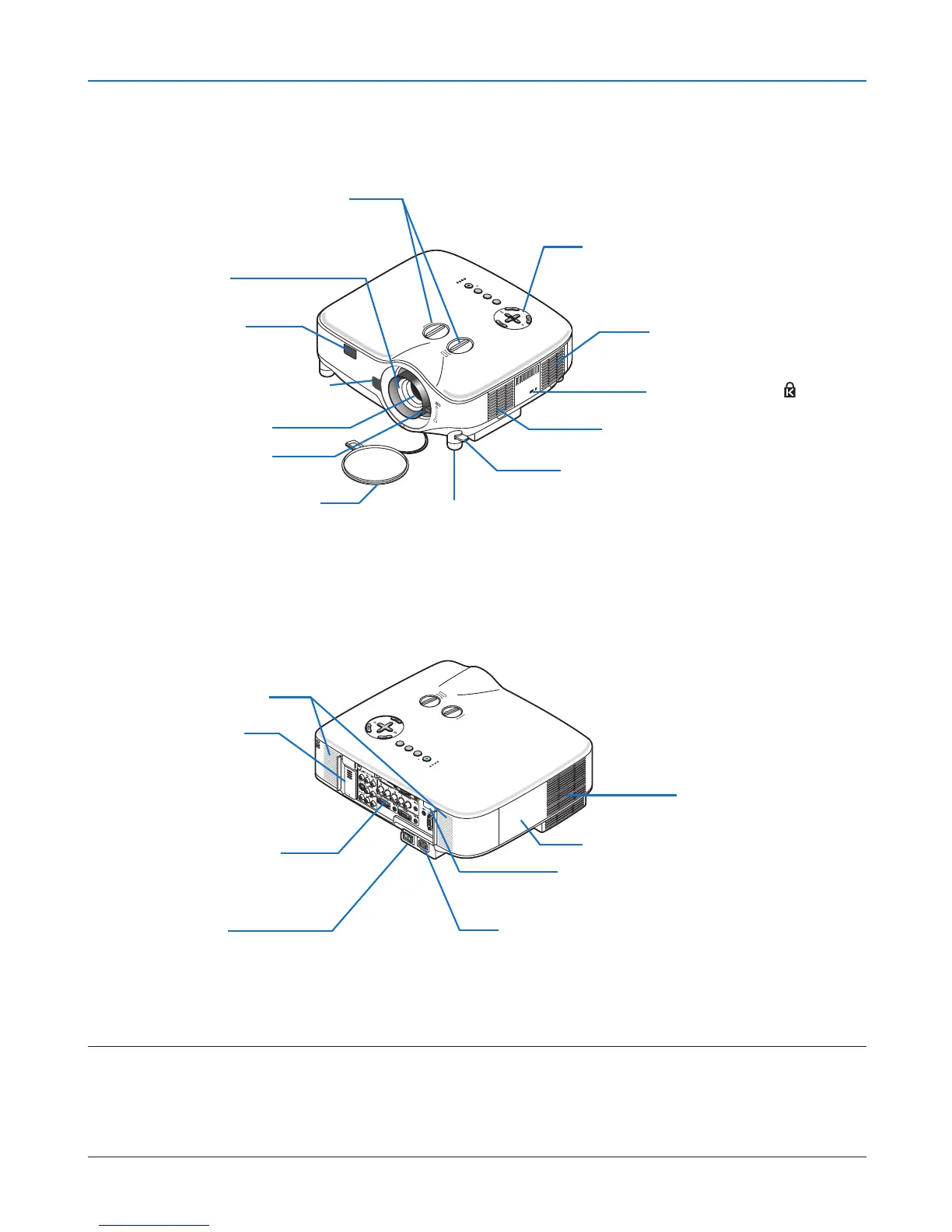

Part Names of the Projector
Controls
(
→
page 7)
Built-in Security Slot ( )*
Zoom Lever
(
→
page 27)
Lens Cap
Remote Sensor
(
→
page 10)
Focus Ring
(
→
page 27)
Lens Shift Dial (Right / Left,Up / Down)
(
→
page 26)
Adjustable Tilt Foot Lever
(
→
page 28)
* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kens-
ington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Ventilation (inlet) / Filter
(
→
page 116)
Adjustable Tilt Foot
(
→
page 28)
Lens
Front/Top
Ventilation (inlet) / Filter
(
→
page 116)
Stereo Speaker (5W x 2)
AC Input
Connect the supplied power cable’s three-pin plug here,
and plug the other end into an active wall outlet.
(
→
page 21)
Main Power Switch
When you plug the supplied power cable into an active
wall outlet and turn on the Main Power switch, the POW-
ER indicator turns orange and the projector is in standby
mode.
(
→
page 22)
Remote Sensor
(
→
page 10)
Ventilation (outlet)
Heated air is exhausted from
here.
Rear
Terminal Panel
(
→
page 8)
Lamp Cover
(
→
page 118)
LENS RELEASE Button
(
→
page 123)
USB Wireless LAN unit
The model without the USB
wireless LAN unit has a dummy
cover here.
NOTE:
The USB Wireless LAN Unit emits weak radio waves when the projector is in standby* mode or turned on.
If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, re-
move the USB Wireless LAN Unit from the projector. (
→
page 139)
* To stop emitting radio waves from the USB Wireless LAN Unit during standby mode, select [POWER-SAVING] from [STANDBY
MODE].
