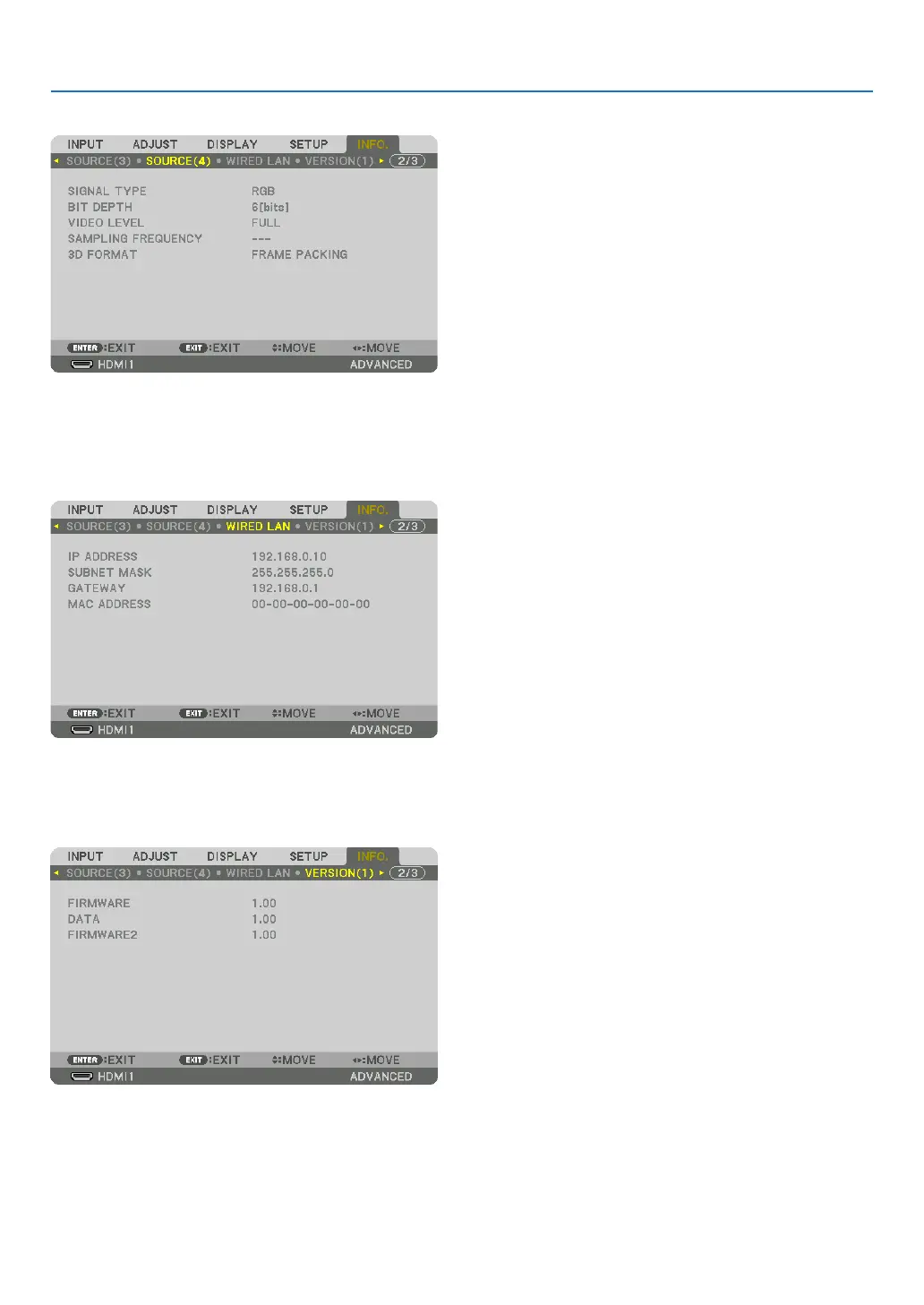

135

5. Using On-Screen Menu

[SOURCE(4)]

SIGNAL TYPE BIT DEPTH

VIDEO LEVEL SAMPLING FREQUENCY

3D FORMAT

[WIRED LAN]

IP ADDRESS SUBNET MASK

GATEWAY MAC ADDRESS

[VERSION(1)]

FIRMWARE DATA

FIRMWARE2
