PASOLINK
+
155 MB 1+0/1+1 SYSTEM MTD-PL-028/141005
- 2 -
Type 1 Type 2
11-38 GHz 128 QAM/32 QAM type 6-8 GHz 128 QAM type
(0.3m Diameter Antenna) (Low Loss Coaxial cable connection to Antenna)

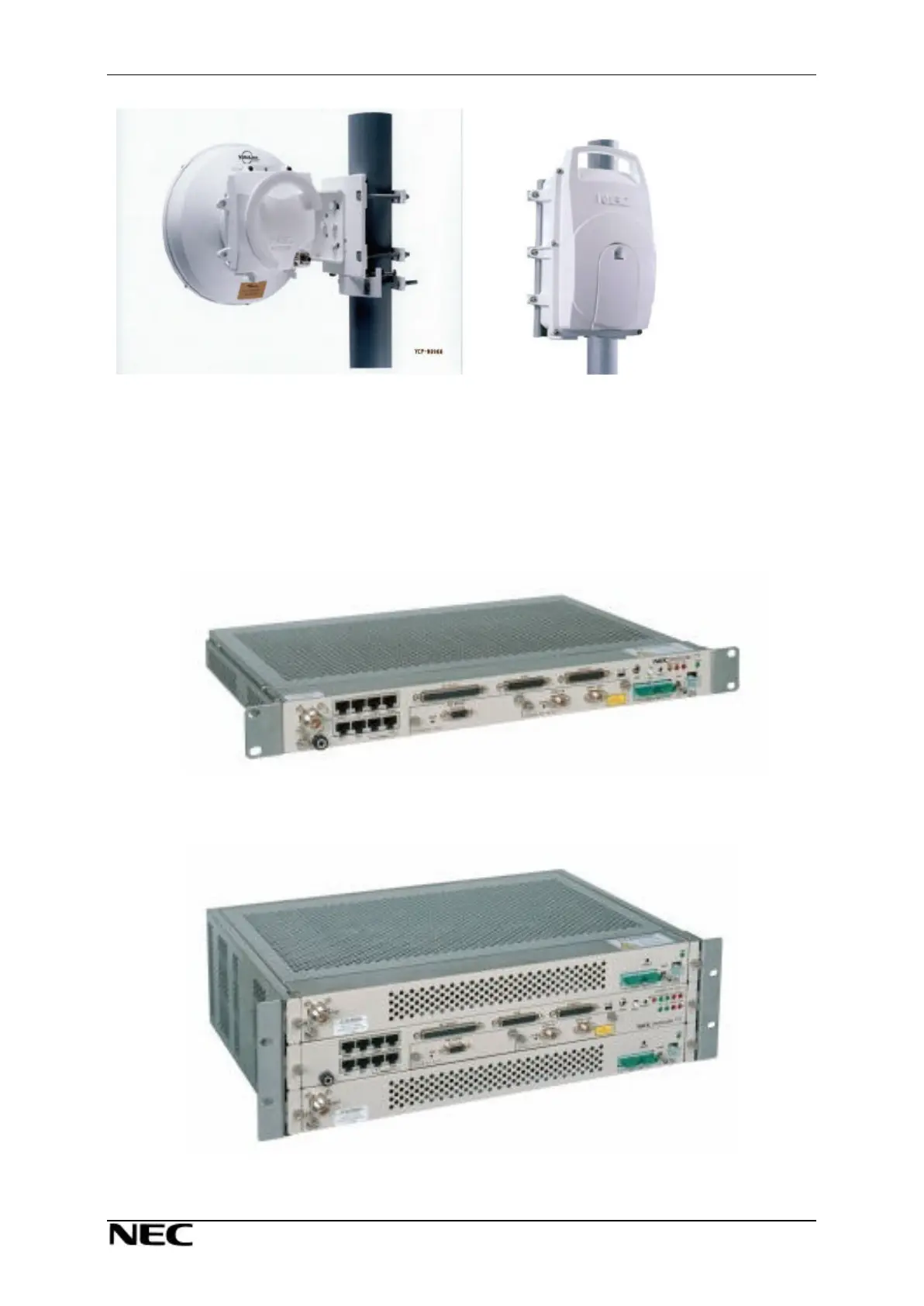

Figure 1. Antenna and (1 + 0) ODU
Figure 2-1. Indoor Unit (IDU) 1 + 0 Configuration
Figure 2-2. Indoor Unit (IDU) 1 + 1 Configuration
