NEC PF28WT100 - REMOTE CONTROL & TV CONNECTIONS; LOCAL CONTROL (Front Panel); LOCAL CONTROL (Rear Panel); REMOTE CONTROL UNIT LAYOUT

AV1
C2C3 C1
VIDEO L-AUDIO-R
MONITOR OUT
C5C4
VIDEO L-AUDIO-R
RD-D110
4

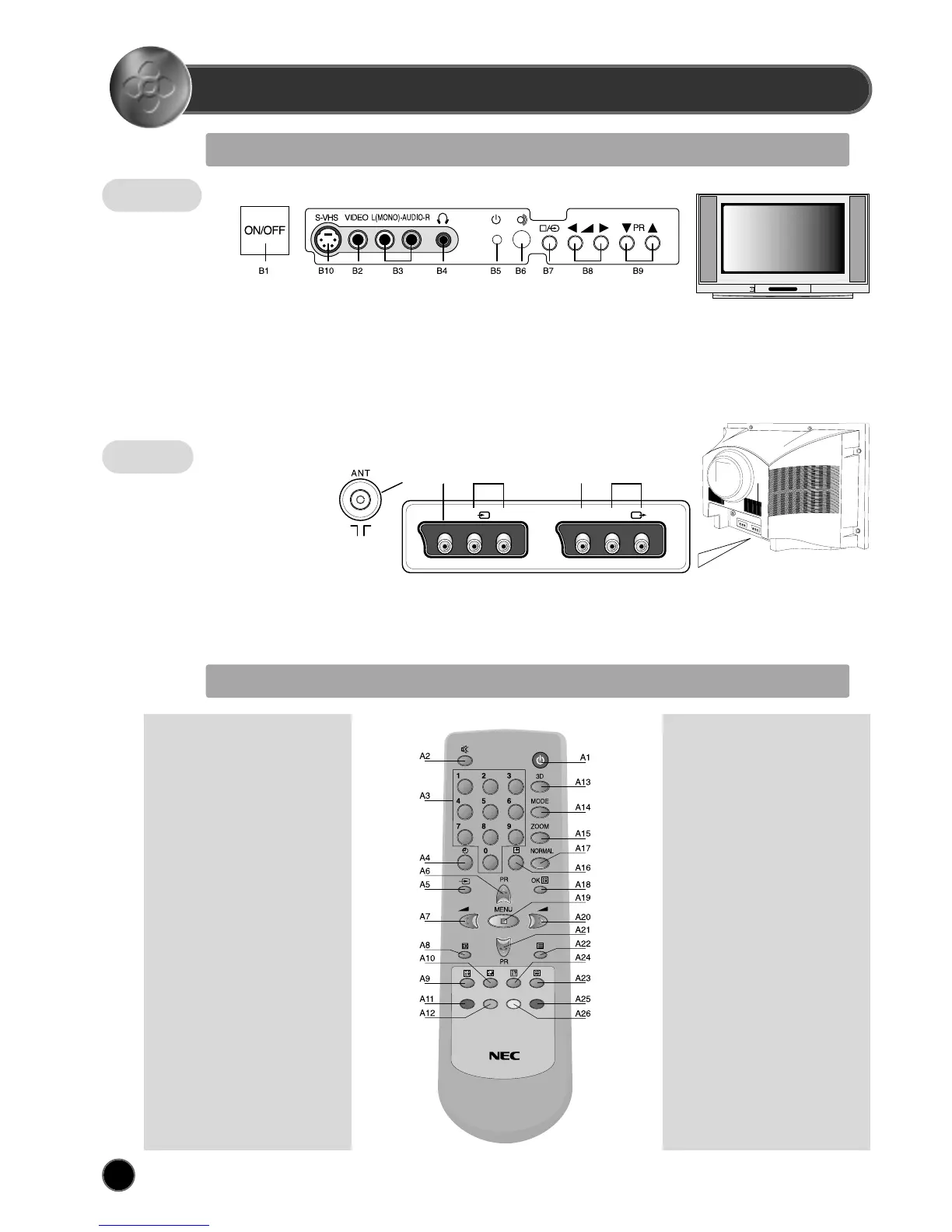

REMOTE CONTROL & TV CONNECTIONS
LOCAL CONTROL
REMOTE CONTROL UNIT
Front
Rear
C1 REAR VIDEO INPUT Socket
C2 REAR AUDIO INPUT(L+R) Socket
C3 AERIAL jack
C4 REAR MONITOR OUTPUT Socket
C5 REAR AUDIO OUTPUT (L+R) Socket
TV mode
POWER
SOUND MUTE
NUMBER 0..9
SLEEP
TV / AV
PROGRAM UP
(CURSOR UP)
VOLUME DOWN
(CURSOR LEFT)
.
.
.
SKIP
MOVE
3D(SOUND EFFECT)
MODE
ZOOM
RECALL
NORMAL
OK/PRESET
MENU
VOLUME UP
(CURSOR RIGHT)
PROGRAM DOWN
(CURSOR DOWN)
TV > TELETEXT
.
.
.
DELETE / FREEZE
TELETEXT mode
POWER
SOUND MUTE
NUMBER 0..9
.
.
PAGE UP
VOL/BRIGHT/CONTRAST DOWN
CANCEL
PAGE HOLD
SUBPAGE
RED
GREEN
.
.
.
.
.
INDEX
VOL/BRIGHT/CONTRAST
MENU SELECTION
VOL/BRIGHT/CONTRAST UP
PAGE DOWN
TELETEXT > TV
HEIGHT
REVEAL
CYAN
YELLOW
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
B1 MAIN POWER button
B2 FRONT VIDEO INPUT socket
B3 FRONT AUDIO INPUT (L + R) socket
B4 HEADPHONE socket
B5 STAND-BY indicator
B6 REMOTE sensor
B7 TV / AV button
B8 VOLUME UP/DOWN buttons
B9 PROGRAM UP/DOWN buttons
B10 FRONT PANEL S-VIDEO jack
