SL1100 Hardware Installation
1-888-632-3794 • info@necsl1100distributors.com
3

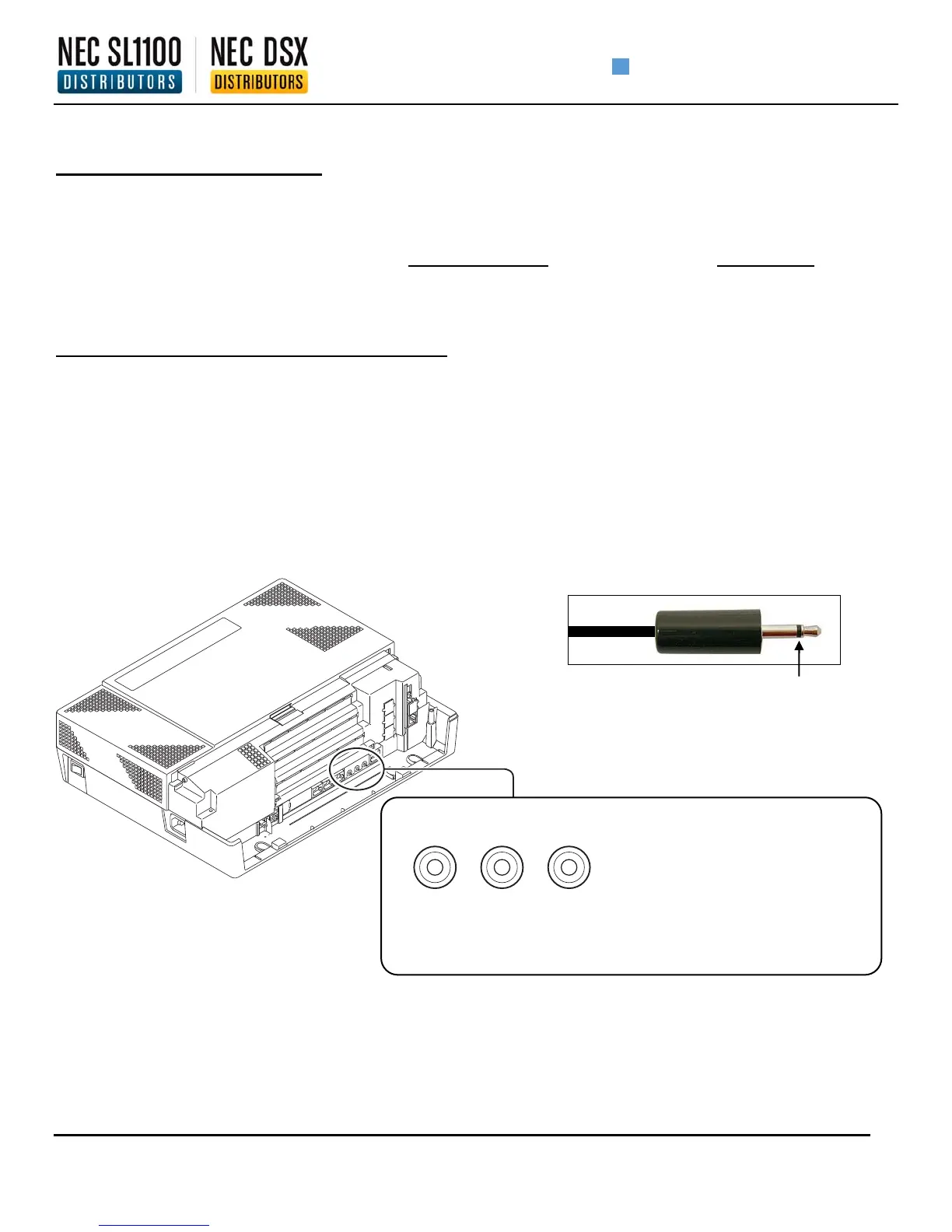

Installing External Paging
This Phone System provides and External Paging output. You connect the Phone System Paging output to an
audio input on a customer provided Paging system. Be sure the connected paging equipment is compatible
with the following page output specifications – Output Impedance: 600 Ohms @ 1 kHz. Output Level: Nominal
250 mV (-10 dBm).
To Connect to an External Paging Amplifier:
1. Find the mono audio minijack (1/8”) that was supplied for Free with this phone system
2. Plug the mono audio minijack into the PAGE input on the Phone System
3. Plug the other end of the audio cable into the paging amplifier
Audio IN/OUT Jack
BGM MOH PAGE
PAGE : Audio in/out
(External paging)
MOH : Audio in
(External MOH)
BGM : Audio in
(BGM)
(Mono Audio Jack has ONE Black Band)
A 1/8” Mono to 1/8” Mono/RCA Cable
was Included Free with your System.
