Issue 1.0
SL2100 DT920 (ITK-8LCX) User Guide 23
Confirm the status of MIC Key if you want to answer by Handsfree. (If
MIC Key is On, the microphone is On and Handsfree is possible If
MIC Key is Off, the microphone is muted.)
4.4.3 Picking up a Call for Other Extensions
System setting is necessary to create a Call Pickup Group. Ask your
NEC Authorized Supplier for the details.
Call Pickup operations are available using Soft Key operation.
4.5 Hold / Transferring Calls
4.5.1 Holding a Call / Retrieving a Held Call

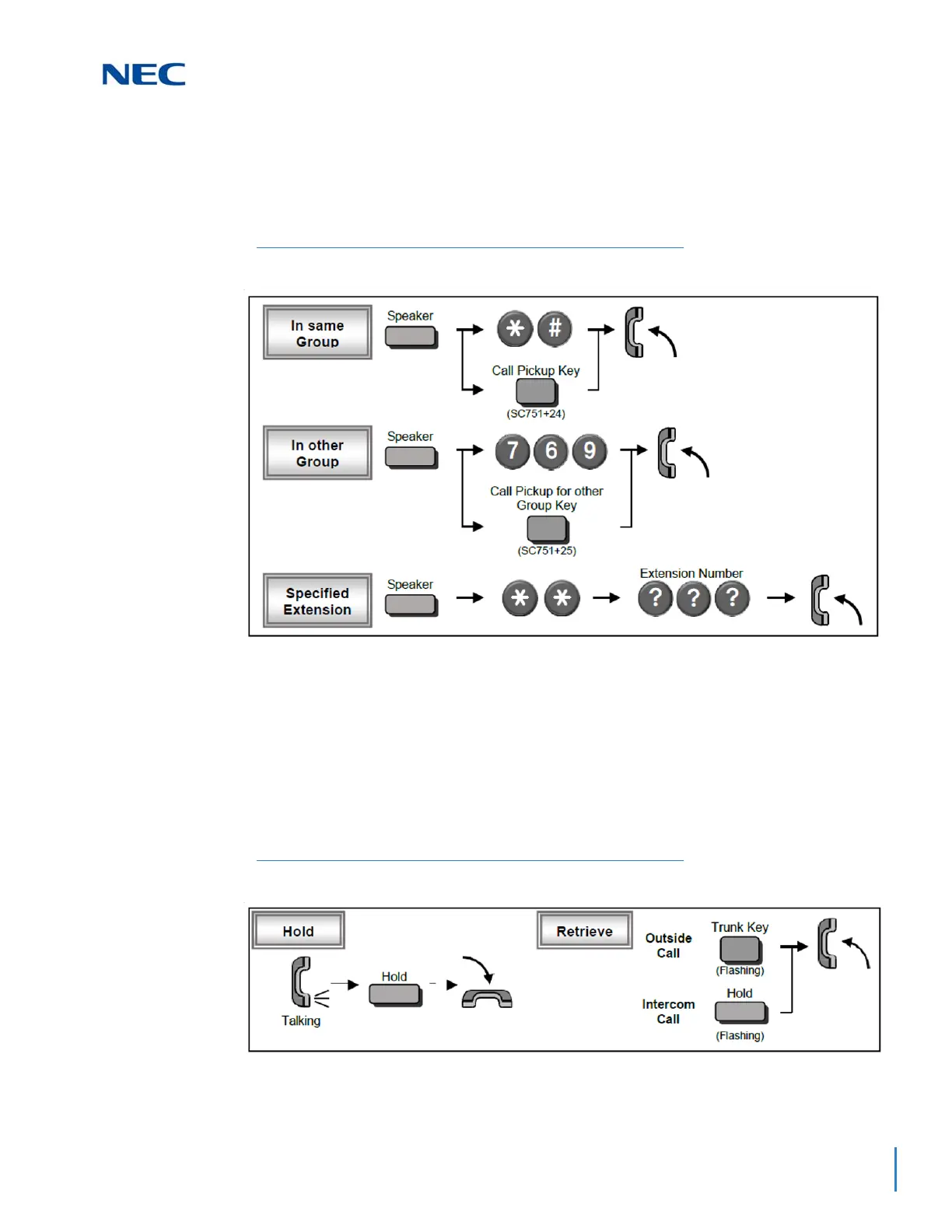

Figure 27 Pick Up Call for Other Extensions
Figure 28 Holding a Call or Retrieve a Held Call
