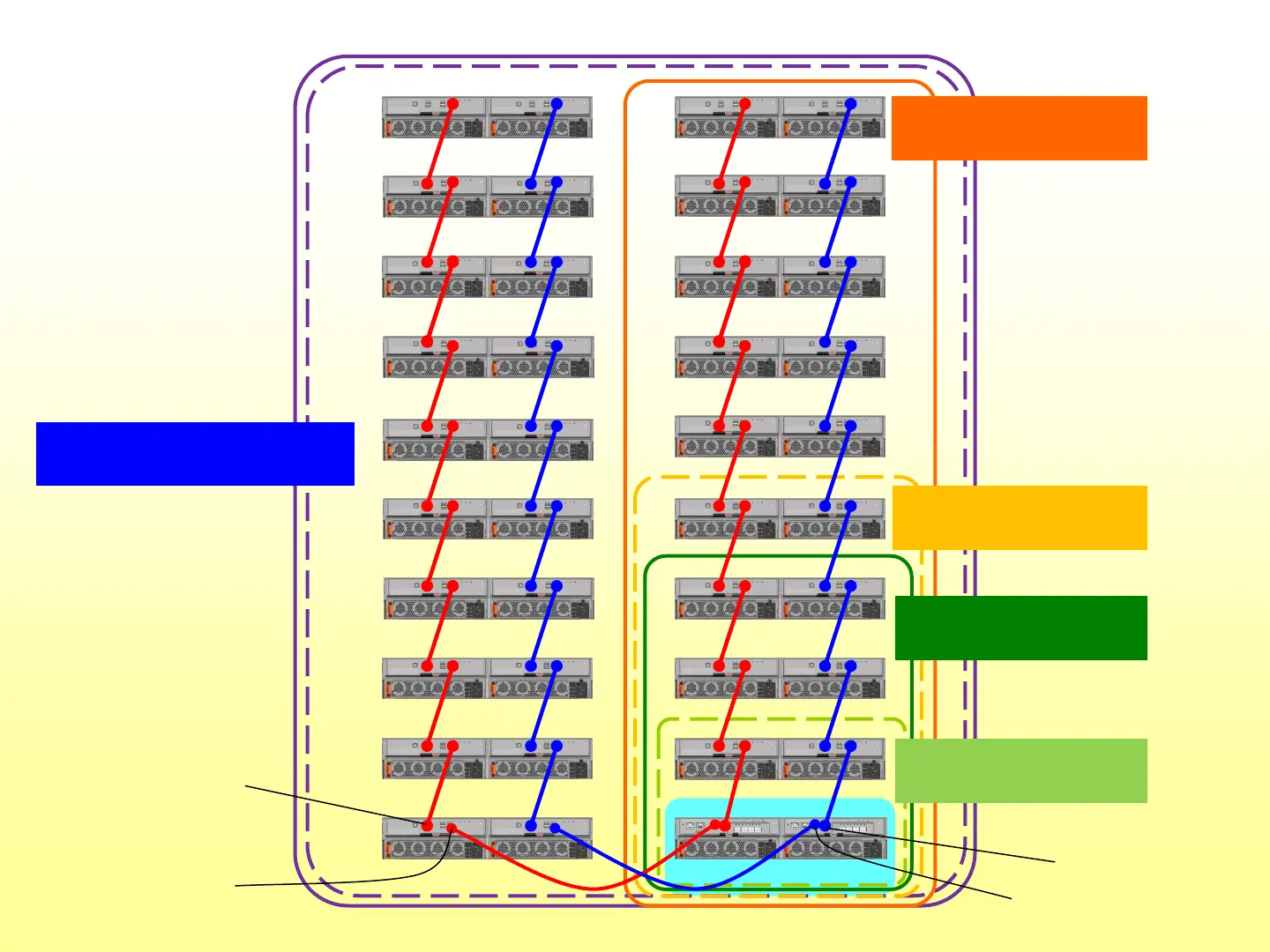

■ Connecting
the SAS cables
Note: For wiring,
see the User’s Guide.
M310 2.5/3.5, M310F 2.5 inch
disk drive mounting model
M110 3.5-inch disk
drive mounting model
M110 2.5-inch disk
drive mounting model
M11e 3.5-inch disk
drive mounting model
M11e 2.5-inch disk
drive mounting model
Disk enclosure 19 units max
Disk enclosure 9 units max
Disk enclosure 1 unit max
Disk enclosure 3unit max
Disk enclosure 4unit max
DP0-IN
DP-OUT
DP0
DP1
Disk Array Unit
DE09
DE08
DE07
DE06
DE05
DE04
DE03
DE02
DE01
DE19
DE18
DE17
DE16
DE15
DE14
DE13
DE12
DE11
DE10
