[Optional]

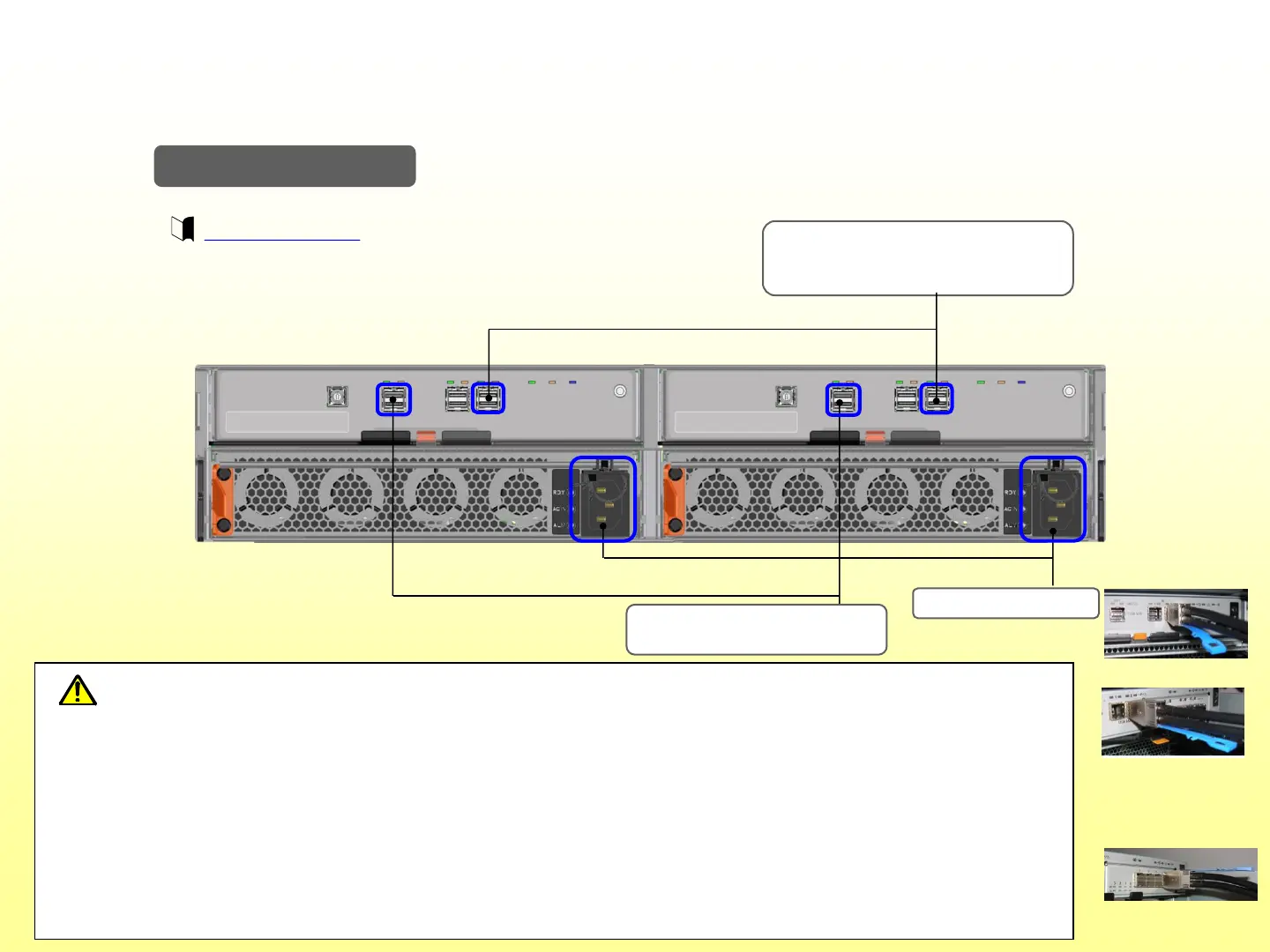

Note: Connect the power cable to the outlet after the connection of other cables is completed.
Power plug
Disk port (DP-OUT)
To Disk Enclosure on next level
To Disk Array Unit or
disk enclosure closer to Disk Array Unit
To power outlet
• When connecting a SAS cable, be sure to insert the connector in the correct direction. Connect the SAS cable so that the
pull tab faces down.
Note that the direction of the connector is opposite from that of the SAS host port (only for M110). In the case of the SAS
host port, the pull tab must face up.
• SAS cables have grooves in the connector that protect against incorrect insertion. Push the connector of the SAS cable
into the port securely until you hear a click. If you feel some resistance, the direction of the connector may be wrong. In
this case, do not insert the connector forcibly. Check the direction of the connector.
• When the connector has been inserted to the port correctly, it cannot be removed unless you pull the tab.
• If the link LED of the disk port does not turn on, or if the fault LED turns on, the direction of the connector may be wrong.
• A disk enclosure does not power on if both SAS cables are disconnected.
• When removing a SAS cable, be sure to remove the connector by pulling the pull tab straight along the cable.
DP0-IN
※A port next to DP0-IN is not used
DP-OUT
Disk port (DP0-IN)
8-3-4 Disk Enclosures
Disk enclosure
[AC power mounting model]
・Disk Array Unit
・Disk Array Unit
Disk port
・ Disk Enclosure
SAS Host port
To Next Page
