Appendix
46 ENGLISH

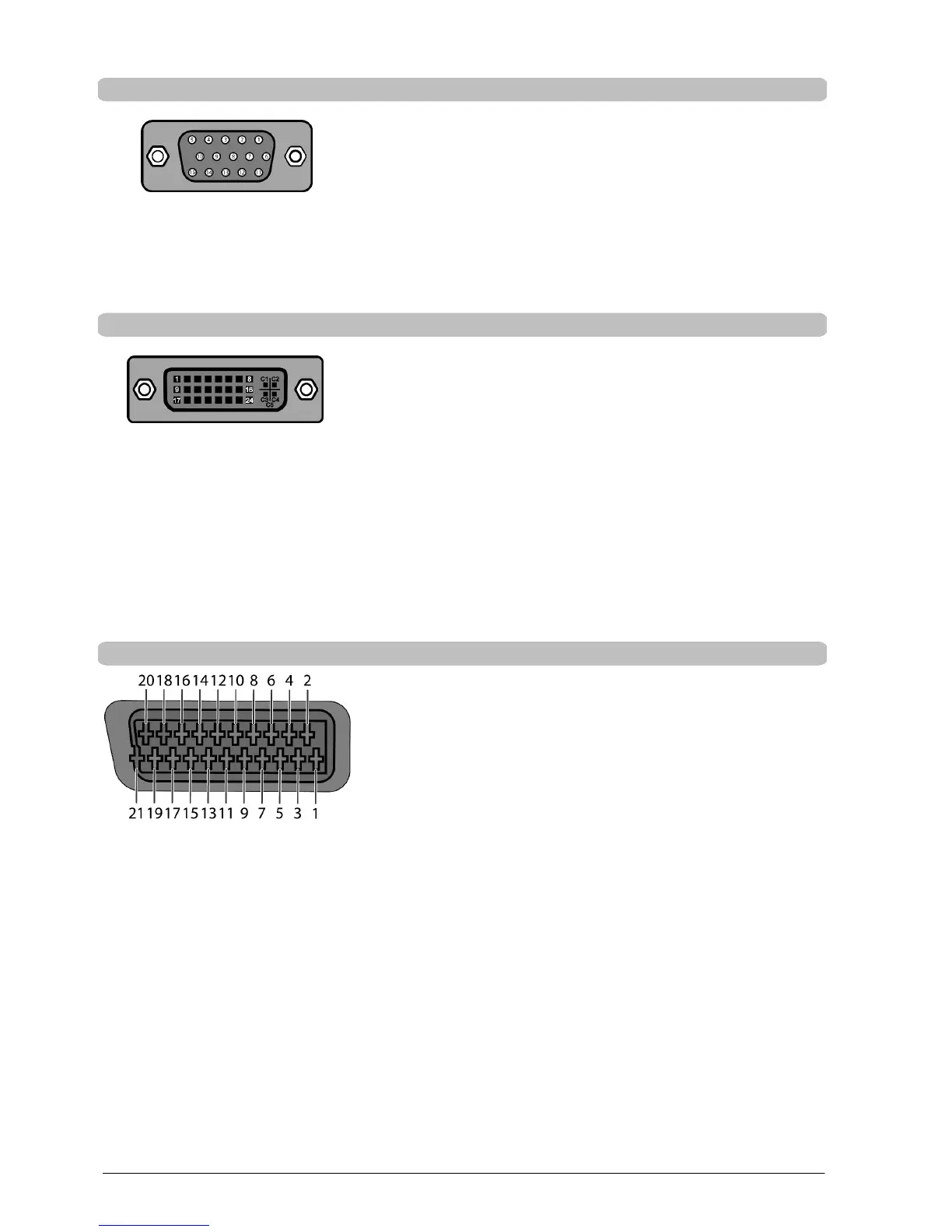

Connecting p in assignment f o r VGA
1 Red 6 GND (Red) 11 Not connected
2 Green 7 GND (Green) 12 DDC SDA
3 Blue 8 GND (Blue) 13 H-sync
4 Not connected 9 +5V 14 V -sync
5 Not connected 10 GND (Sync) 15 DDC SCL
Connecting p in assig nment fo r DVI-D
1 TMDS Data 2- 11 TMDS Data 1/3 21 TMDS Data 5+
2 TMDS Data 2+ 12 TMDS Data 3- 22 TMDS Clock Shield
3 TMDS Data 2/4 13 TMDS Data 3+ 23 TMDS Clock +
4 TMDS Data 4- 14 +5V Power 24 TMDS Clock -
5 TMDS Data 4+ 15 GND C1 Not connected
6 DDC Clock 16 Hot Plug Detect C2 Not connected
7 DDC Data 17 TMDS Data 0 - C3 Not connected
8 Not connected 18 TMDS Data 0+ C4 Not connected
9 TMDS Data 1- 19 TMDS Data 0/5 C5 Not connected
10 TMDS Data 1+ 20 TMDS Data 5-
Conn ecting pin assignments for SCART
SCART 1
1 Audio right output 8 Not connected 15 Not connected
2 Audio right input 9 GND 16 Not connected
3 Audio left output 10 Not connected 17 GND
4 GND (Common earth for audio) 11 Not connected 18 GND
5 GND 12 Not connected 19 CVBS output
6 Audio left input 13 GND 20 CVBS input
7 Not connected 14 GND 21 GND (Screening plug)
SCART 2
1 Audio right output 8 Switch input (5V to 12V) 15 Red input
2 Audio right input 9 GND (Green) 16 FB input (1V to 3V @75 Ohm)
3 Audio left output 10 Not connected 17 GND
4 GND (Common earth for audio) 11 Green input 18 GND (Red/Green/Blue)
5 GND (Blue) 12 Not connected 19 CVBS output
6 Audio left input 13 GND (Red) 20 CVBS input
7 Blue input 14 GND 21 GND (Screening plug)
