NEC UX5000 User Guide

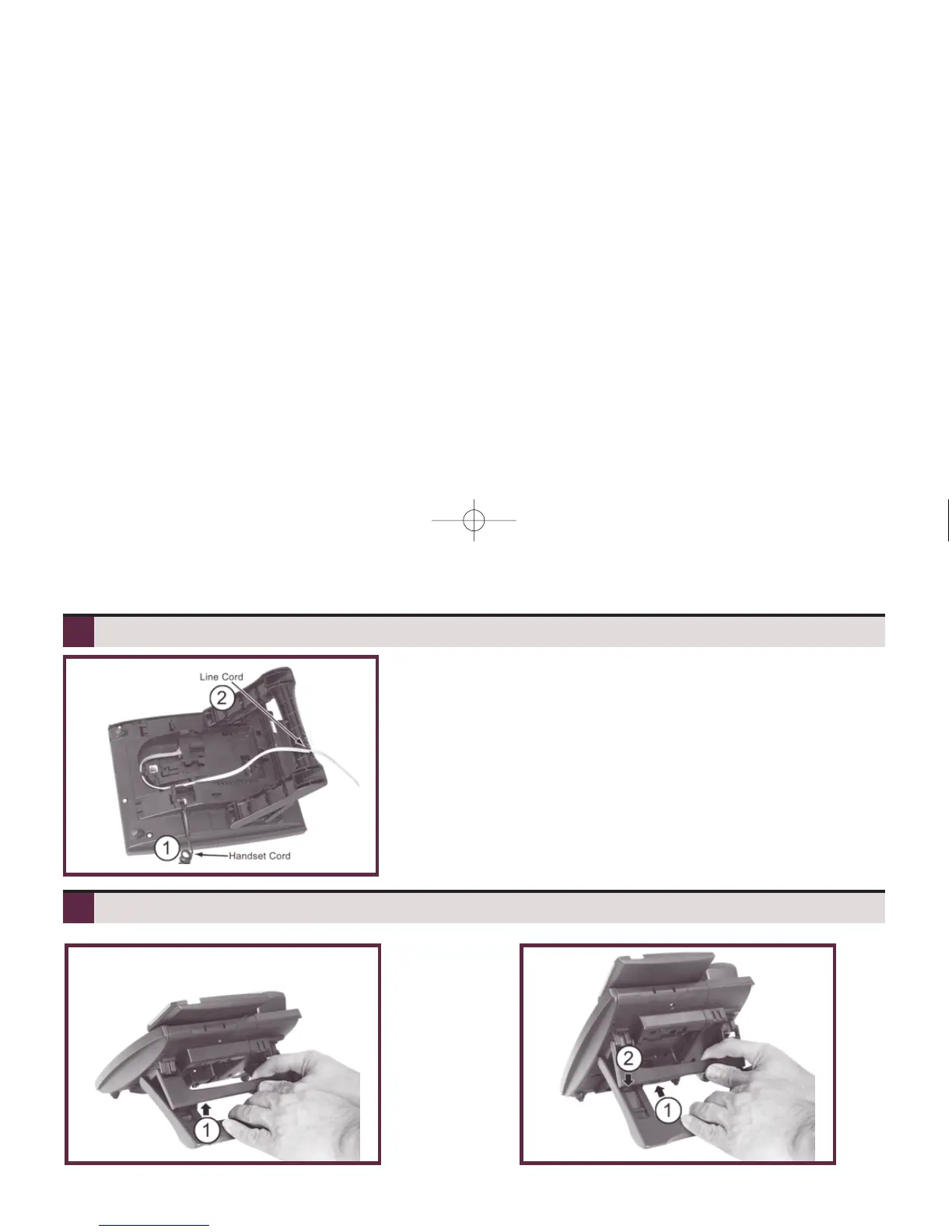

Installing the Handset And Line Cord
Adjusting the Five-Position Viewing Angle
When installing the handset and line cord:
1. Plug the handset cord into the handset jack on the
bottom of the terminal. The handset cord routes
through the lower channel on the right side of the
terminal base.
2. The line cord routes through the curved channel,
directed toward the back of the terminal, and then
secured in the notch located on the terminal legs.
To adjust the viewing angle position:
1. Secure legs and lift center brace.
To set a higher viewing angle position:
1. Slide brace up for adjustment.
2. Tabs will insert into desired slot
position located on legs.
2
0913401_rev4-01d.qxd 6/9/08 10:43 AM Page 2

NEC UX5000 Specifications

General

Brand	NEC
Model	UX5000
Category	Telephone
Language	English
