Removing the Base
NOTE: Always remove the Base when shipping the LCD.
1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. Insert the thin rod into the hole in the back of LCD monitor and using your thumbs, press the tabs on the back side of base
stand in the direction of the arrows the pull out the stand as indicated (Figure R.1).

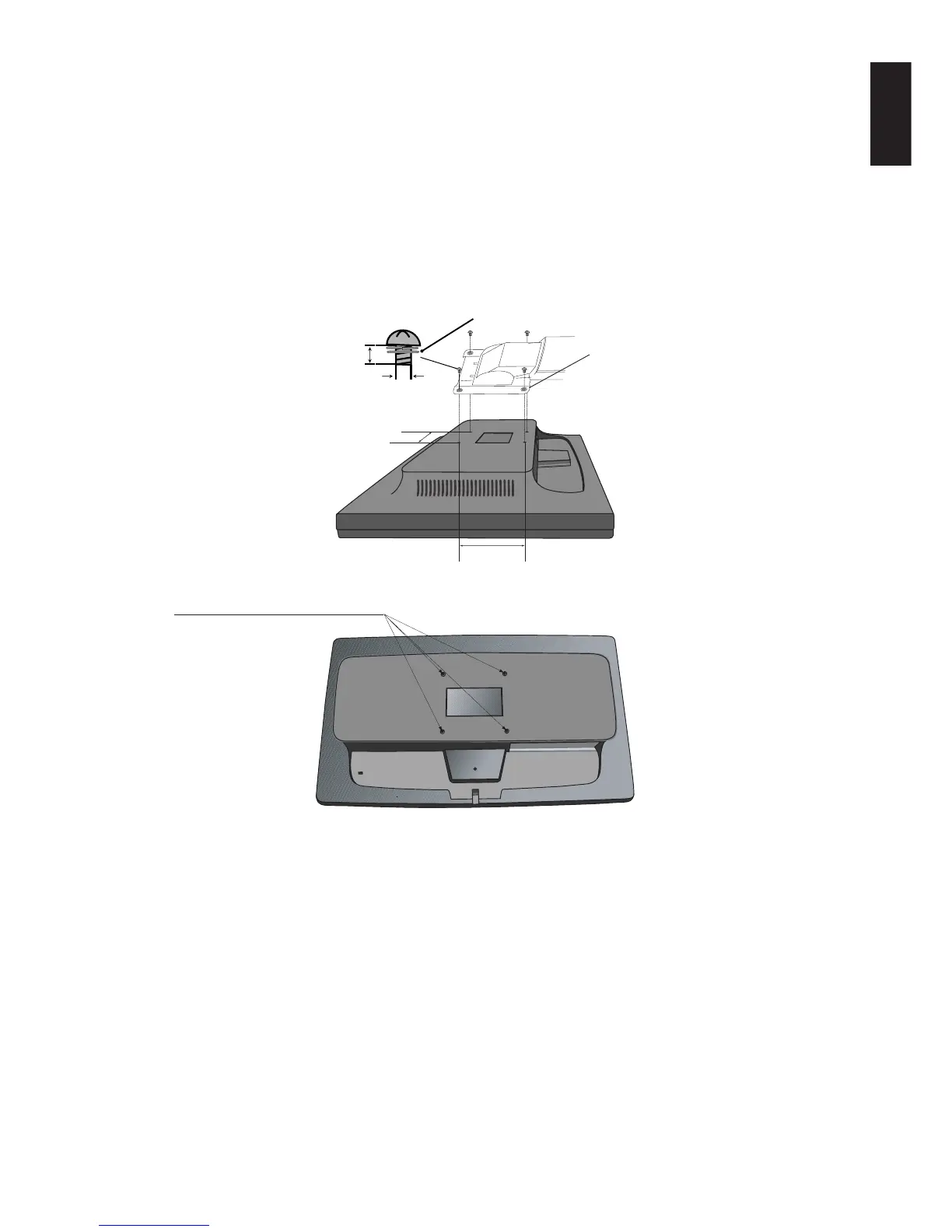

Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use the screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
4 x 12 mm with lock washer and flat washer
Tighten all screws
100 mm
100 mm
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
4-SCREWS (M4)
(MAX depth: 8.5 mm)
Weight of LCD assembly: 3.0 kg (MAX) - (V191W)
4.1 kg (MAX) - (V221W)
