Necchi Automatic Supernova Ultra Mark 2 - 5. To Thread Needle with Threader

Q
Open cover " F » (Fig. 8), bring lever
" G 11 down and insert bobbin, with its
flange provided with holes towards the
left, on spindle u E ». Push spindle • E »
towards the right and cover • F » will
remain open.
-
Hold with the left and the end of the
thread · hanging from the hole and run
machine: after a few turns the thread,
held by the hand, will be automatically
cut.
When bobbin is full, the bobbin winder
automatically stops and cover « F » snaps
back into place.
-
Open cover u F », press on lever « G »
and remove filled bobbin.

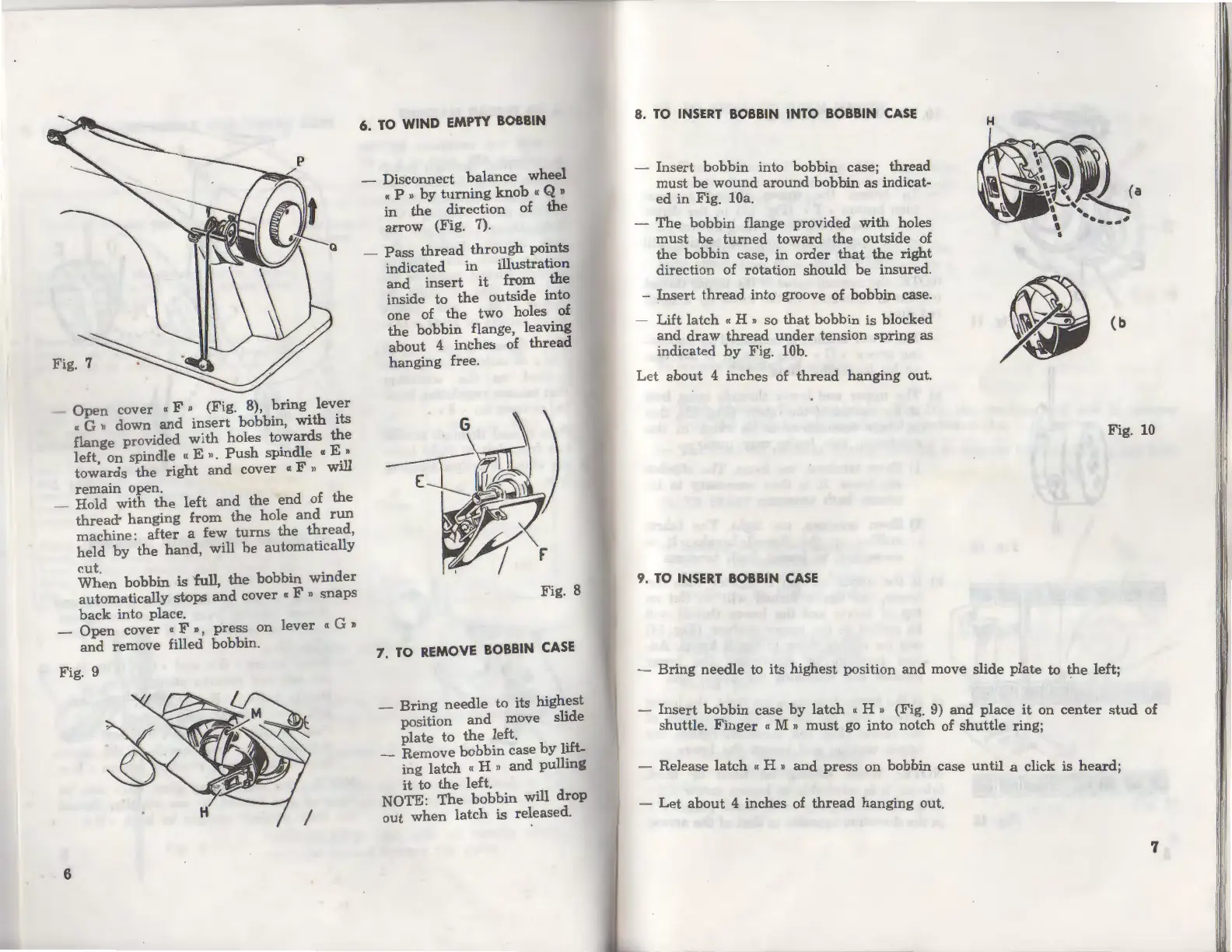

Fig. 9
6
6. TO WIND EM PTY BOBBIN
- Disconnect balance wheel
u P » by turning knob u Q »
in the direction of the
arrow (Fig. 7).
-
Pass thread through points
indicated
in illustration
and insert it from the
inside to the outside into
one of
the two holes of
the bobbin flange, leaving
about 4 inches of thread
hanging free.
Fig. 8
1. TO REMOVE BOBBIN CASE
- Bring needle to its highest
position and move slide
plate to the left.
-
Remove bobbin case by lift-
ing latch « H » and pulling
it to the left.
NOTE:
The bobbin will drop
out when latch is released.
8. TO INSERT BOBBIN INTO BOBBIN CASE
- Insert bobbin into bobbin case; thread
must be wound around bobbin as indicat-
ed in Fig. lOa.
-
The bobbin flange provided with holes
must be turned toward the outside of
the bobbin case, in order that the right
direction of rotation should be insured.
-
Insert thread into groove of bobbin case.
Lift latch u H » so that bobbin is blocked
and draw thread under tension spring as
indicated
by Fig. lOb.
Let about 4 inches of thread hanging out.
H
.(b
Fig. 10
9. TO INSERT BOBBIN CASE
- Bring needle to its highest position and move slide plate to the left;
-
Insert bobbin case by latch "H » (Fig. 9) and place it on center stud of
shuttle. Finger " M » must go into notch of shuttle ring;
- Release
latch u H » and press on bobbin case until a click is heard;
- Let about 4 inches of thread hanging out.
7
