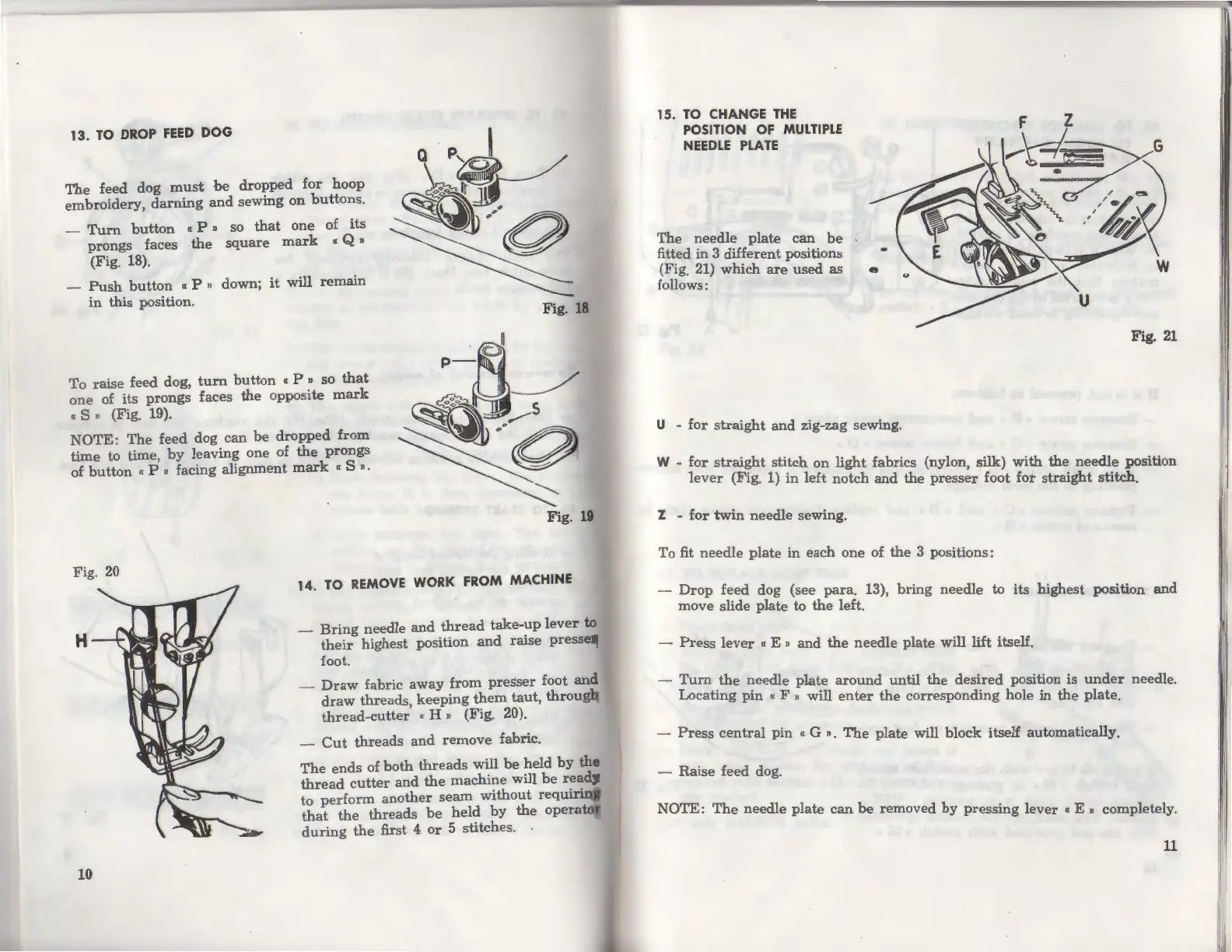

13. TO DROP FEED DOG
The feed dog must be dropped for hoop
embroidery, darning and sewing on buttons.
- Turn button « P " so that one of its
prongs faces the square mark « Q »
(Fig. 18).
-
Push button u P ,. down; it will remain
in this position.
To
raise feed dog, turn button « P,, so that
one of its prongs faces the opposite mark
" S ,. (Fig. 19).
NOTE : The feed dog c an be dropped from
time to time , by leaving one of the prongs
of button " P u facing alignment mark " S ,, .
. I
QP~~
~1'.
~j)···o
Fig. 18
p--~_/
~~/'s
~-·o
~
Fig. 19
Fig. 20
14. TO REMOVE WORK FROM MACHINE
H-+~ .... '"~"
10
- Bring needle and thread take-up lever to
their highest position and raise presser
foot.
-
Draw fabric away from presser foot and
draw threads, keeping them taut, through
thread-cutter "H » (Fig. 20).
-
Cut threads and remove fabric.
The ends of both threads will be held by the
thread cutter and the machine will be ready
to perform another seam without requirin&
that the threads be held by the operator
during the first 4 or 5 stitches.
15. TO CHANGE THE
POSITION OF MULTIPLE
NEEDLE PLATE
The needle plate can be
fitted in 3 different positions
(Fig. 21)
which are used as
follows:
U - for straight and zig-zag sewing .
Fig.
21
W - for straight stitch on light fabrics (nylon, silk) with the needle position
1ever (Fig. 1) in left n otch and the presser foot for straight stitch.
Z - for twin needle sewing.
To fit
ne e dle plate in each one of the 3 pos itions:
- Dr op feed dog (see para. 13), bring needle to its highest position and
move slide plate to the left.
-
Press lever " E » and the needle plate will lift itself.
-
Turn the needle plate around until the desired position is under needle.
Locating pin " F » will enter the corresponding hole in the plate.
- Press central pin " G ». The plate will block itself automatically.
- Raise feed dog.
NOTE: The needle plate can be removed by pressing lever " E » completely.
11
