THREE-THREAD OVERLOCK
WITH ONE NEEDLE
By threading the LEFT needle only a width
of 6 mm will be produced and by threading
the RIGHT needle only a width of 3.8 mm
will be produced.
Please keep the unused needle on the
needle pad as illustrated.
CONVERTING TO
TWO-THREAD USE
(Model 056 only)

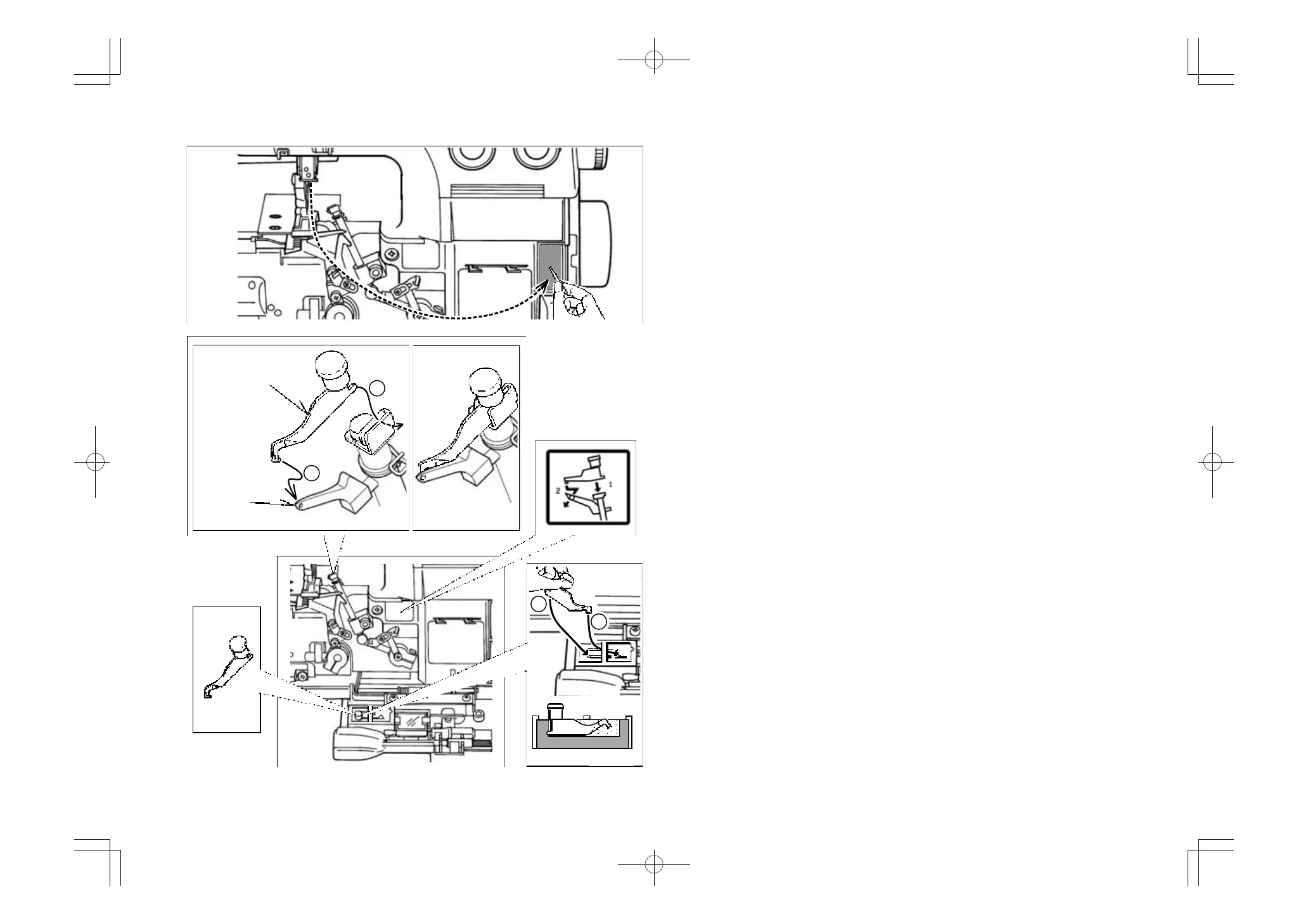

To convert to two thread use, first open the
front cover and working table and raise
needle to its highest point by turning hand
wheel towards you.
Pull out the convertor as shown in Fig. 1.
Attach the two-thread convertor onto the
upper looper as shown in Fig. 2, Fig. 3.
Remove the right needle and use the left
needle.
Please keep the unused needle on the
needle pad.
When not using convertor, insert it deep
and keep as illustrated in Fig. 4.
1
2
Fig. 2
Upper looper
Two-thread overlock
convertor
1
2
