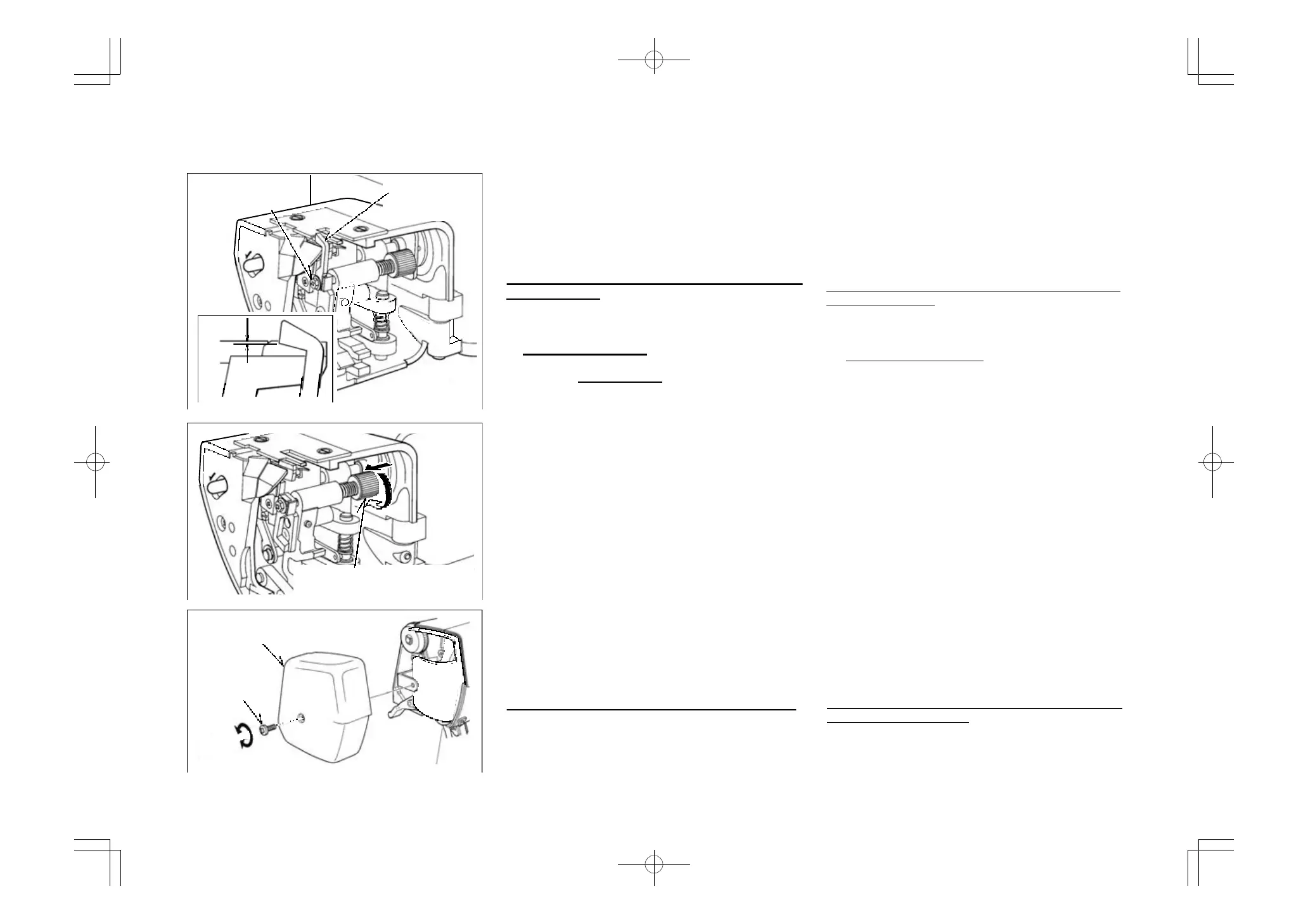

3. CARING FOR YOUR MACHINE /
REPLACING MOVING CUTTER
Replace a moving cutter if it becomes blunt as follows.
NOTE: You should not need to replace fixed cutter, which
is made of a special hard alloy material.
FIRST REMOVE THE POWER PLUG FROM THE SUPPLY
SOCKET-OUTLET.
1. Loosen screw and take out moving cutter.
2. Close the working table. Lower cutter driving arm to its
lowest position by turning the hand wheel towards you
by hand. In this position, set replacement cutter in
position and secure it with screw, ENSURING THAT THE
EDGE OF THE MOVING CUTTER IS APPROXIMATELY
0.5 MM BELOW THE SURFACE OF THE FIXED CUTTER.
DISENGAGING MOVING CUTTER
If you want to sew without cutting, open the working table
and disengage the moving cutter by pushing the cutter
release knob to the left and turning it towards you as
illustrated.
Ensure that fabric edge is not wider than overedge width
selected or upper looper and needle can be damaged.
REMOVING FACE COVER
Disconnect from power supply before removing face cover.
Remove the screw and take off the face cover.
Screw
Moving cutter
0.5 mm
Cutter release knob
Screw
Face cover
