Necta SINFONIA GF6 - Installation; Transport and Positioning Guidelines

Instructions
for Installer,
Maintenance Engineer
and final User
SINFONIA
Rev. 00
H4345 - 00 02/2013 Page 8 of 41
3 INSTALLATION
3.1 Transport and Positionning

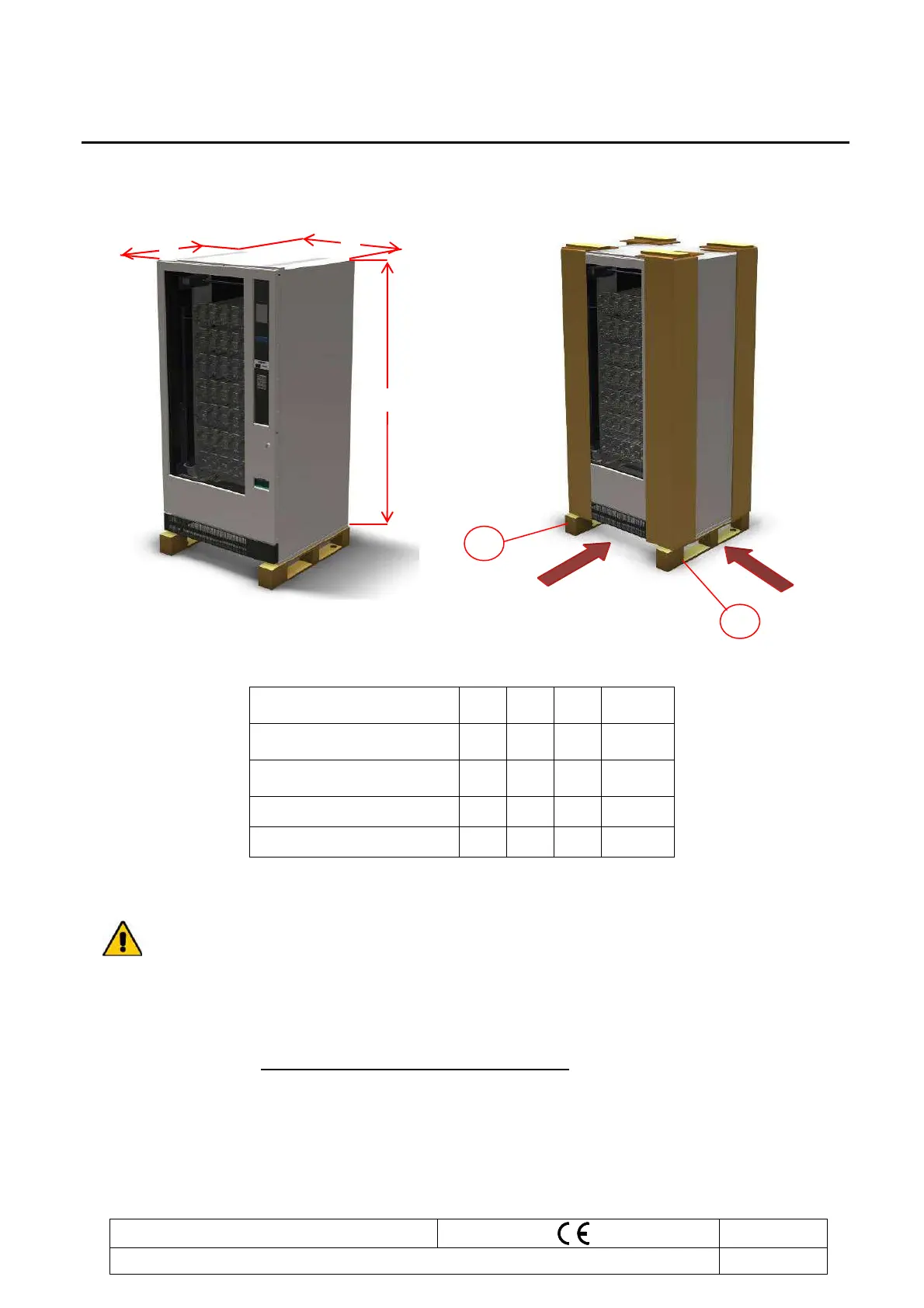

FIG. 3.1
MODEL
A
(mm)
B
(mm)
C
(mm)
WEIGHT
(Kg)
GF6-DR6
1830
860
(845)
950 290
GF9-DR9
1830
860
(845)
1220 340
GF6-DR6 packed
1830 880 960 295
GF9-DR9 packed
1830 880 1230 345
For transport and HANDLING of the vendor follow carefully the below instructions:
• Use a transpallet/forklift having a minimun loading capacity of 400 kg., the wooden base (A) permits
to fork the vendor on 4 sides (fig. 3.1).
• If installation is not immediate position the vendor vertically in a dry and covered area.
• CAUTION: it is absolutely forbidden to transport and/or position the vendor in a horizontal position.
• If the machine is mistakenly placed in a horizontal position, re-position it again in working
position (vertical) and wait at least12 hours before starting it, otherwise it would be possible to
cause damages or anomalies to the cooling unit.
• Place the vendor in the installation area, work with caution, avoid jumps and bumps.
• Free the machine from its packing, extract, from the back protection grill, the power cable and
carefully place it in the final position.
A
A
A
B
C
