All electrical installations must be done in accordance with all local
electrical regulations.
Use copper wire for all DC wiring connections to the PowerRouter. Volt-
age drop and other considerations may dictate that higher diameter wires
be used. Use only solid or stranded wire but not ne stranded wire.
An external DC disconnect (switch or terminal) for the PowerRouter must
have a minimum rating of 600 V DC and 15 A continuous.
Serial fusing may be required depending on the type of PV module and
conguration used in the system.

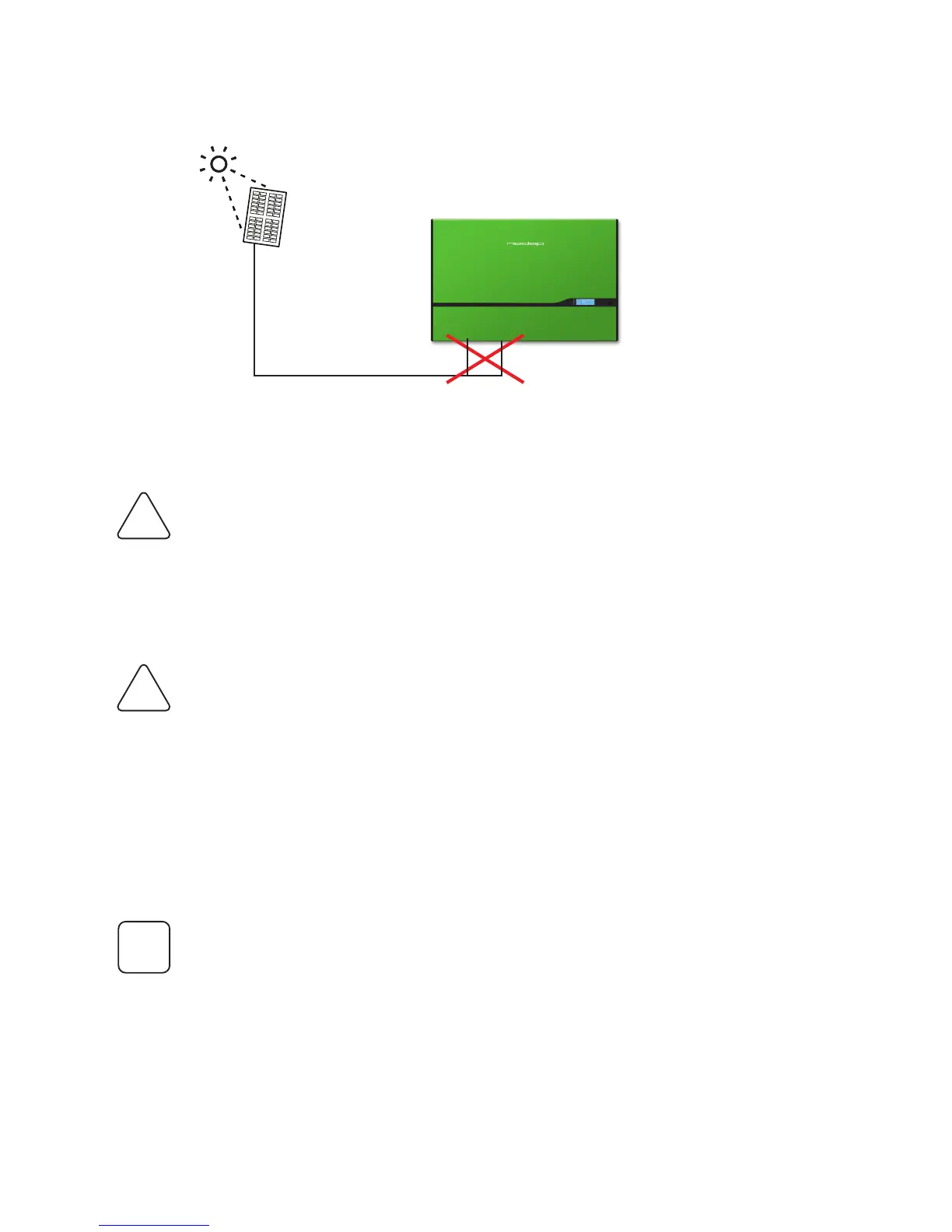

Figure 14 do not connect 1 string to both PV terminals simultaneous
The PowerRouter models are provided with 2 independant inputs, there for
not connect 1 PV-string on both PV terminals simultaneously
