Appendix H PV-MS tool

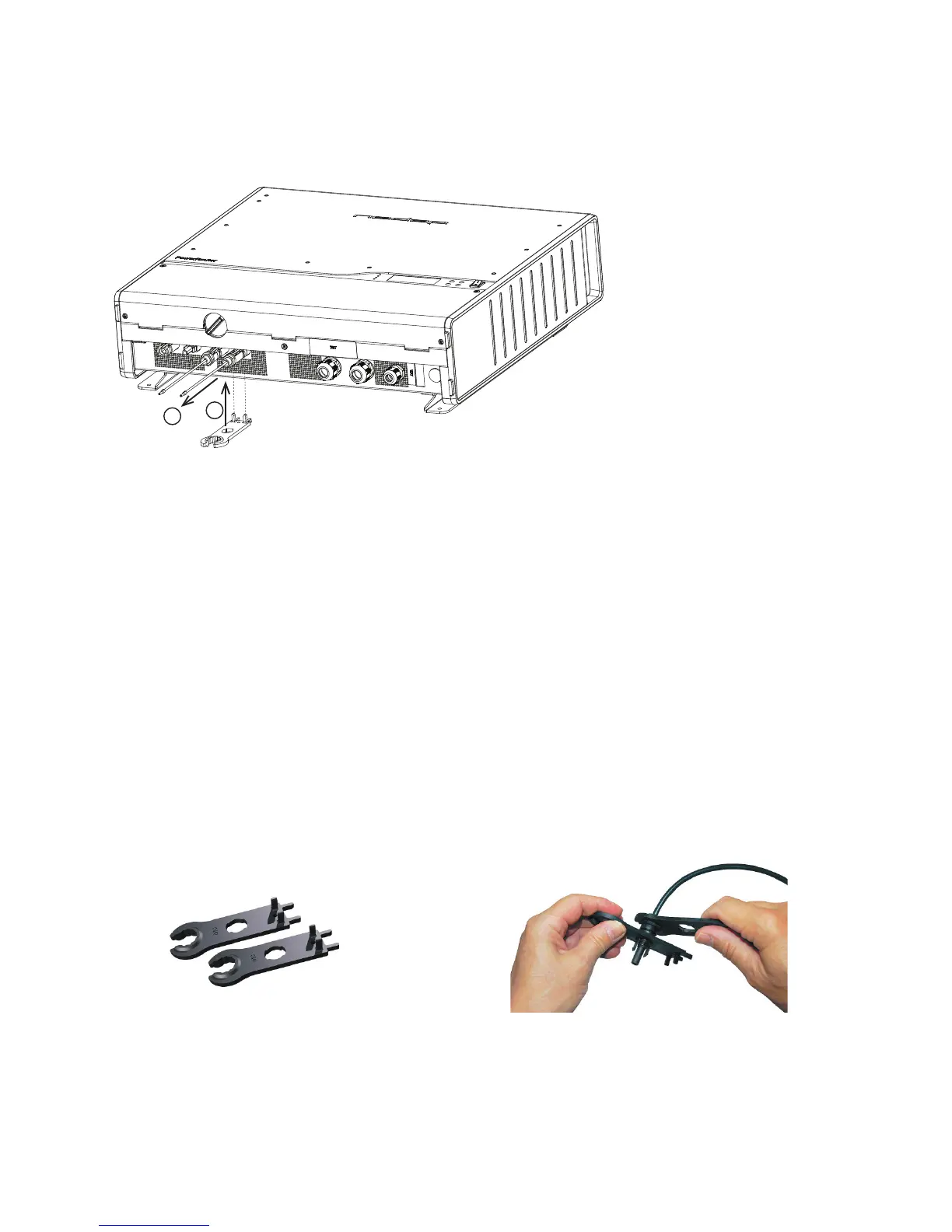

Figure 35 Disconnect the PV connector from the PowerRouter with pv-ms tool.
In order to prevent damage on the PV connector during disconnection of the PV
from the PowerRouter, it is advisable to use the pv-ms tool to open the PV con-
nector locking device..
PV disconnection procedure
1. Move pv-ms tool with the pins to the connector
2. Pull the pv connector out of the PowerRouter
Figure 36 The pv-ms tool set. Figure 37 Pv-ms tool to tighten and
unscrew the cable gland.
The pv-ms tool
This tool is not delivered with the PowerRouter, Installers can order the tool from
Multi-Contact at www.multi-contact.com
Type: PV-MS
Order no.: 32.6024
Designation: Open-end-spanner set
2
1
