TRANSIT Entry Quick Installation Guide Page 3 of 7

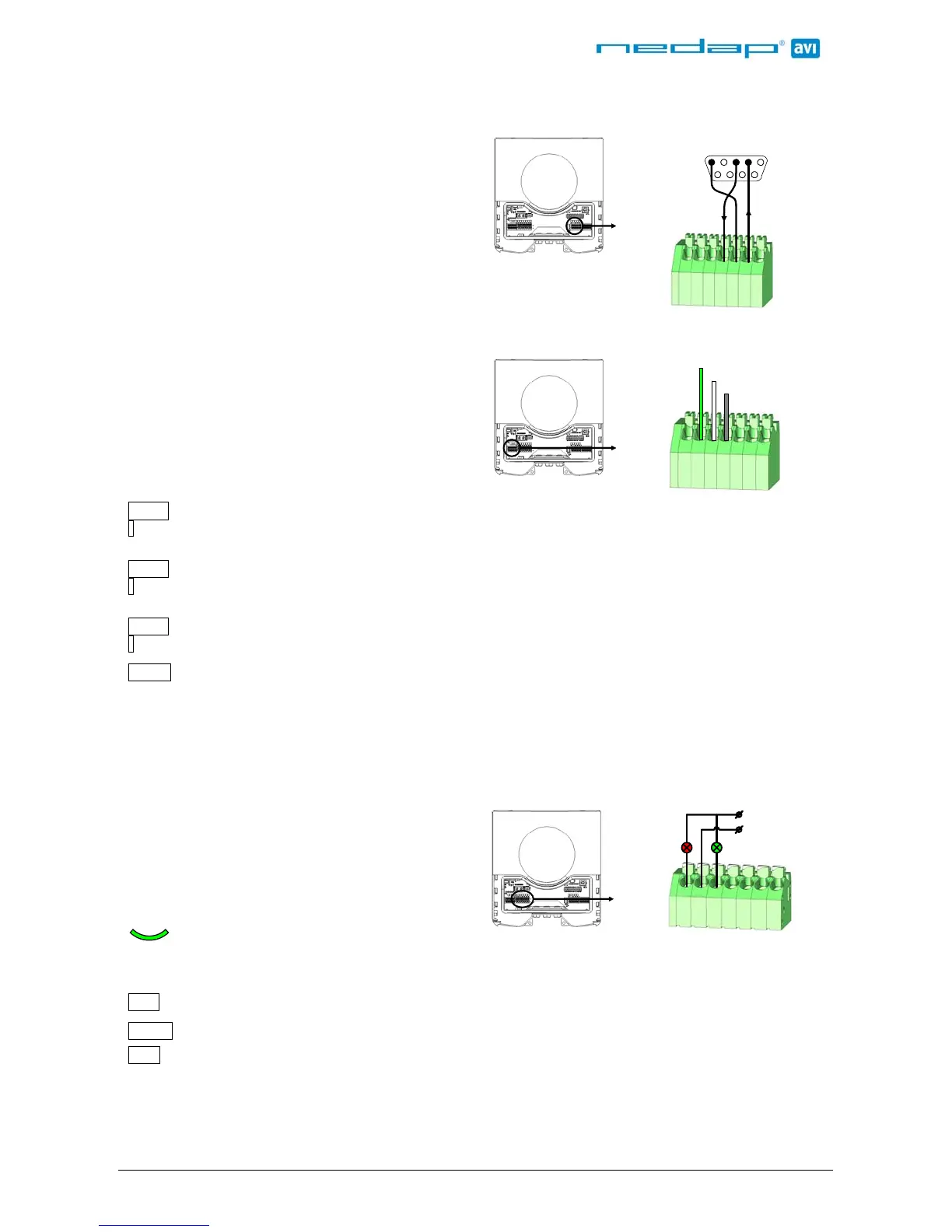

4.1 RS232 connection
The TRANSIT Entry has an on-board RS232
interface. This interface does not support any
hardware handshake signals. The communication
protocol, baud rate, data format and flow control
depend upon the reader firmware. See firmware
manual for details
TXD
GND RXD
K3
DIN9 FEMALE TO HOST
1 2
3 4 5
6 7 8 9
4.2 WIEGAND, MAGSTRIPE, BARCODE connection
The synchronous communication interface wiring
depends upon the selected communication protocol
and the reader firmware. Please refer to the
firmware manual for more details.
Connections:
WIEGAND MAGSTRIPE BARCODE
OUT1
- Card Loaded -
OUT2
Data-0
(green)
Clock -
OUT3
Data-1
(white)
Data Data
GND
Ground
(black)
Ground Ground
GND
OUT3
OUT2
K2
OUT1
GND
DATA-1
DATA-0
Note: Maximum cable length 150 meters (500 feet)
Step 5 Digital I/O
5.1 Relay output
The relay output is automatically activated upon
identification of a transponder. This behavior can
be changed and configured by means of the
firmware. Please refer to the firmware manual for
more details.
The ‘smile’ on the front cover lights-up
simultaneously with the relay output.
Connections:
NC
Relay contact normally
closed
COM
Relay contact common
NO
Relay contact normally open
Contact ratings:
Max. switching current: 2A
Max. switching voltage: 250VAC / 220VDC
NO
COM
NC
K5
CONTACT
SUPPLY
