COMPRESSED AIR CONNECTION
Filter regulator, should
be set on 0,4 - 0,6 MPa
(4 - 6 bar / 58 - 87 psi)
(accessory)
IMPORTANT!
• The compressed air supply pressure has
to be = 0,5 - 0,6 MPa (5 - 6 bar / 72 - 87 psi).
• The compressed air shall have a dew point
below the minimum temperature at which the
system is ment to be used.
• The compressed air supply must be both oil
and water free.
• Improper air pressure or contamination in
the compressed air can result in cleaning
valve failure, poor cleaning and lter
performance.
• Purge compressed air lines to remove debris
before connecting to the compressed air
manifold.
• Do not use thread-sealing tape after the
lter regulator.
• Quick couplings throttle the air too much
and are not recommended.
• Turn o and bleed o compressed air supply
before doing any service work.
• Do not pressurise the system if the air tem-
perature is below the minimum operating
temperature, that is -20 °C. At lower air tem-
perature the process could be started and be
in operation for a while (approx. 15 min.) after
which the system can be pressurised.
Connect the compressed air supply line to the
compressed air connection of the lter. Use pipe
sealant on all compressed air connections.

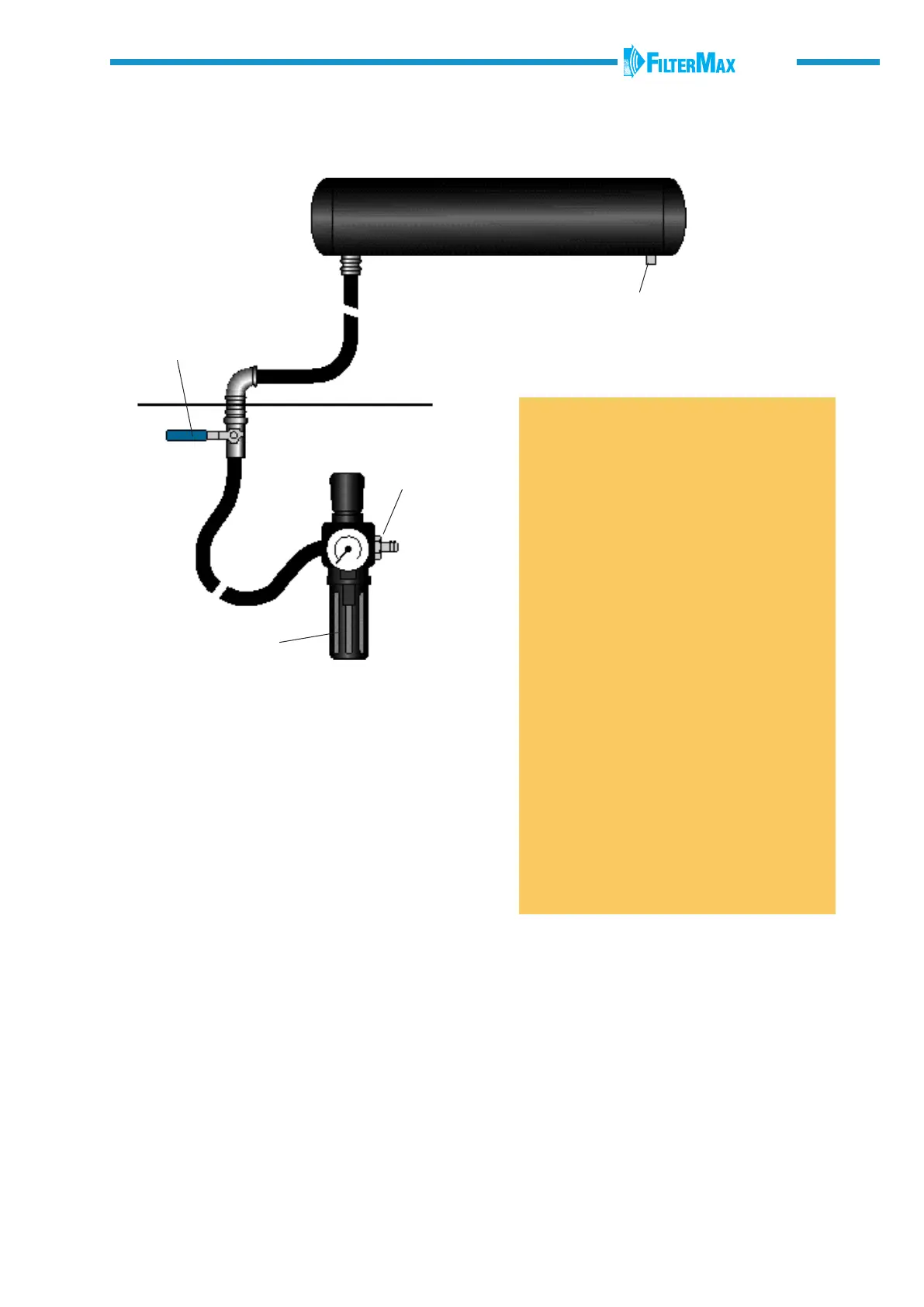

Compressed air components
(accessories, see page. 22)
A shut o valve for service work and a lter regulator
should be installed in the compressed air pipe line
(NB the ow direction during the installation).
Important! the lter regulator must be positioned
in a frost free environment.
Recommended connection size: minimum 1/2".
Water drain valve
Compressed air tank
Sevice valve
(accessory)
Compressed
air connection
