Nederman FilterMax C 25 - Earth Control Measuring; Fan Diagram; Applications

C 25
When the FilterMax C 25 has been installed and
during maintenance work the earthing shall be mea-
sured.
9
EARTH CONTROL MEASUREMENT
Earth control measuring must only be done
by a person with necessary knowledge.
IMPORTANT!
All metal parts of the lter unit must be
earthed reciprocally and connected to earth.
The measuring is done between GND (see page 7)
and the following components on FilterMax C 25. Dis-
connect protection earth from GND before measuring.
1. Filter module
2. Door
3. Dust container
4. Filter cartridges (only antistatic Poly Web lter)
Reconnect protection earth to GND.
Nederman FilterMax C 25 separates for instance
welding fume, metal oxides, talcum, lime stone, paint
powder and grinding dust.
FilterMax C 25 must not be used for separating
explosive contaminations.
Explosive dusts are dry organic dusts and some
metallic dusts. The metallic dusts are, for example,
aluminium, magnesium, titanium, chromium and
ne virgin dusts of other metals. Welding fumes from
these metals are not explosive, but grinding dust is a
problem. Please contact your Nederman representa-
tive in case of doubts.
Various combinations of semi combustible fumes/
dusts (oil, grease) and sparks can cause res when
grinding or welding. The most important action is to
prevent sparks from entering the extraction devices.
Secondly it is very important to perform regular clea-
ning of the extraction arms/devices and the
duct system.
FilterMax C 25 does not separate gases.
APPLICATIONS
WARNING!
Risk of personal injury!
• In some countries the puried air must not be recycled in
the workshop if FilterMax C 25 is used to separate welding
fume or some contaminations that may be a health hazard.
Risk of re or explosion!
• Do not use FilterMax C 25 to separate explosive
fume or dust.
• Grinding, welding or other hot works on the lter exterior
or inlet must not be done without cleaning and stopping
the operation.
• Connect a re alarm to FilterMax C 25, which means
the lter will stop at a possible re.
• Care should be taken when working with painted or oiled
material. Consult your Nederman representative
for advice.
• FilterMax C 25 must not be exposed for burning/glowing
material.
• At high risk of re a re extinguisher should be installed.
Total pressure
(Pa)

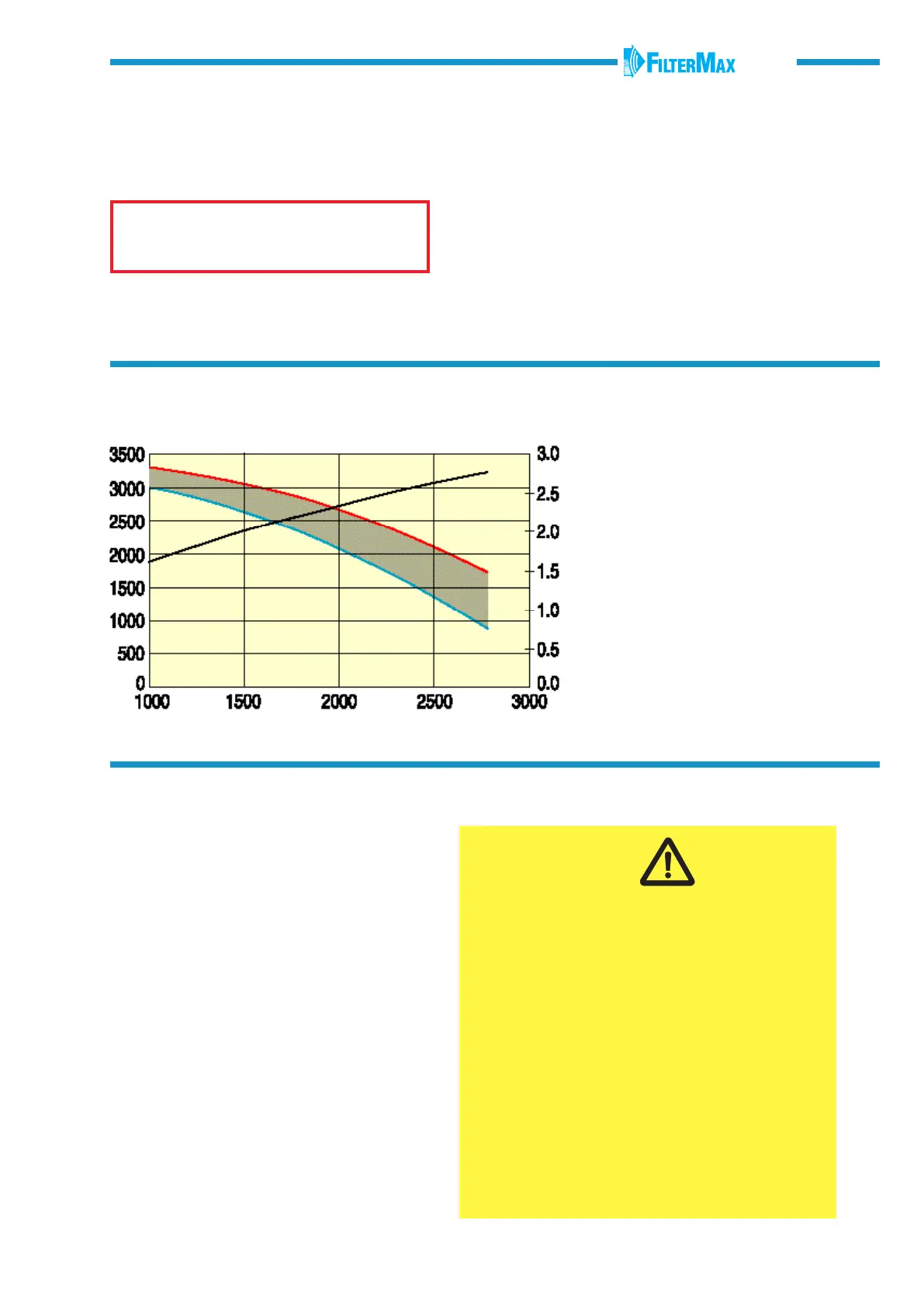

FAN DIAGRAM
Air ow (m
3
/h)
clean lters
Working pressure
