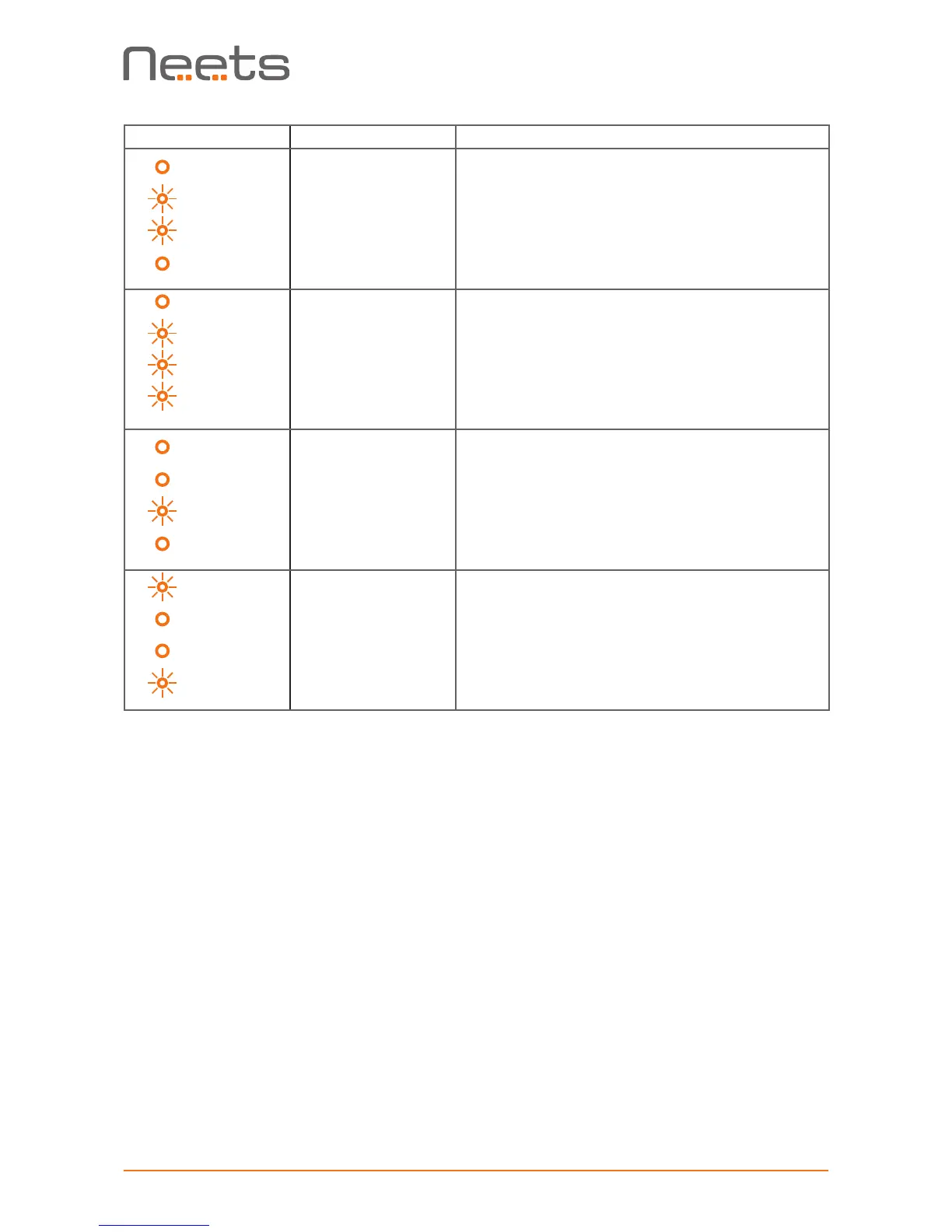

LED shows Description Solution
1 Off
2 Flashing
3 Flashing
4 Off
No contact to Neets
network unit.
o Check to confirm the SN used in the Project
Designer matches the one for the Neets unit on
your network.
o Check LAN connection to the Neets network
unit.
1
Off
2
Flashing
3
Flashing
4
Flashing
Firmware upgrade
Neets network unit
o One or more of the Neets network units used in
the current project needs a firmware upgrade
before it will work with this project.
1 Off
2 Off
3 Flashing
4 Off
Error in serial
number
o You need to return the unit to Neets or your
local dealer for replacement/repair.
1 Flashing
2 Off
3 Off
4 Flashing
Resuming factory
default settings
o When pressing Switch 1 and 4 during power
on, the system will delete the current settings
and resume factory default. This method is only
intended to be used if the control system locks
up and enters “Unexpected Error”
