Appliance door en
33

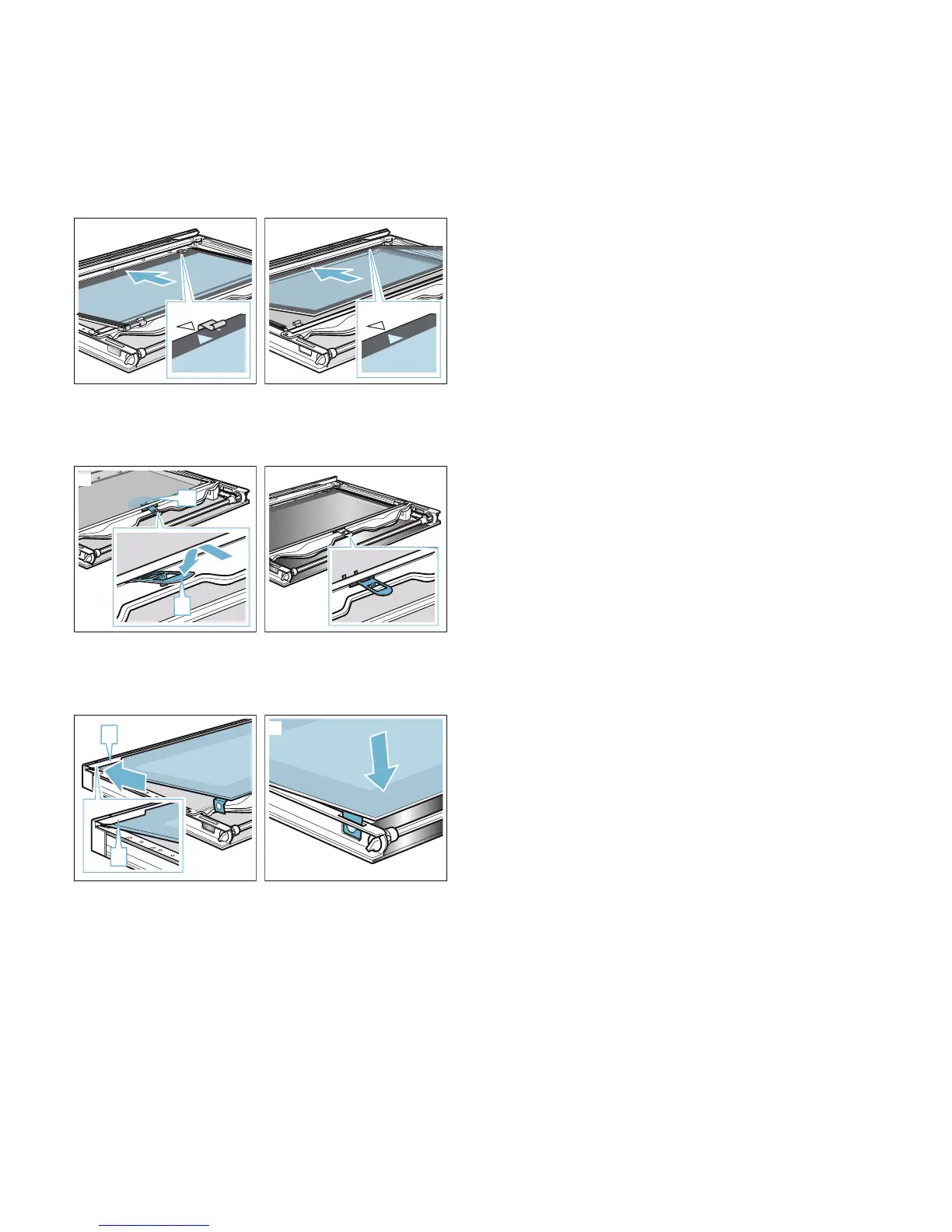

3. Insert the intermediate panel with the seals and
spacers. The arrow on the intermediate panel must
line up with the arrow on the frame (Fig. $).
4. Insert the second intermediate panel without the
seals and spacers and push it in the direction of the
arrow until it is fitted in the frame. The arrow on the
intermediate panel must line up with the arrow on the
frame (Fig. %).
5. Push the intermediate panel downwards in the ƒ
area, insert the „ holder at an angle and push down
until it locks into place (Fig. &).
The holder is inserted (Fig. ').
6. Insert the inner glass into the mounting rail … at an
angle towards the back (Fig. ().
7. Push the inner glass downwards until it locks into
place (Fig. )).
F
E
G
G
