en Appliance door
26

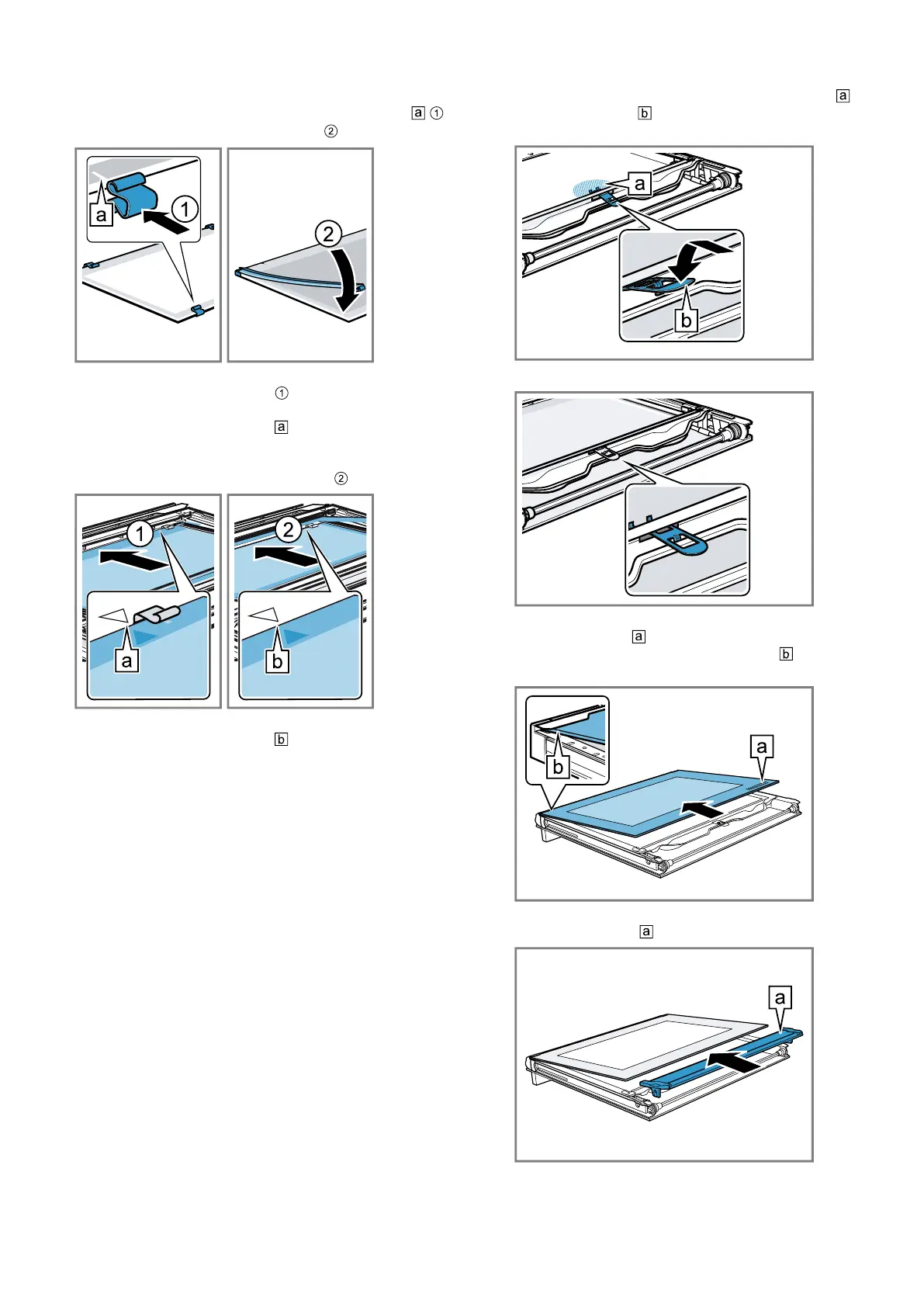

2.
Check the fit of the four spacers and two seals.
‒ Place the spacers on the centre of the lines .
‒ Secure the seals at the corners .
3.
Insert the intermediate pane with spacers and seals
in the direction of the arrow .
The arrow on the intermediate pane must line up
with the arrow on the frame .
4.
Insert the second intermediate pane without the
spacers and seals, and slide it in the direction of the
arrow until it is inserted in the frame .
The arrow on the intermediate pane must line up
with the arrow on the frame .
5.
Push down on the intermediate pane around ,
slide the retainer in at an angle and push down
until it clicks into place.
a The retainer has been inserted.
6.
Place the inner pane onto the appliance door so
that the number is legible at the bottom right. In-
sert the inner pane into the fixing rail at an angle
towards the back.
7.
Carefully lift the inner pane upwards at an angle and
attach the holder .
