en Installation
14

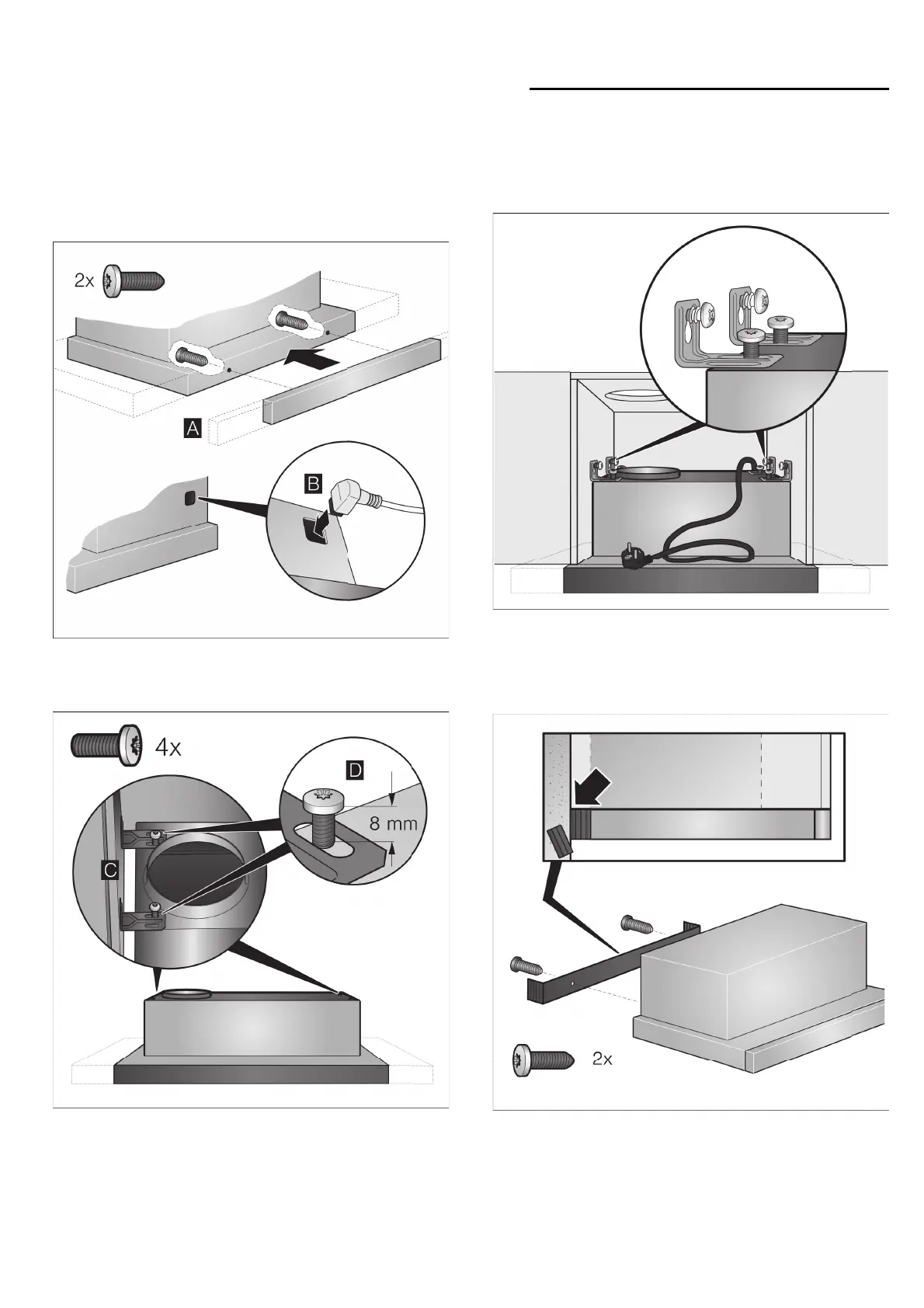

Prepare the appliance
A handle strip must be screwed into the filter pull-out.
This can be a supplied handle strip or one that is
available as an accessory
1. Use the enclosed screws to secure the handle strip
to the filter-pull-out. ¨
2. Insert the enclosed power cord into the appliance. ©
3. Screw the four angle brackets into the appliance.
Observe the position of the screws.ª When doing
so, screw in the screws to a distance of 8 mm. «
5Installation
Installation
Installation
1. Use the angle brackets to hang the appliance on the
screws and align it.
2. Measure the distance from the appliance to the wall
and mark this on the filler strip.
3. If required, shorten the filler strip to the required
dimension.
4. Remove the appliance and screw in the filler strip.
5. Remount the appliance, align it and screw it in place.
Carefully screw in all screws.
6. Establish the electrical connection.
