NEJE E80 User Manual

Quiet Design: (Dynamic adjustment) Drive the built-in control IC, judge the working state
and adjust the fan.
ESD Design: Yes
Temperature feedback: Yes
Recommend Cutting & Carving Depth: <16mm (The data is tested by NEJE users, and it needs to
be done under more accurate focusing and adding correct and certain strength of air
assist.)
Stainless Steel Carving: Yes
0.1mm Stainless Steel Cutting: Yes

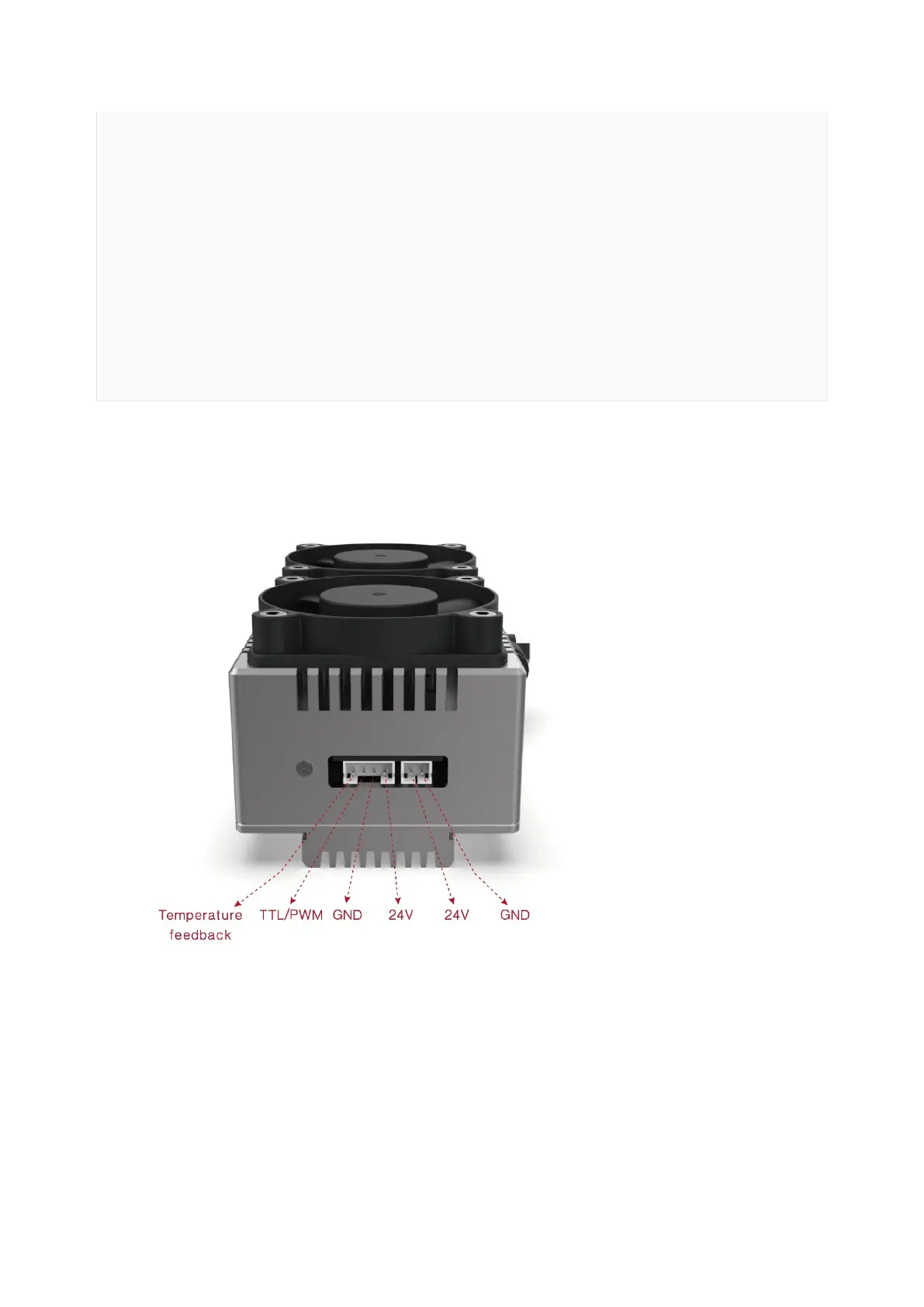

Interface
24V: Power positive.
GND: Power ground or power negative.
TTL/PWM: TTL = PWM, input 3.3V~24V to turn on laser module, connect to GND to turn off
laser module.
Temperature: do not connect, please ignore.

NEJE E80 Specifications

General

Input Voltage	DC 12V
PWM/TTL Input	TTL
Adapter plug	5.5mm x 2.1mm
Laser Power	10W
Supported Materials	Wood, Leather, Paper
Connection	USB
Software Compatibility	LightBurn, LaserGRBL
Operating System Compatibility	Windows, macOS, Linux
