Nelson NCD+ 1000T User Manual

NCD+ 1000T & 1600T Manual | Connection and Installation
Part No. 729-110-038 Rev. 1.21 | May 2016 7 © 2014 Nelson Stud Welding, Inc. All Rights Reserved.
1.2 Connection
With the exception of the input power cable, all of the connections are located on the front plate of the
NCD+.
Prior to any connection work, the NCD+ welding unit must be switched off.
The input power switch must be in the >>0<< position.
1 Gun Welding Cable Connection (-) x1
2 Gun Control Cable Connection x2
3 Workpiece Ground Cable Dual
Connection (+) x3
4 Input Power Cable Connection
1
2
3

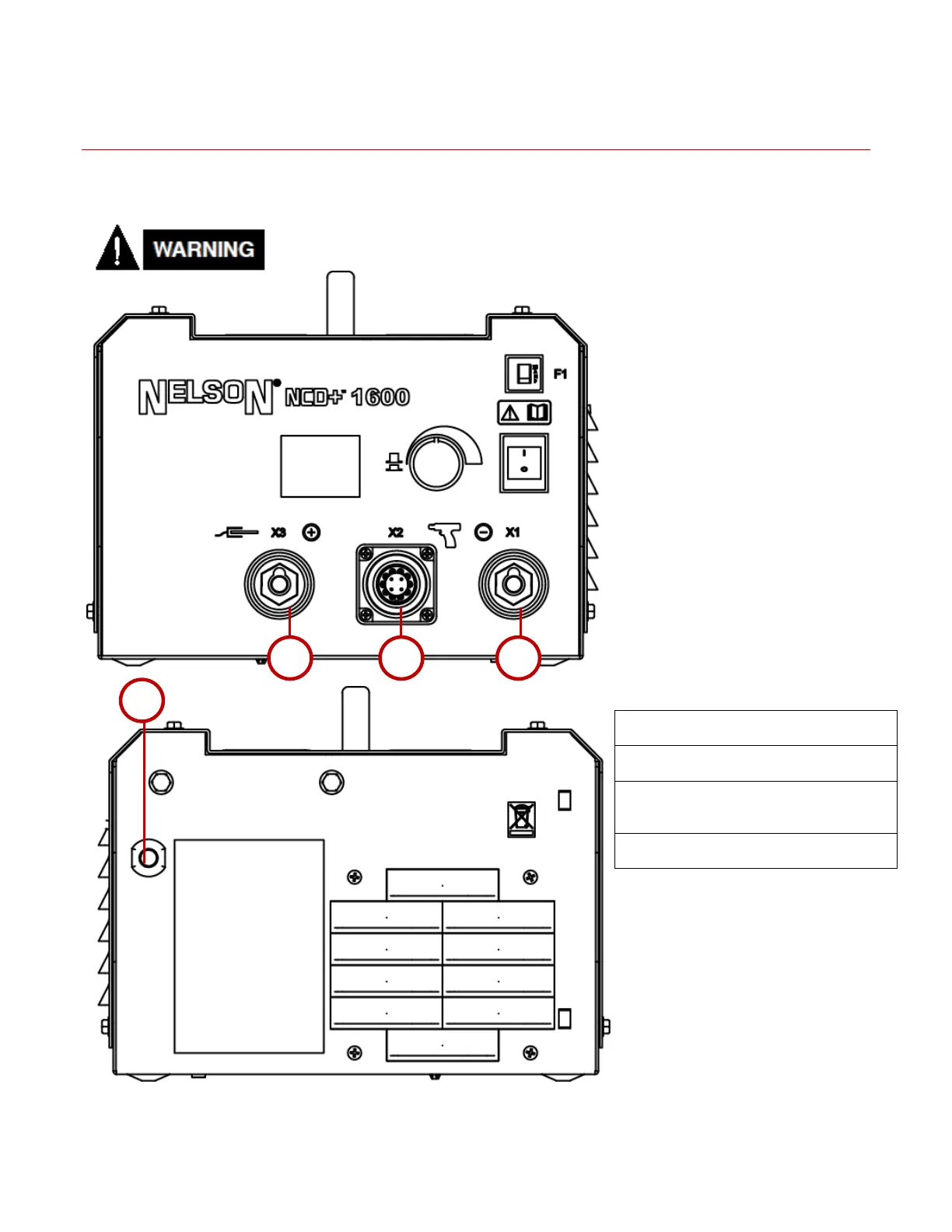

Figure 1.1 NCD+ Connection
3
2
1
4

Nelson NCD+ 1000T Specifications

General

Brand	Nelson
Model	NCD+ 1000T
Category	Welding System
Language	English
