Nemtek DRUID - Configuration Diagram and Jumpers; Jumper Operation Settings Explained

6
Out
EARTH
+
+
+
-
-
-
Relay
Board
Radio
Alarm
N.O.
ALARM INPUT
COM
BATT +
RET RET
Out
FENCE
18VAC
INPUT
12VDC
Siren
Strobe
Light
PC BOARDPC BOARD
JP1
JP2
JP3
N/C
Gate Switch /
Panic Button /
On/Off Switch
JUMPER OPERATION
Function JP1 JP2 JP3 Energizer Operation
Gate Alarm out in out Switched Input delayed for 4 minutes
with energizer On only
Gate Alarm in out out Switched Input delayed for 1 minute
with energizer On only
Panic Alarm out out out Switched Input instantaneous (panic
alarm) with energizer On or Off
High/Low
Voltage
Mode
in in out Switched Input toggles the energizer
between High Voltage and Low Voltage
mode
Remote On/Off out out in Switched Input acts as remote On\Off
switch
Remote On/Off
indication and
Gate alarm
in out in Strobe indicates fence is On or Off,
Switched Input delayed for 4 minutes
with energizer On only
Not yet
available
out in in Service Alarm disabled, Switch Input
delayed for 4 minutes with energizer On
only
in in in Reserved for factory use
All other Jumpers are reserved for factory use only

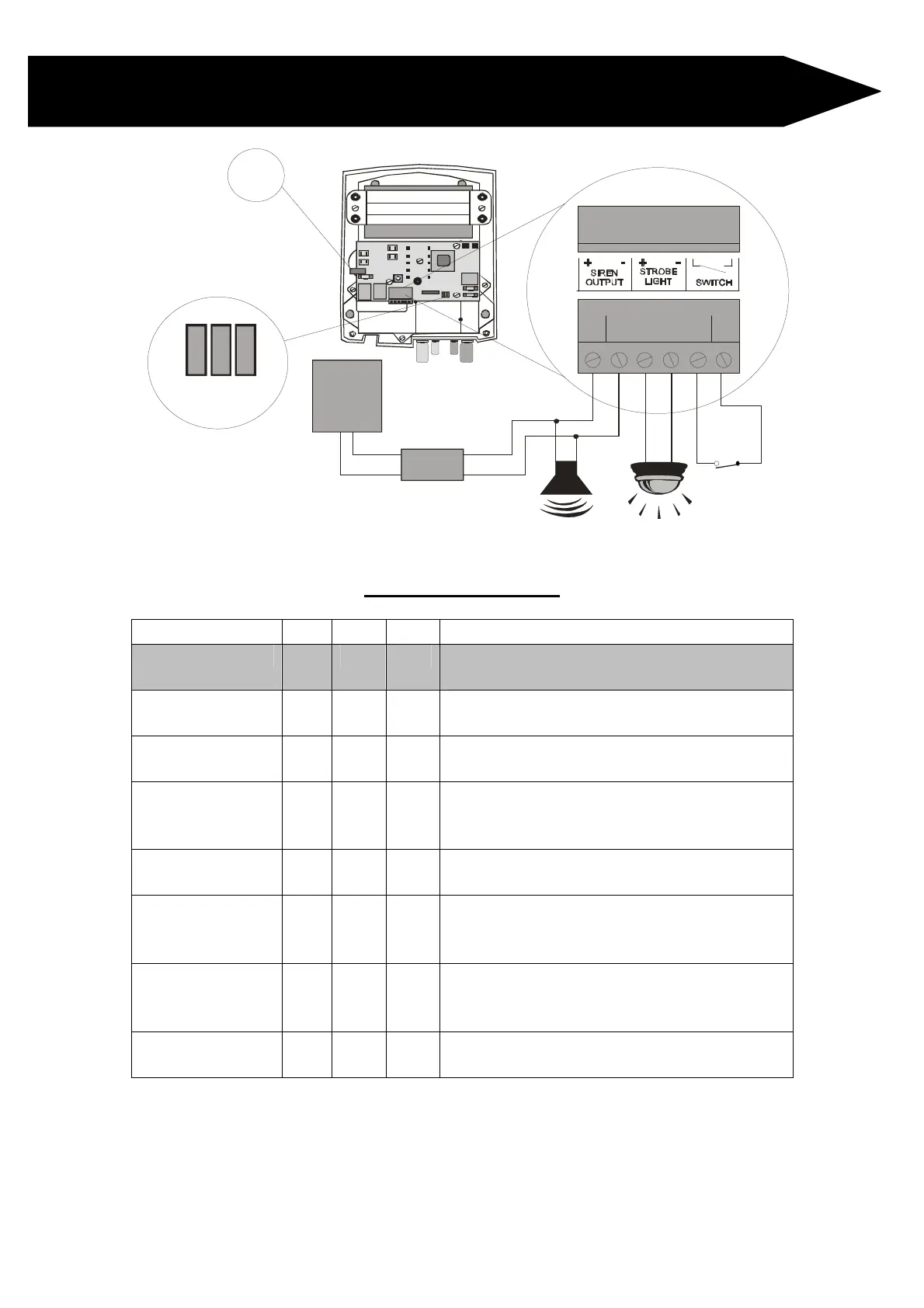

DRUID Connection / Configuration Diagram
