USER MANUAL
OPERATOR INTERFACE
4
NEOFOLD S
VERSION: NLF_PB-S-2015-1S-GB
21
Position Description
1
2 digit display to show the margins and the diagnostic messages
2
Free folding width 210 mm
3
Free folding width 190 mm
4
Free folding without compensation
5
Free folding with compensation on the left on the second-last folding
6
Free folding with compensation on the right on the second-last folding
7
Compensated fold with a keyboard selectable margin of 20-25-30 mm
8
Increasing and decreasing margin selection
9
Ejection key
10
Cross Fold key –Maximum size A0

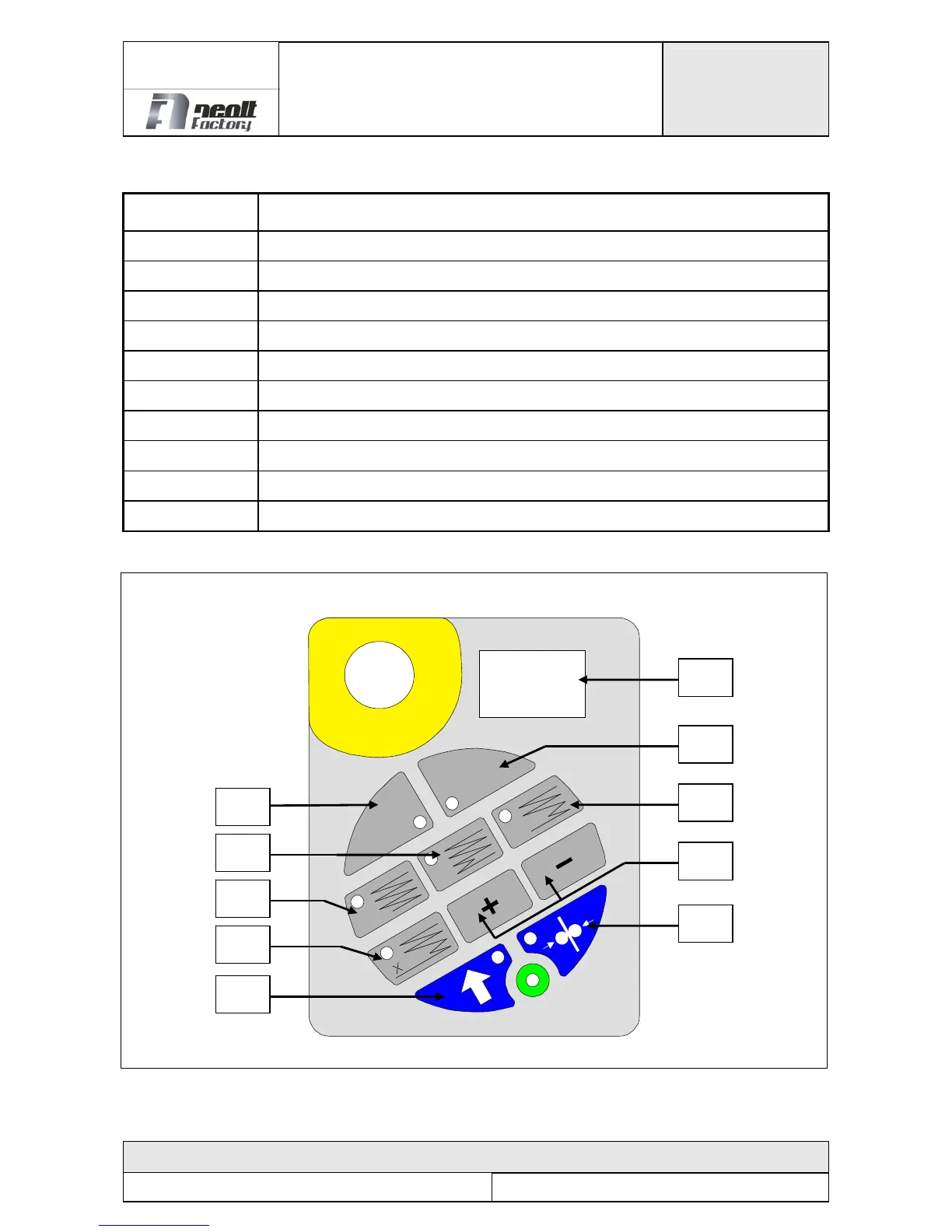

Fig. 4.1 Commands and Messages
1
9
0
2
1
0
88
3
5
4
9
7
1
2
6
8
10
