Neolt Neofold 920 S - Operating Test Description 8.2; Folding-Machine Functional Test 8.2.1; Sensor and Micros Switch Test

USER MANUAL
DIAGNOSTICS
8
NEOFOLD S
VERSION: NLF_PB-S-2015-1S-GB
40

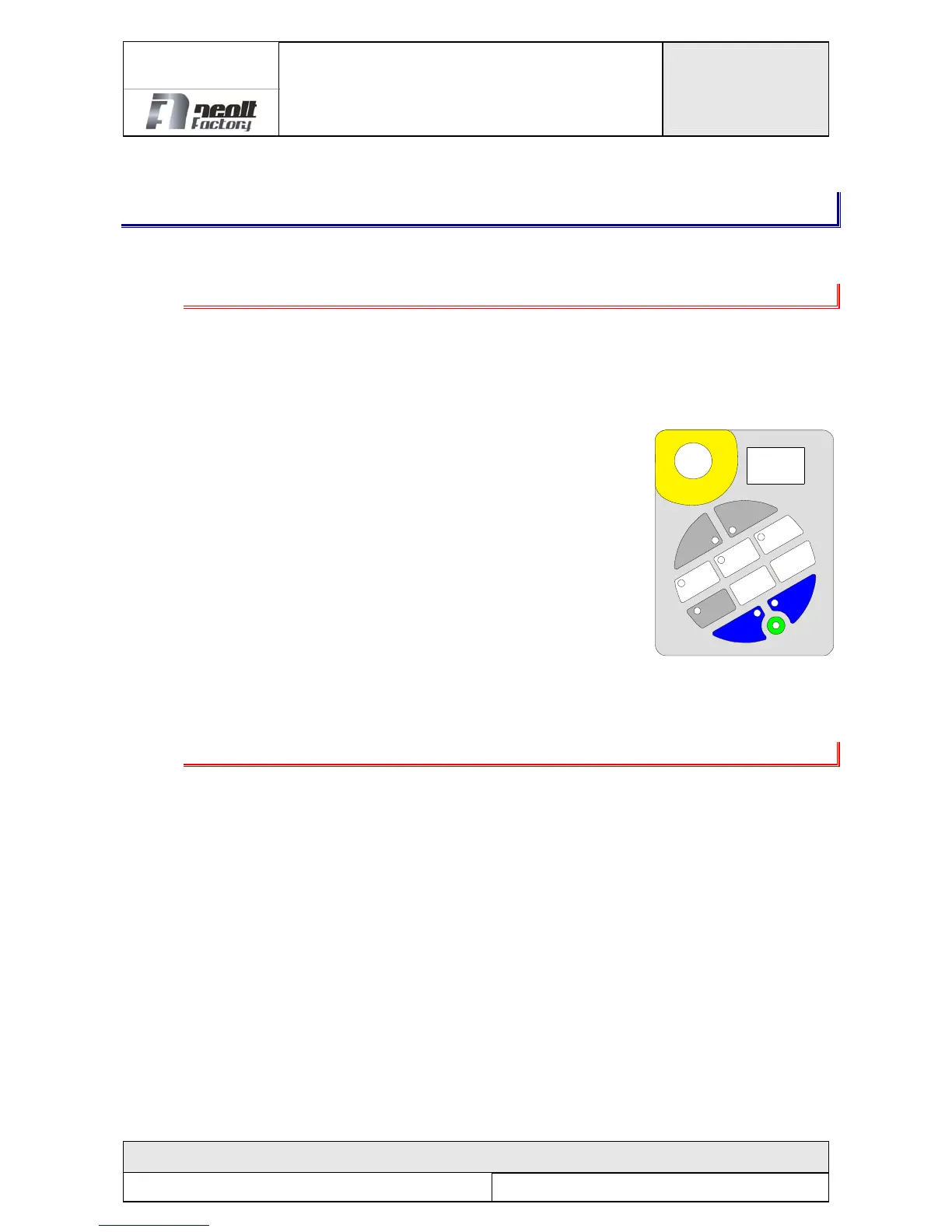

Operating test description 8.2
Folding-machine functional test 8.2.1
Keep key
10 pressed and switch on the machine.
 The display shows the version of EPROM and the LEDs corresponding to keys
3,
2 and 10 lighten.
17 tests are available:
 test 1 ÷ 8 sensors and micro switches;
 test 9 ÷ 13 clutches;
 test 14 fan;
 test 15 and 16 motor;
 test 17 and 18 blade activation time setting.
 To use the tests certain keys have special functions:
9 to increase the number of the;
7 to use the clutch and motor tests;
10 to activate a clutch or the motor.
Sensor and micros switch test (1-8) 8.2.2
 press key
9 until the digit of units shows the number of the test chosen;
 the digit of the tens shows the state of the sensor;
the first digit is either
0 or 1 according to the state of the sensor, its functionality
can be tested by feeding a sheet of paper in or out in front of the sensor or in the
case of the magnetic micros witch of the entrance group, opening and closing the
entrance group itself.
88
2
3
7
9
10
