Neolt Neofold 920 S - Diagnostics; Test Chart and Descriptions

USER MANUAL
DIAGNOSTICS
8
NEOFOLD S
VERSION: NLF_PB-S-2015-1S-GB
38
Operating test chart 8.1
Entrance sensor ( S1 ) 1
Sensor between the blades ( S2 ) 2
Compensation sensor 190 ( S3 ) 3
Compensation sensor 210 ( S4 ) 4
Entrance group micro switch 5
Automatic cross fold sensor 6
Not used 7
Not used 8
Paper feeding roller clutch 9
Paper tongs clutch 10
Paper feed out clutch 11
Blade 1 clutch 12
Blade 2 clutch 13
Fan 14
Step by step motor SLOW RUN 15
Step by step motor nominal speed 16
Clutch odd folding time setting test 17
Clutch even folding time setting test 18

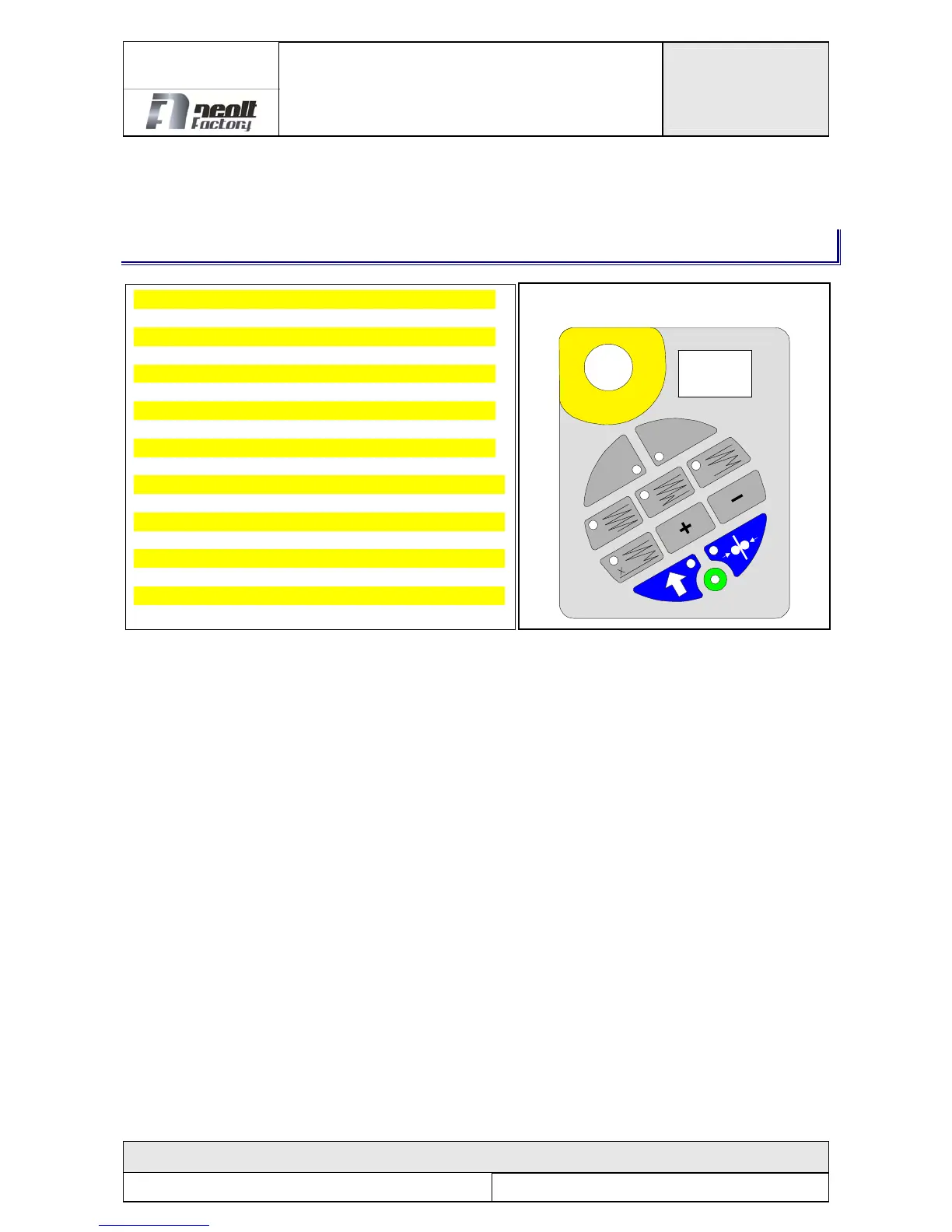

Fig. 8.1 Keyboard
1
9
0
2
1
0
